Connecting the wires to the PowerRouter terminal blocks.
Use 2.5 mm² wires minimal.
1. Turn OFF the main breaker in the main utility breaker box.
2. Connect the AC Grid/Utility ground wire to the AC Grid/Utility terminal
labeled
3. Connect the AC Grid/Utility L wire to the AC Grid/Utility terminal labeled L
4. Connect the AC Grid/Utility N wire to the AC Grid/Utility terminal labeled N
5. Connect the AC Line Out ground wire to the AC Line Out terminal labeled
6. Connect the AC Line Out L wire to the AC Line Out terminal labeled L
7. Connect the AC Line Out N wire to the AC Line Out terminal labeled N
8. Tighten strain reliefs.
Verify that all connections are correctly wired and properly torqued.
(min. 1.2 Nm, max. 1.5 Nm)
AC Grid/Utility
AC Line Out
N
L
L
N
AC Grid/Utility AC Line Out

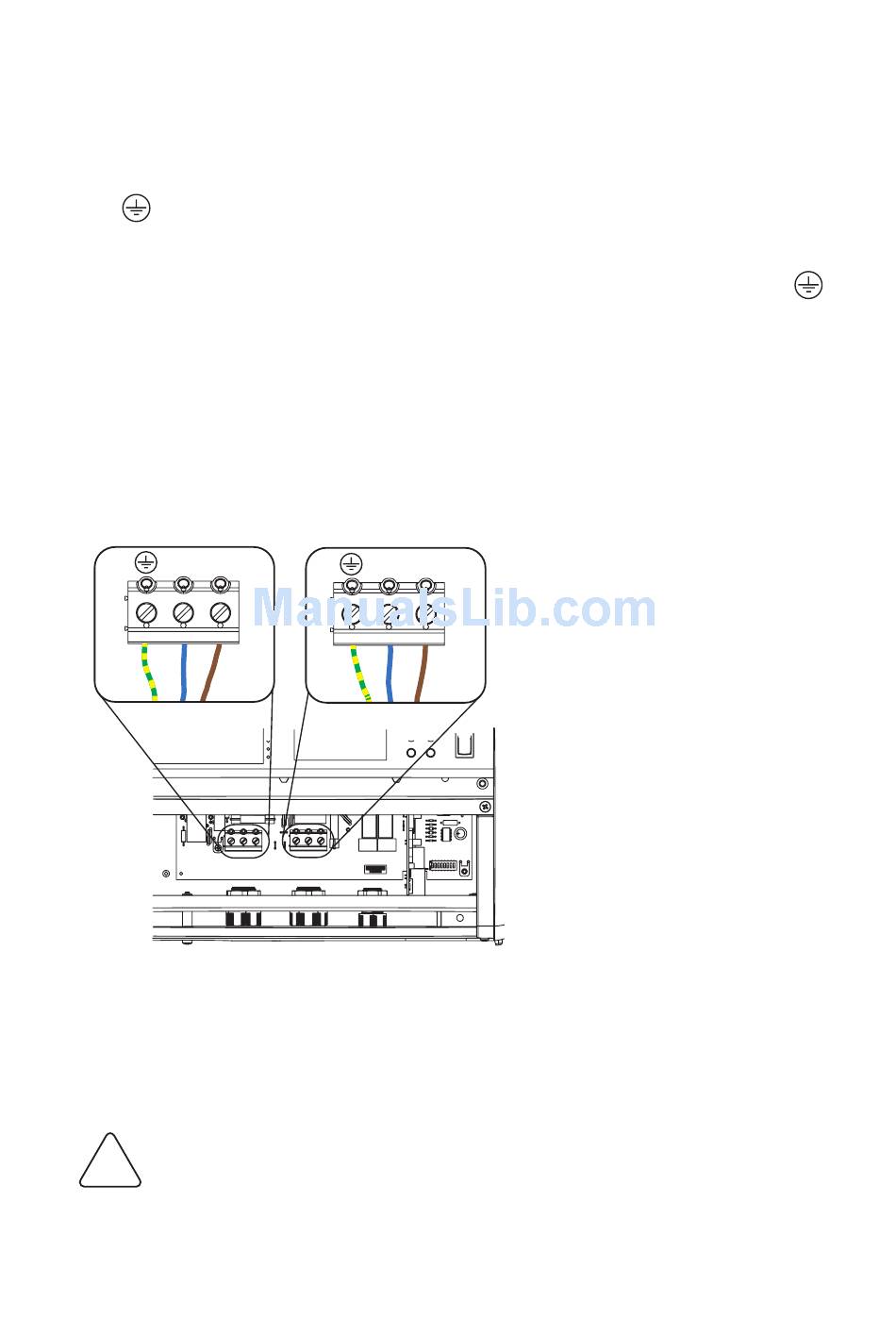

Figure 11 AC Connection terminals
!
Contacts need to be free of any mechanical strain.
caution
