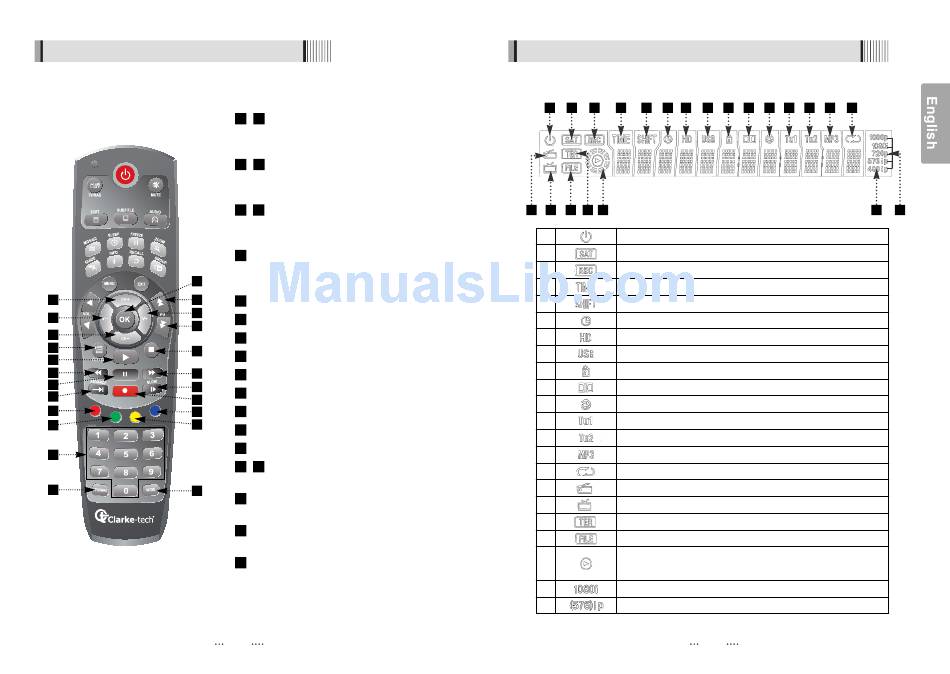

4.3 Remote controller
25
21 19
24
23
20
22
26
28
27
29 31
30
34
32
33
35
38
37
36
39
40
41
- Double arrow Up/Down : To move to the
19 20
next or previous page when many
pages are available.
- Up & Down : To switch channels in non-
21 22
menu mode and move the cursor
up/down in menu mode.
- Left & Right : To change the volume
23 24
level in non-menu mode and modify a
setting in menu mode.
OK : To show the Channel List in non-menu
25
mode and select an item or confirm in
menu mode.
FILELIST : To display the filelist.
26
PLAY : Play Content.
27
STOP : Stop Playback.
28
RWD : Playback in rewind mode.
29
PAUSE : Pause playback.
30
FWD : Playback in forward mode.
31
ADVANCE : Go to live channel.
32
REC : Start recording.
33
SLOW : Playback in slow mode.
34
- Color Key : Select the option such as
35 38
View List, Select Disk, Rename.
Numeric Keys (0-9) : To enter numerical
39
settings (such as channel numbers) directly.
V.FORMAT : To switch the resolution of
40
video output.
Wide : To select a TV aspect ratio with Pan
41
Scan or Letter-Box(4:3) (Full screen or Pillar
box(16:9).
10

4.4 Front Display

1 2 3 4 5 6 7
16 17 19 18 20
1 Indicates Power (On/Off) mode
2 Lights when the signal comes in via satellite dish
3 Lights when the current channel is recording
4 Lights when Time-Shift Mode is set to enable
5 Lights when Time-Shift Mode is set to enable
6 Lights when a timer setting in standby mode
7 Lights when the signal is HD
8 Lights when USB devices is connected
9 Indicates the current channel is set to Lock mode
10 Lights when the current chanel is Dolby audio format
11 Lights when the current sound is set to Off
12 Feature not supported
13 Feature not supported
14 Ligths when Mp3 player is enabled
15 Lights when loop mode is setting in Mp3 player
16 Lights when the current channel is Radio mode
17 Lights when the current channel is TV mode
18 Lights when the signal comes in via TV Antenna
19 Indicates when the current playback mode in file list
20 Lights when Media & Recorded file is playing and revolving on
the outer circle
21 Indicates the resolution of video ouput
22 Indicates the Progressive or interlaced scanning mode
