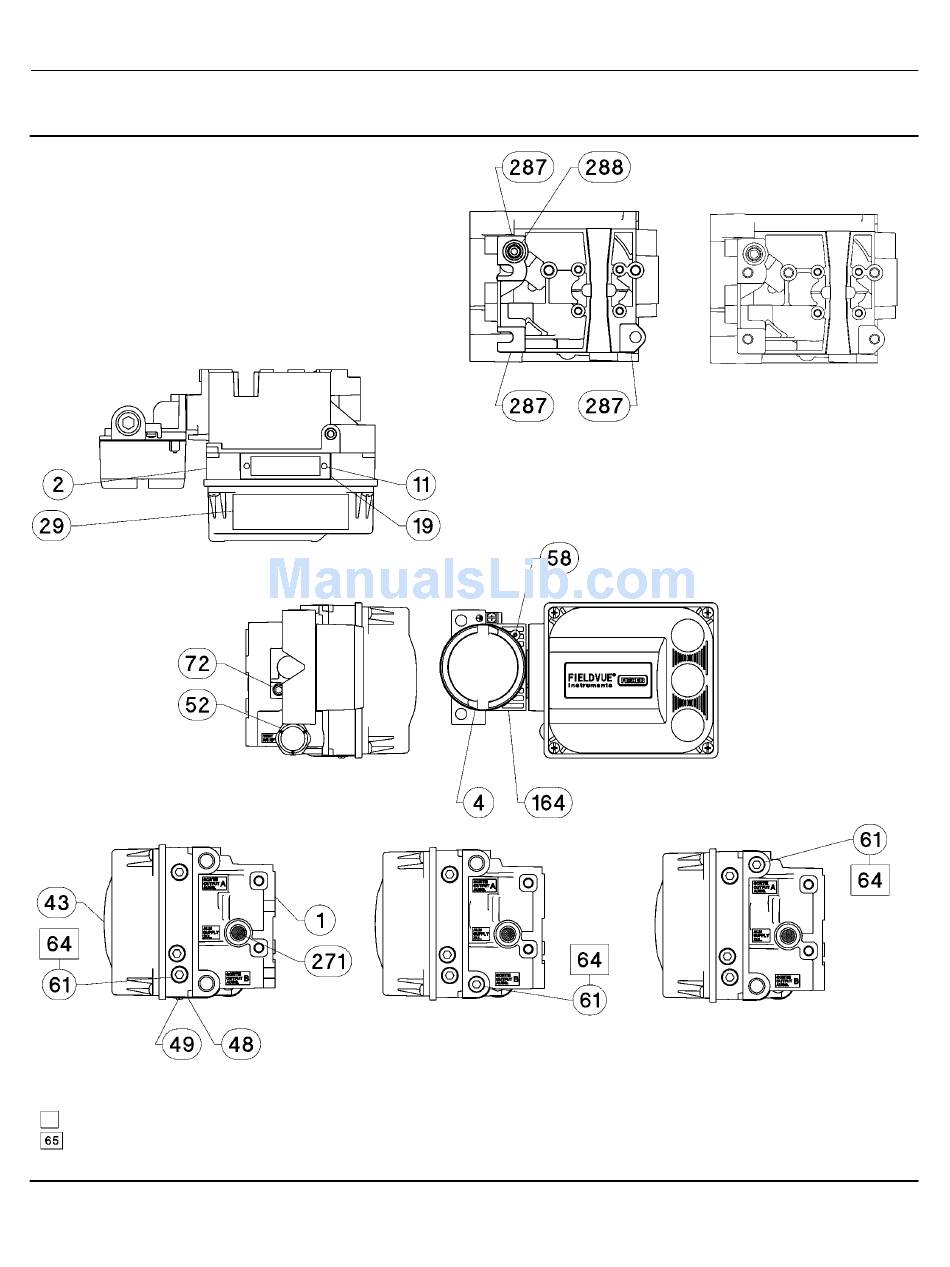

Figure 7‐2. FIELDVUE DVC6200 Digital Valve Controller
Housing Assembly
DOUBLE‐ACTING
APPLY LUBRICANT, SEALANT, OR THREAD LOCK
APPLY LUBRICANT ON ALL O-RINGS UNLESS OTHERWISE SPECIFIED
GE40185 sheet 1 of 3
HOUSING A—BACK VIEW
(USED FOR GX ACTUATOR)
DIRECT‐ACTING
Parts
February 2017
HOUSING B—BACK VIEW
(USED FOR ALL
ACTUATORS EXCEPT GX)
REVERSE‐ACTING
73
