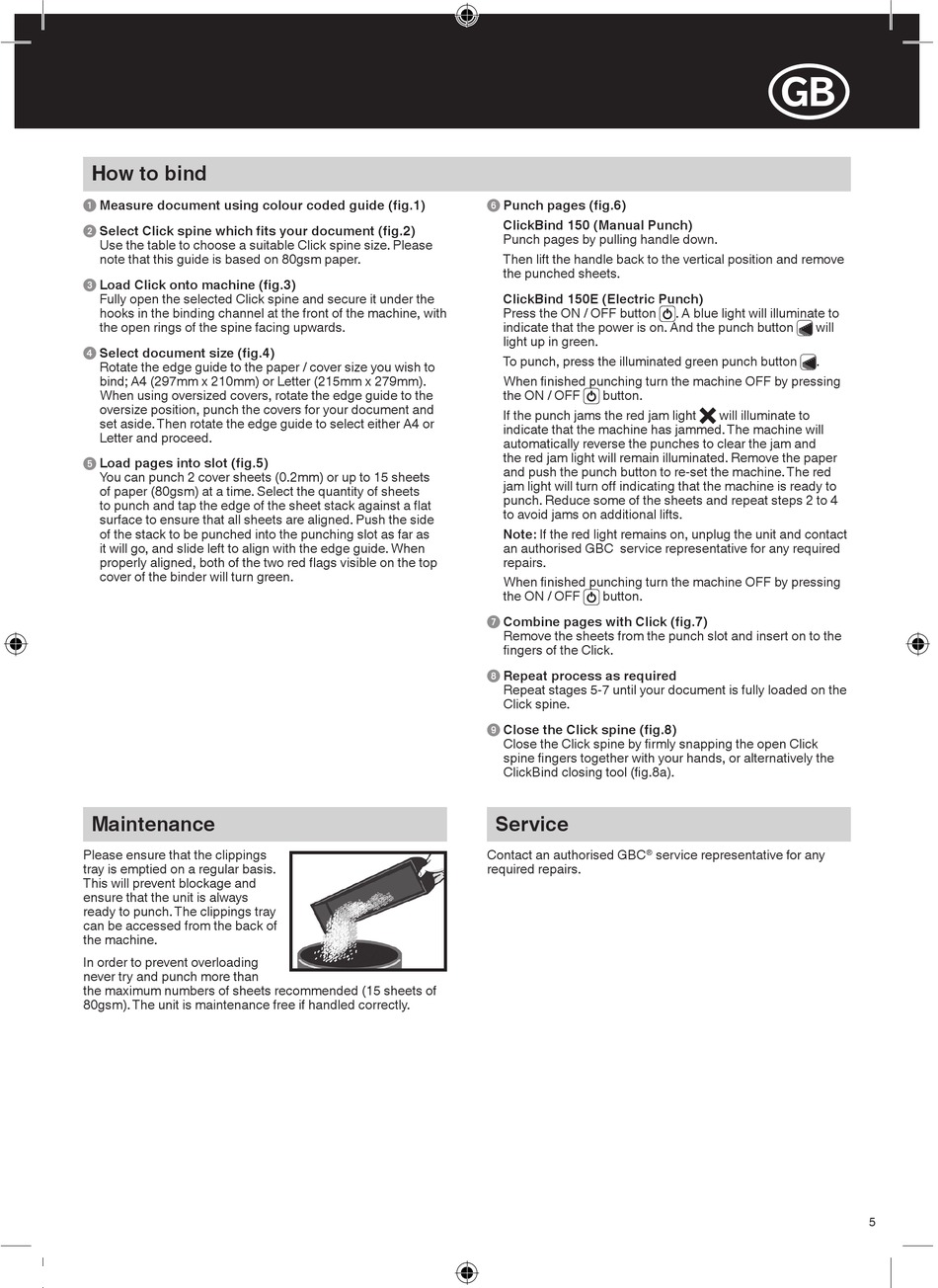

How to bind

Measure document using colour coded guide (fig.1)
1
Select Click spine which fits your document (fig.2)
2
Use the table to choose a suitable Click spine size. Please
note that this guide is based on 80gsm paper.
Load Click onto machine (fig.3)
3
Fully open the selected Click spine and secure it under the
hooks in the binding channel at the front of the machine, with
the open rings of the spine facing upwards.
Select document size (fig.4)
4
Rotate the edge guide to the paper / cover size you wish to
bind; A4 (297mm x 210mm) or Letter (215mm x 279mm).
When using oversized covers, rotate the edge guide to the
oversize position, punch the covers for your document and
set aside. Then rotate the edge guide to select either A4 or
Letter and proceed.
Load pages into slot (fig.5)
5
You can punch 2 cover sheets (0.2mm) or up to 15 sheets
of paper (80gsm) at a time. Select the quantity of sheets
to punch and tap the edge of the sheet stack against a flat
surface to ensure that all sheets are aligned. Push the side
of the stack to be punched into the punching slot as far as
it will go, and slide left to align with the edge guide. When
properly aligned, both of the two red flags visible on the top
cover of the binder will turn green.

Maintenance

Please ensure that the clippings
tray is emptied on a regular basis.
This will prevent blockage and
ensure that the unit is always
ready to punch. The clippings tray
can be accessed from the back of
the machine.
In order to prevent overloading
never try and punch more than
the maximum numbers of sheets recommended (15 sheets of
80gsm). The unit is maintenance free if handled correctly.
Punch pages (fig.6)
6
ClickBind 150 (Manual Punch)
Punch pages by pulling handle down.
Then lift the handle back to the vertical position and remove
the punched sheets.
ClickBind 150E (Electric Punch)
Press the ON / OFF button
indicate that the power is on. And the punch button
light up in green.
To punch, press the illuminated green punch button
When finished punching turn the machine OFF by pressing
the ON / OFF button.
If the punch jams the red jam light
indicate that the machine has jammed. The machine will
automatically reverse the punches to clear the jam and
the red jam light will remain illuminated. Remove the paper
and push the punch button to re-set the machine. The red
jam light will turn off indicating that the machine is ready to
punch. Reduce some of the sheets and repeat steps 2 to 4
to avoid jams on additional lifts.
Note: If the red light remains on, unplug the unit and contact
an authorised GBC service representative for any required
repairs.
When finished punching turn the machine OFF by pressing
the ON / OFF button.
Combine pages with Click (fig.7)
7
Remove the sheets from the punch slot and insert on to the
fingers of the Click.
Repeat process as required
8
Repeat stages 5-7 until your document is fully loaded on the
Click spine.
Close the Click spine (fig.8)
9
Close the Click spine by firmly snapping the open Click
spine fingers together with your hands, or alternatively the
ClickBind closing tool (fig.8a).
Service
Contact an authorised GBC service representative for any
®
required repairs.
G
. A blue light will illuminate to
will
.
will illuminate to
