2.5.

Connectors

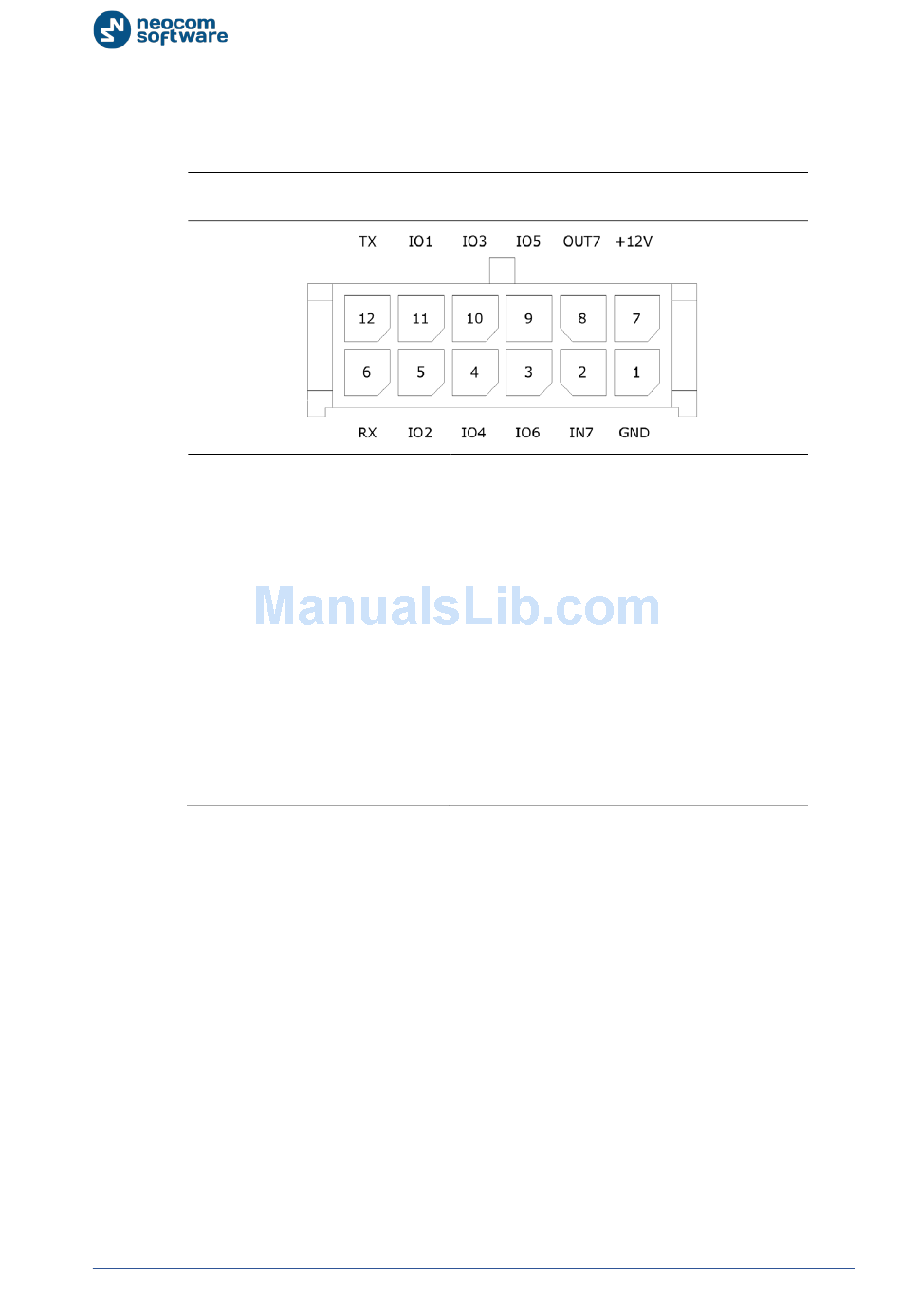

Table 2: Connector pinouts
1. Power (GND)
2. Input (IN7)
3. Input/output (IO6)
4. Input/output (IO4)
5. Input/output (IO2)
6. UART input, 5V (RX)
5
I/O connector
7. Power (+12V)
8. Output (OUT7)
9. Input/output (IO5)
10. Input/output (IO3)
11. Input/output (IO1)
12. UART output, 5V (TX)
About Swift A200
TRBOnet Swift A200 — User Manual
