Setup and Connection
3.5.

Connecting the Radio and the LAN

When all configuration settings have been updated, connect your Swift A200 to the
local IP network. The LAN port is located on the rear panel of Swift A200.
If the radio and Swift A200 have identical NRF settings (data transfer rate and
channel), the wireless connection is established automatically as soon as both
devices are powered up.
For the wired connection between the radio and Swift A200, use the USB cable
supplied with Swift A200. Connect the cable to the RADIO (USB) connector on the
rear panel of Swift A200 and to the accessory connector of the radio.
IMPORTANT: Before connecting Swift A200 to a MOTOTRBO two-way radio, power off the
radio and make sure that Swift A200 is disconnected from the power supply.
3.6.

Connecting Swift A200 to Power Supply

Connect Swift A200 to the source of +12V DC (recommended) or to an AC power
supply.

3.6.1. DC Power Supply

To power Swift A200 from a DC power source, use the Micro-Fit connector supplied
in the delivery kit. The Micro-Fit plug and the wires are connected as follows: the
red wire links contact 7 (+12V) and the black wire links contact 1 (GND).
TRBOnet Swift A200 — User Manual

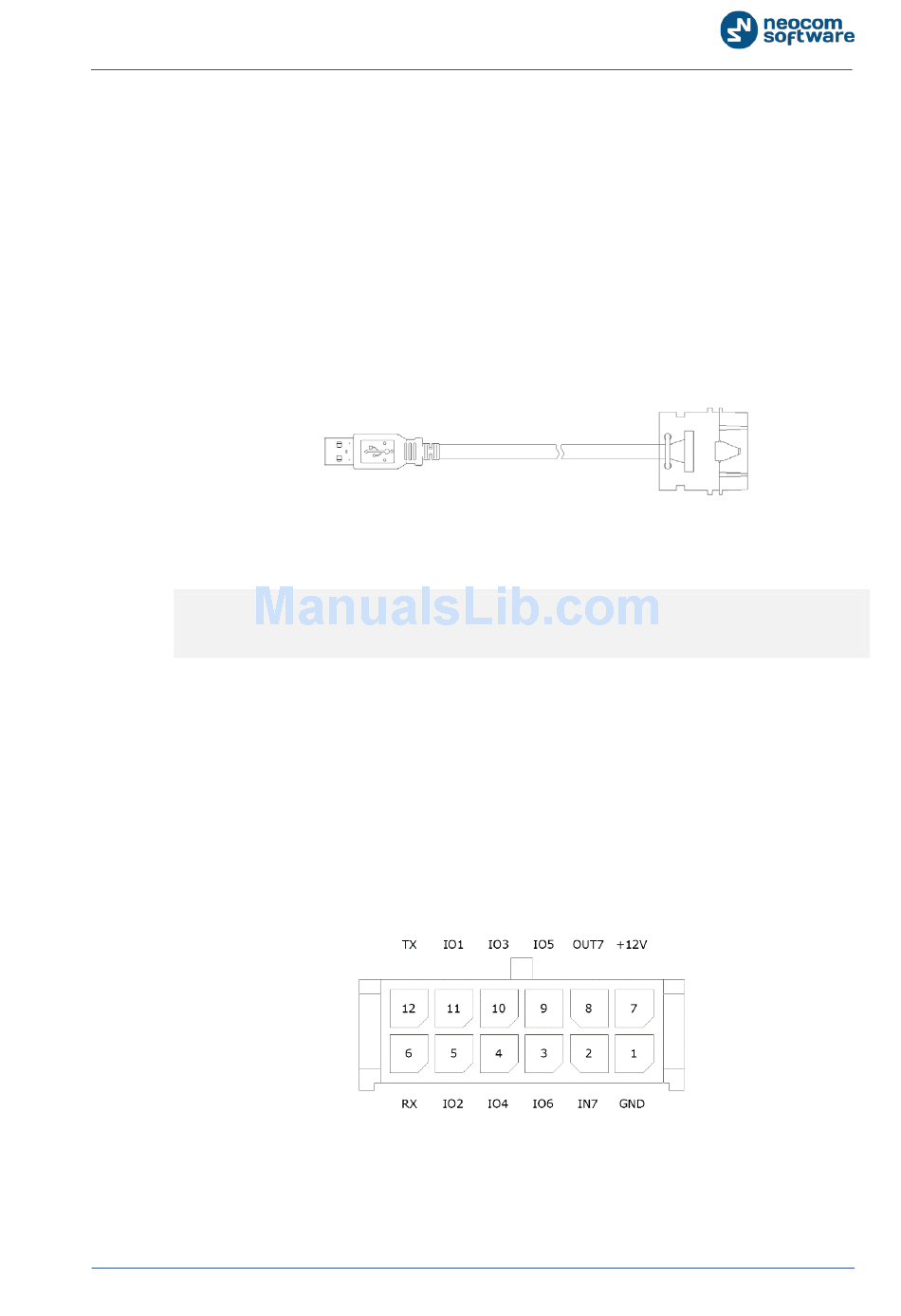

Figure 8: The radio cable is supplied in the delivery kit
Figure 9: Micro-Fit contact positions
14
