TRBOnet Swift A200 User Manual page 12

4. To update the firmware of your Swift A200, click Update Device Firmware on the
Device menu. In the Firmware update window, select your device and point the
latest firmware version. Click Update.
5. To open the configuration of your Swift A200, click Read on the Device menu. In
the Select device window, point your device. The configuration settings appear
in a separate tab.
6. Click Network Settings in the left pane.

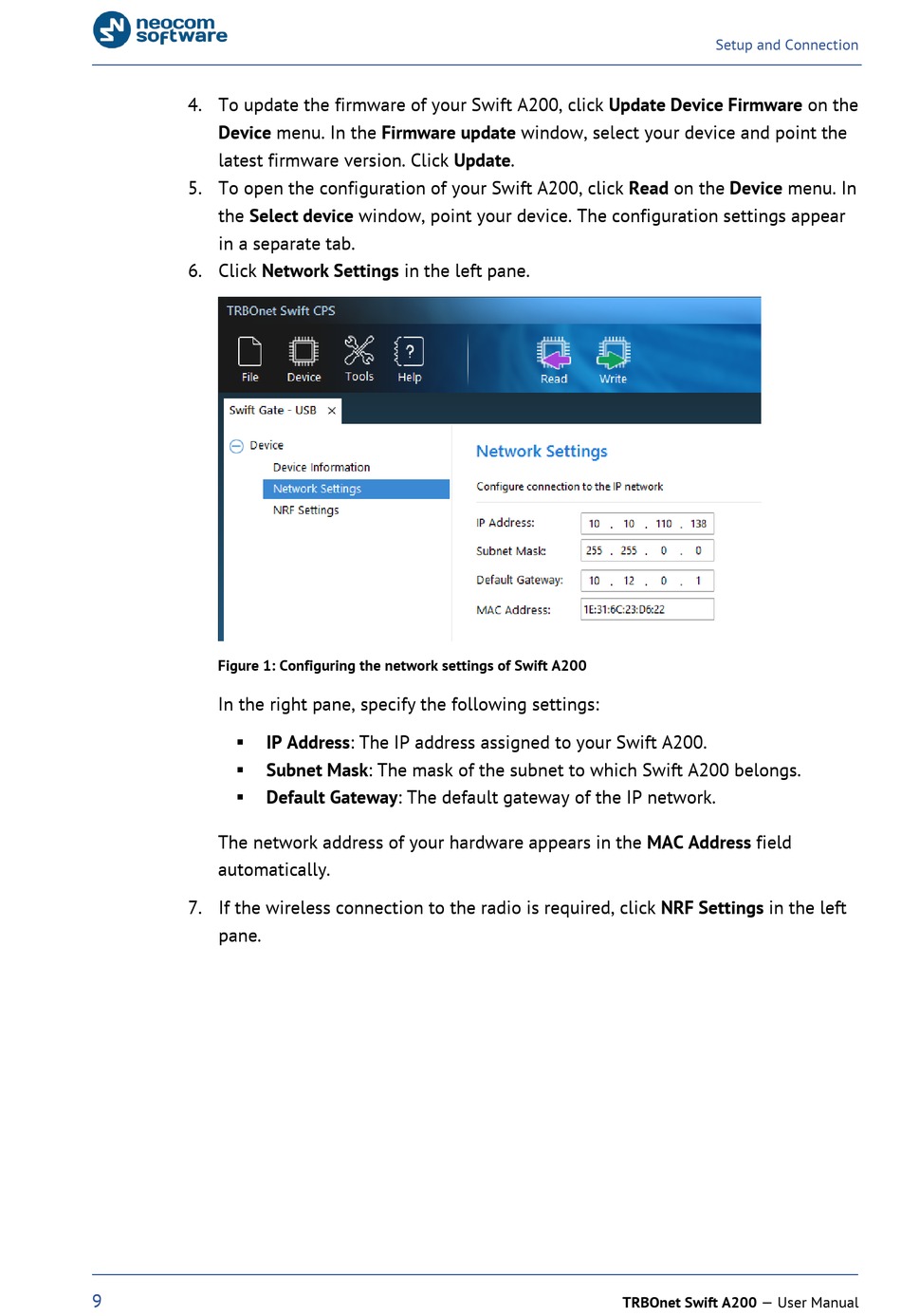

Figure 1: Configuring the network settings of Swift A200
In the right pane, specify the following settings:



The network address of your hardware appears in the MAC Address field
automatically.
7. If the wireless connection to the radio is required, click NRF Settings in the left
pane.
9
IP Address: The IP address assigned to your Swift A200.
Subnet Mask: The mask of the subnet to which Swift A200 belongs.
Default Gateway: The default gateway of the IP network.
Setup and Connection
TRBOnet Swift A200 — User Manual
