Replacing the RTC Battery
1. Secure the RTC battery to the bottom of the mainboard using self adhesive tape.
2. Connect the RTC battery cable to the mainboard.
3-52
Downloaded from
www.Manualslib.com

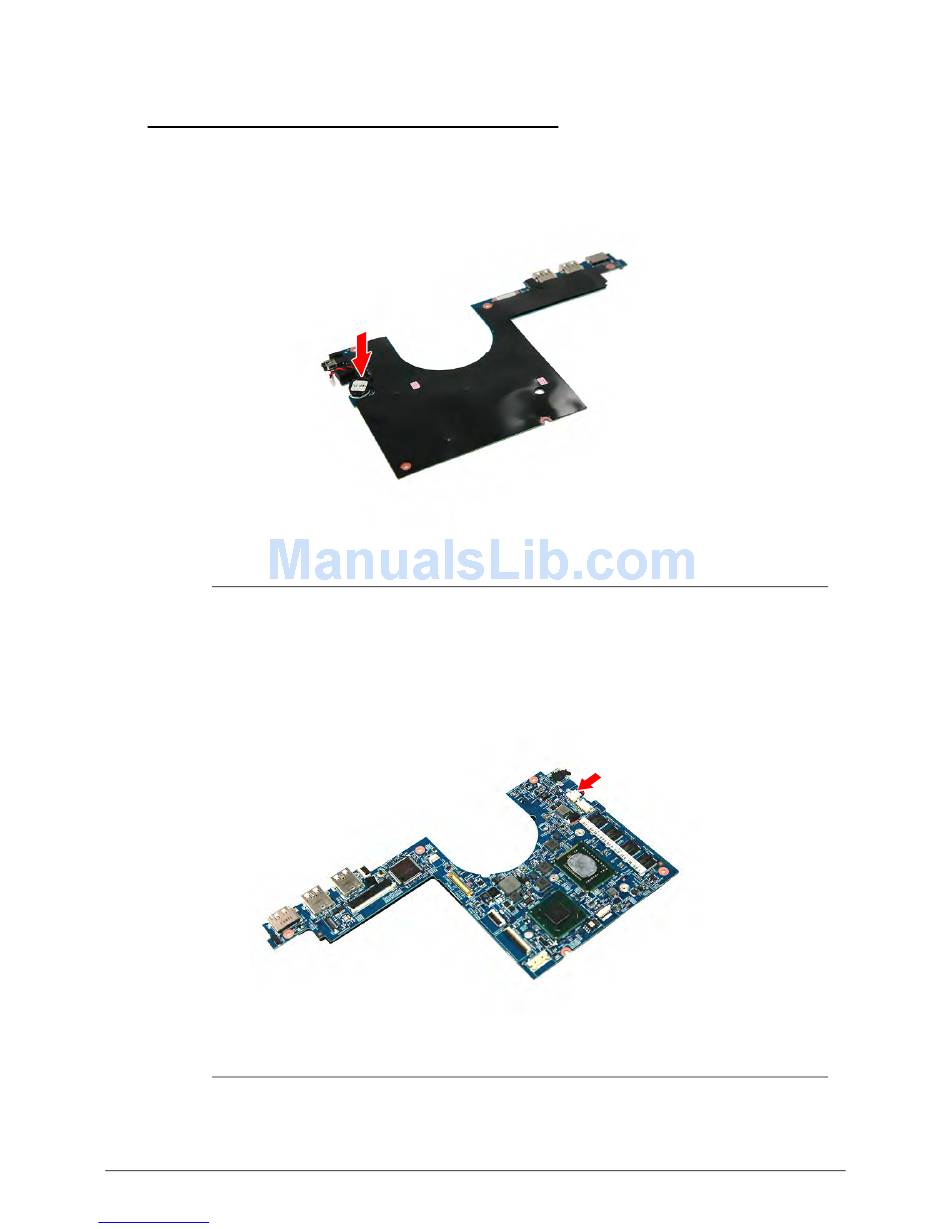

Figure 3-83. RTC Battery
Figure 3-84. RTC Battery Cable
