Acer Aspire S3 MS2346 Service Manual page 103

3. Secure the keyboard to the upper case using adhesive tape.
4. Fix the LCD cable to the upper case.
+
IMPORTANT:
Machine Maintenance
Downloaded from www.Manualslib.com

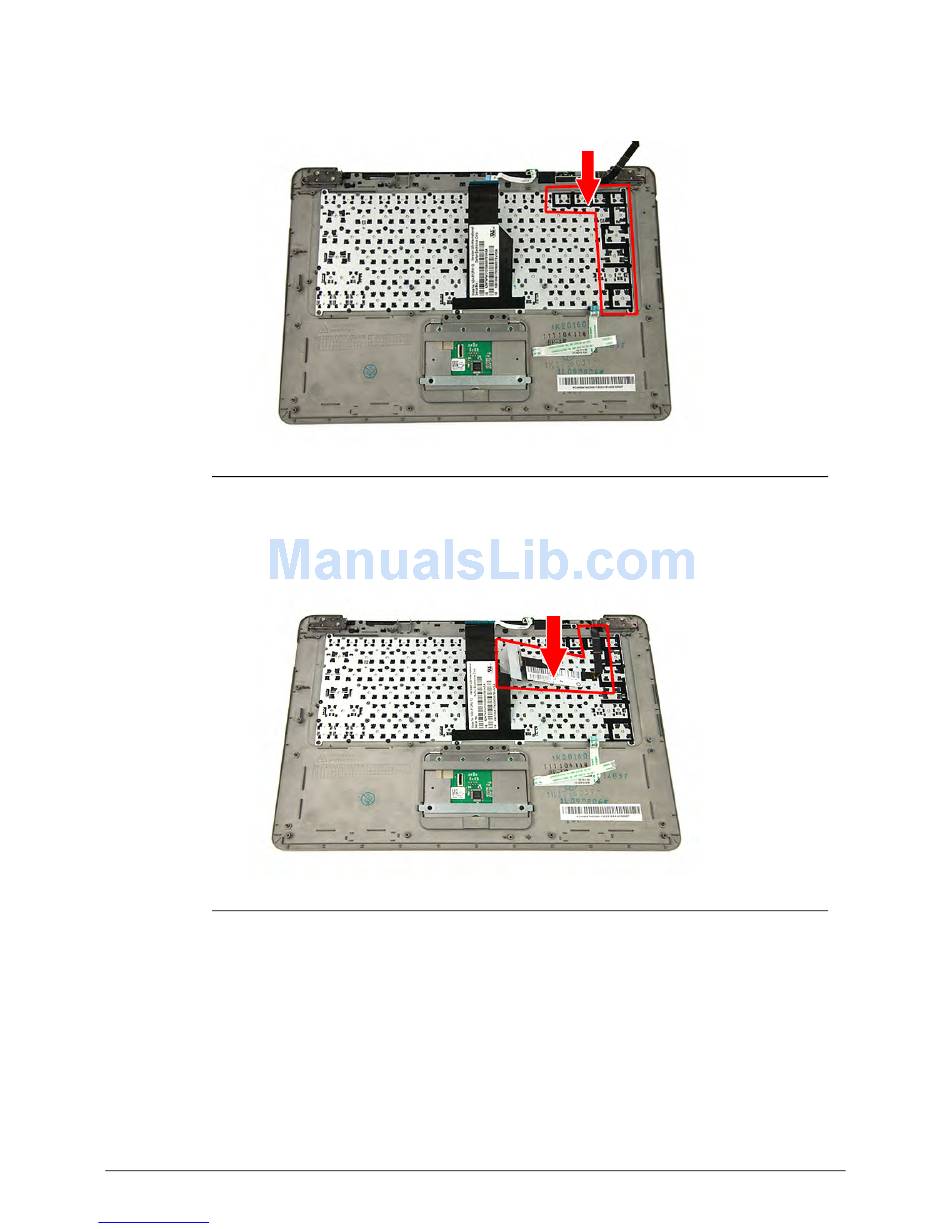

Figure 3-77. Keyboard
Figure 3-78. LCD Cable
Make sure that the LCD cable is installed as highlighted in
avoid damaging the LCD cable.
manuals search engine
Figure 3-78 to
3-49
