Acer Aspire S3 MS2346 Service Manual page 78

7. Detach the cable from the SSD module.
8. Remove the four screws securing the SSD module to the bracket (1) then detach the SSD
module from the bracket (2).
Table 3-33. Screws
SSD Bracket Disassembly
3-24
Downloaded from www.Manualslib.com

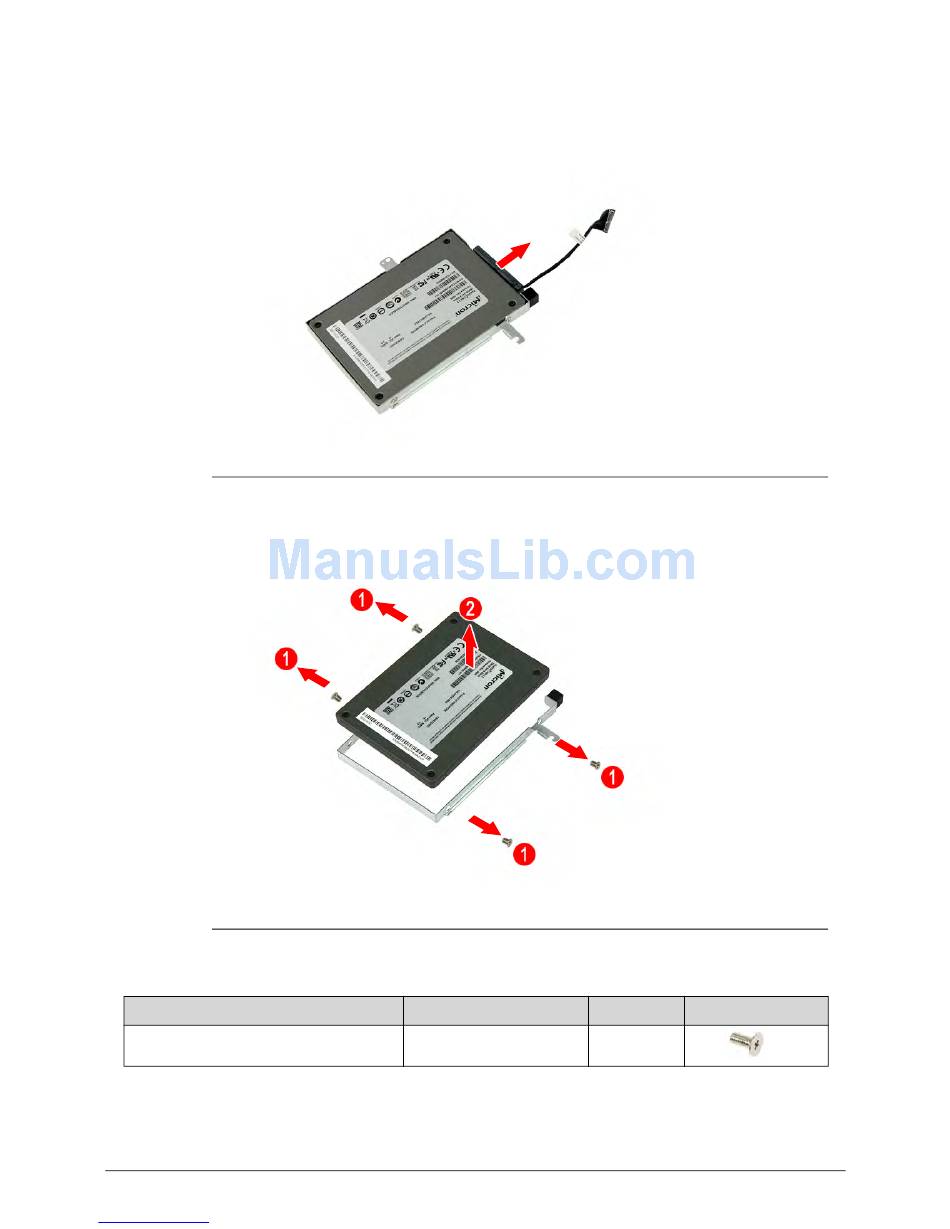

Figure 3-32. SSD Cable
Figure 3-33. SSD Bracket Screws
Step
manuals search engine
Screw
M3 x L4
Quantity Screw Type
4
