Installation - Danfoss SET3M Installation & User's Instructions

Installation

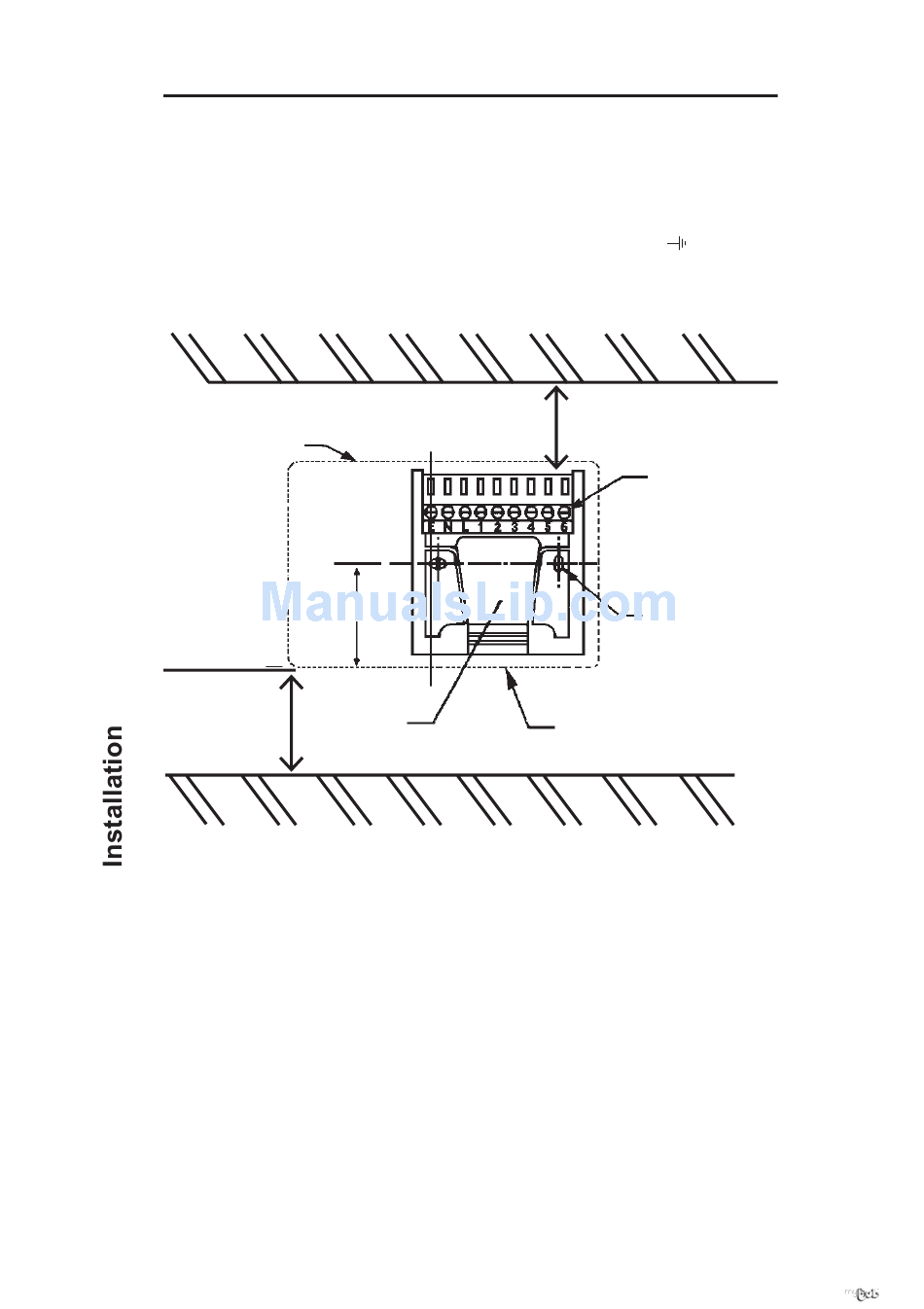

1. Fix the wallplate to the wall or fl ush mounted box as
required. The connections are at the top and the
vertical centre line of the unit, at the position shown on
the diagram below C/L (in line with terminal
Outline of
programmer
Leave at
least 25mm
below
product
2. Surface cables can only enter from below the unit. If
mounted on a fl ush mounted box, cables can enter
from the rear through the aperture in the wallplate.
3. For mains voltage applications a link must be fi tted
between terminals L, 2 and 5.
4. Whilst the unit does not require an Earth connection,
a terminal is provided on the wallplate for Earth
continuity purposes.
4
For latest prices and delivery to your door visit MyTub Ltd - 0845 303 8383 - www.mytub.co.uk - info@mytub.co.uk
C/L
Rear entry
cable access
)
Leave suffi cient space
for screwdriver access
Terminal
block
Wall or
plasterbox
fi xing
Cable aperture
knockouts
