Extended Overhead Analysis
1.2

The "Byte Capture" dialog

Control recording
Fig. O-2
1.2.1

Setting the trigger conditions

The event that triggers the recording is set from the 'Source' list box:
Setting
Manual
Compare
Compare not
AU-AIS
AU-LOP
MS-RDI
MS-AIS
N1/N2-TCM
Table O-1
O-2
Export, print results

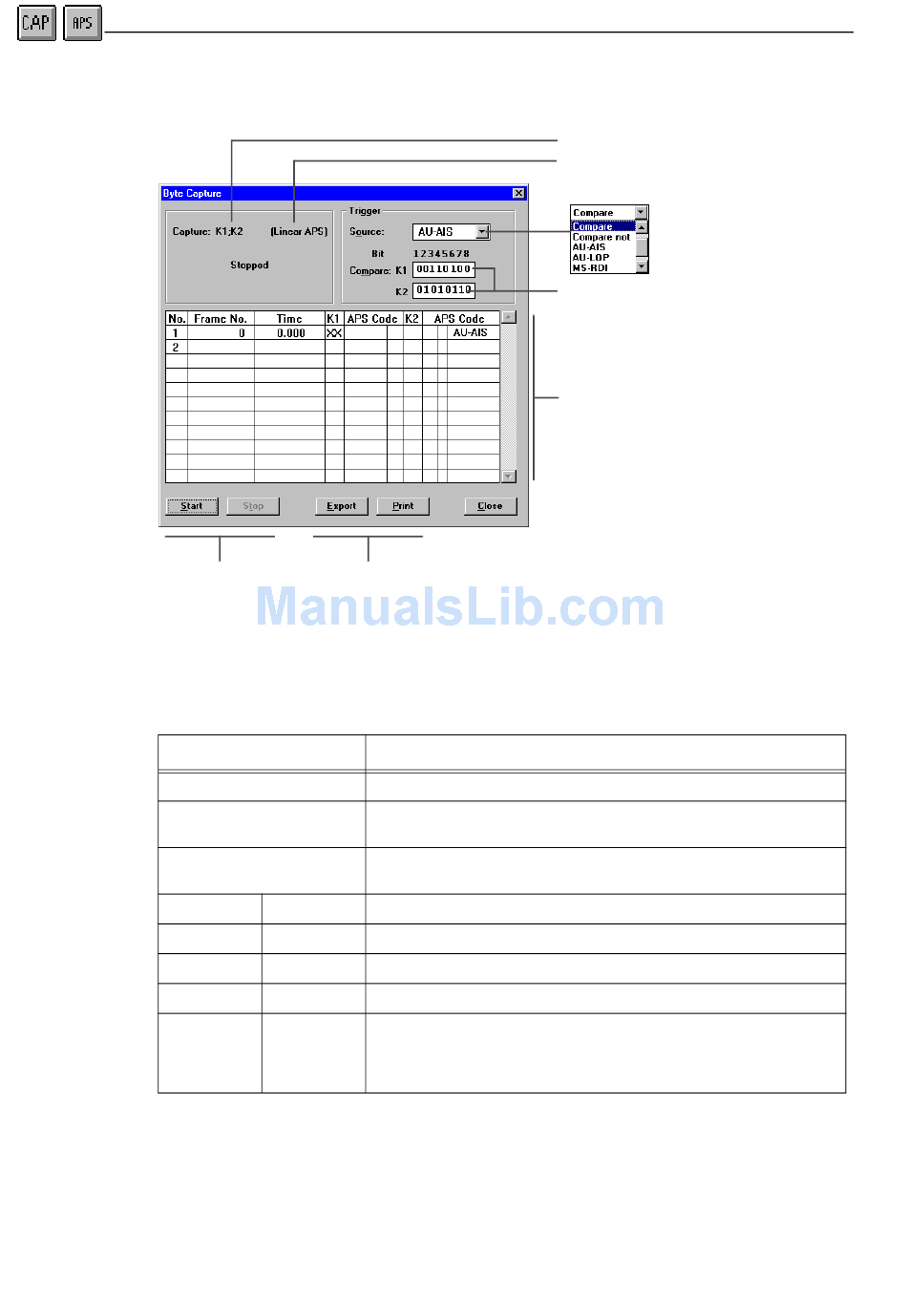

"Byte Capture" dialog of the "Overhead Analyzer" window
Start condition
Immediately after START.
The content of the selected byte must agree with the compare value.
Don't care values can be set with 'X'.
Inverse of the Compare condition. The record starts when the value no
longer agrees with the compare value.
AIS-P Start when AU-AIS or AIS-P occurs.
LOP-P Start when AU-LOP or LOP-P occurs.
RDI-L Start when MS-RDI or RDI-L occurs.
AIS-L Start when MS-AIS or AIS-L occurs.
N1/Z6-TCM Starts recording TCM frames when the TCM FAS word has occurred
(Tandem Connection Monitoring).
Requirement: The N1/N2 or N1/Z6 byte is activated for Tandem
Connection Monitoring.
Events available from the "Source" list box
ANT-20/ANT-20E
Selected byte
Selected structure ("Interpreter" dialog)
Trigger source (see table)
"Compare" and
"Compare not" trigger condition
Result list (byte, APS code)
Operation
