Recording further SOH/TOH or POH bytes

⇒ Click the "START" button to prepare to start the recording.
The record starts as soon as the pre-set trigger condition occurs.
The changes in the selected byte are recorded frame by frame with timestamp.
Ending the recording
⇒ Recording stops automatically when the buffer is full (max. 265 items)
– or –
⇒ Click the "STOP" button.
Result display

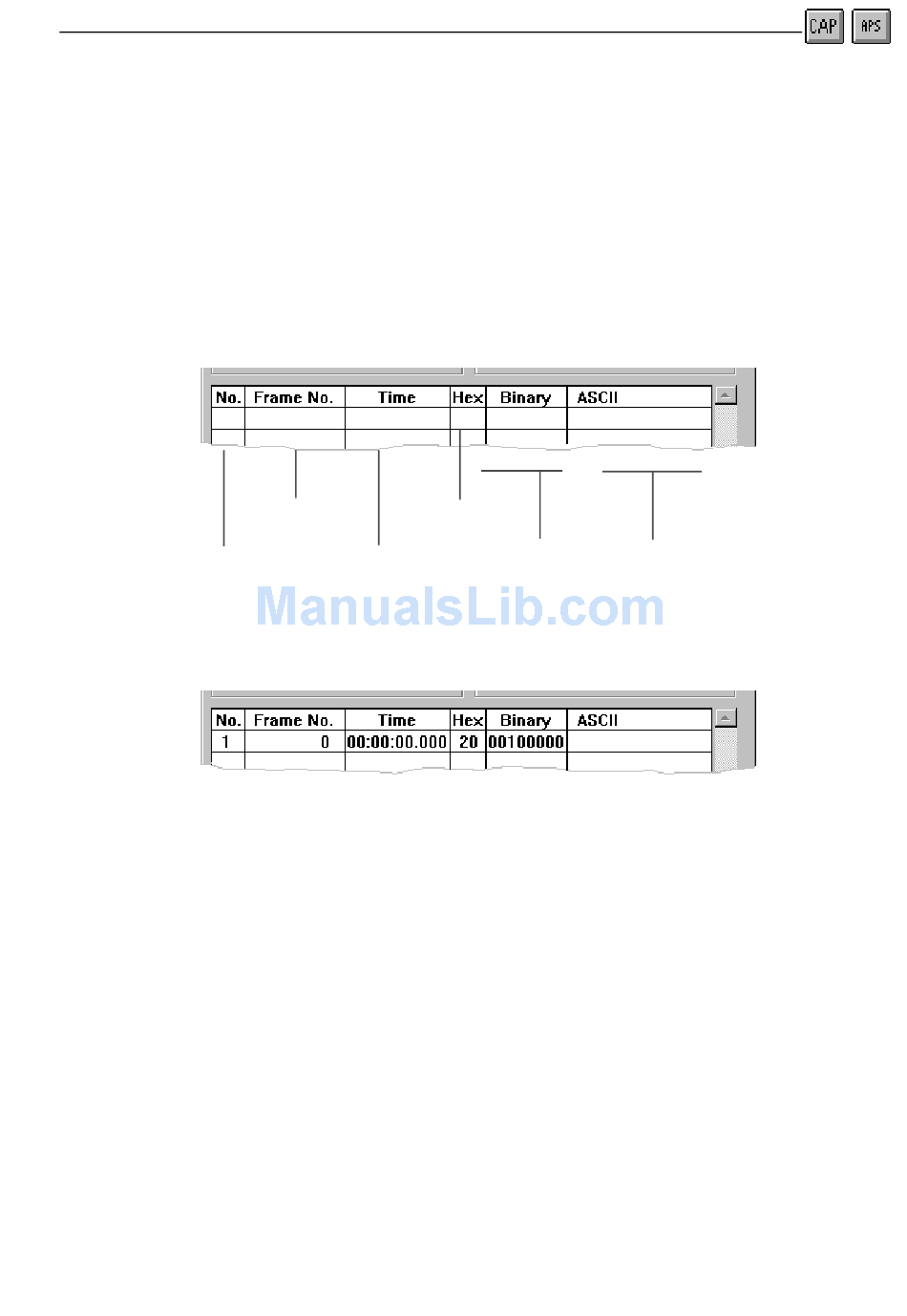

Item no.
Fig. O-7
Example
Fig. O-8
1.3.4

Recording when defects are present

If the defects LOF, LOS and OOF occur, recording is interrupted.
When the defects disappear, recording resumes. The duration of the LOS defect is not
measured with frame accuracy.
Operation
Decimal display
Byte as 2-digit
hexadecimal value
Time in
hh:mm:ss.ms
Byte capture results in "Byte Capture" dialog window
Example result
Extended Overhead Analysis
Binary ASCII character
display
