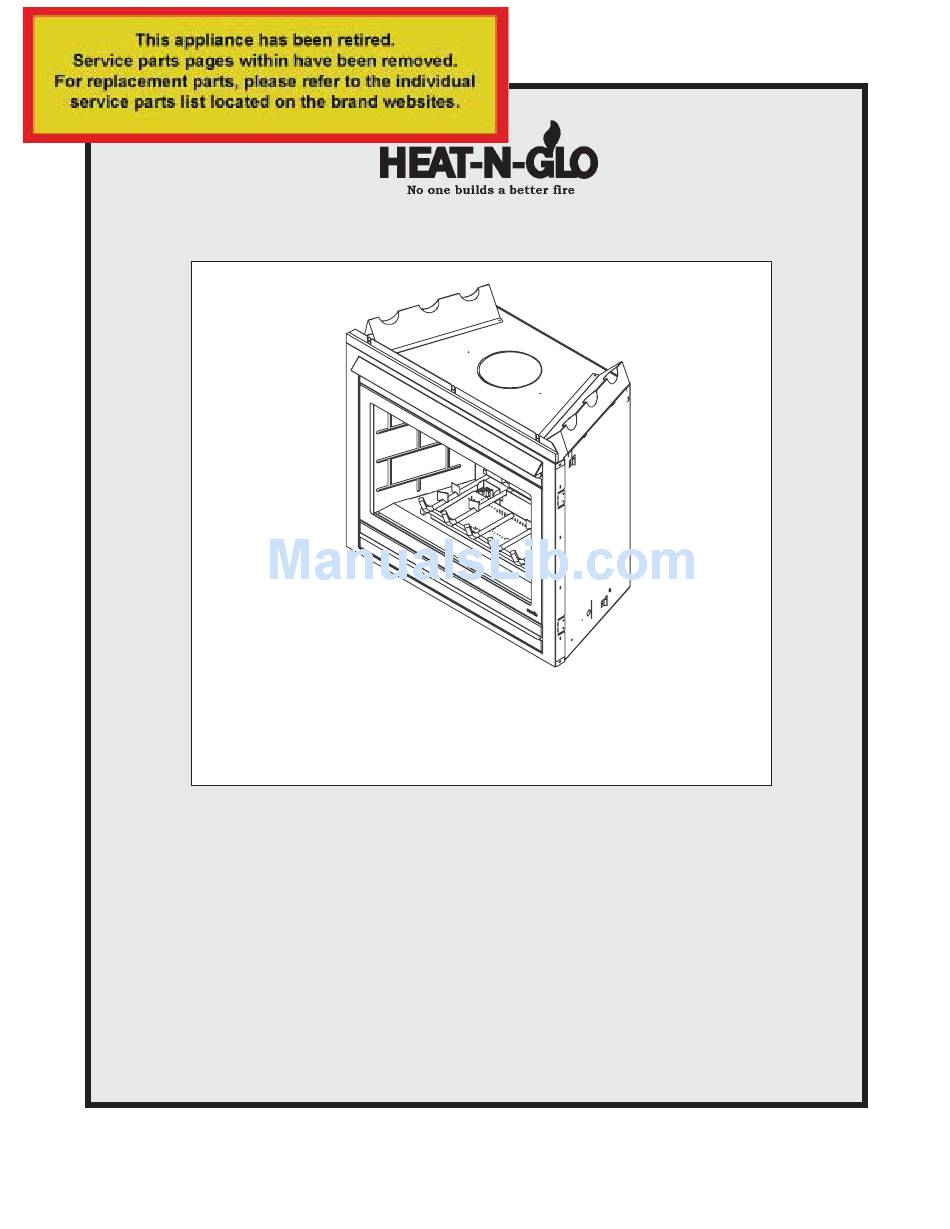

INSTALLATION AND OPERATION INSTRUCTIONS
MODEL: 6000TRS-AU
AUSTRALIAN GAS ASSOCIATION APPROVED
AGA APPROVAL NUMBER 5668
THIS MANUAL MUST BE USED FOR INSTALLATION AND RETAINED
BY HOMEOWNER FOR OPERATION AND MAINTENANCE.
HEAT-N-GLO, a division of Hearth Technologies Inc.
20802 Kensington Boulevard, Lakeville, MN 55044, USA 1-888-427-3973
This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;
4,852,548; 4,875,464; 5,000,162; 5,016,609; 5,076,254 5,191,877; 5,218,953; 5,328,356; 5,429,495; 5,452,708; 5,542,407; 5,613,487; (Australia)
543790;586383; (Canada) 1,123,296; 1,297,746; 2,195,264; (Mexico) 97-0457; (New Zealand) 200265; or other U.S. and foreign patents pending.
1
392-900D 10/02
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Heat-N-Glo 6000TRS-AU
Summary of Contents for Heat-N-Glo 6000TRS-AU
- Page 1 THIS MANUAL MUST BE USED FOR INSTALLATION AND RETAINED BY HOMEOWNER FOR OPERATION AND MAINTENANCE. HEAT-N-GLO, a division of Hearth Technologies Inc. 20802 Kensington Boulevard, Lakeville, MN 55044, USA 1-888-427-3973 This product is covered by one or more of the following patents: (United States) 4,112,913; 4,408,594; 4,422,426; 4,424,792; 4,520,791; 4,793,322;...
- Page 2 INSTALLATION AND OPERATION INSTRUCTIONS PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING THIS APPLIANCE. MODEL 6000TRS-AU The Heat-N-Glo warranty will be voided by, and Heat- IS AUSTRALIAN GAS ASSOCIATION N-Glo disclaims any responsibility for the following APPROVED FOR NATURAL GAS OR PROPANE actions: AS A BALANCED FLUE HEATER.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1.0 INSTALLATION INSTRUCTIONS..............4 1.1 Locating the Heater ..................5 1.2 Framing the Heater..................6 1.3 Flue System Approvals and Installations ............8 1.4 Connecting the Gas Supply................16 1.5 Fan ......................17 1.6 Mantel Clearances ..................18 1.7 Log Placement .................... -
Page 4: Installation Instructions
1.0 INSTALLATION INSTRUCTIONS • Whether optional accessories—devices such as a fan, wall switch, or remote control—are desired. When planning a heater installation, it’s necessary If the heater is to be installed on carpeting or tile, or on to determine: any combustible material other than wood flooring, the •... -
Page 5: Locating The Heater
1.1 Locating the Heater 1”MIN. (25mm) The diagram (See figure 2) shows space and clearance requirements for locating a heater within a room. Clearance Requirements The top, back, and sides of the heater are defined by stand-offs. The minimum clearance to a perpendicular wall extending past the face of the heater is one inch (25 mm). -
Page 6: Framing The Heater
Minimum Clearances from the Flue Pipe to Combustible Materials For Vertical For Horizontal Sections Sections At Wall Firestops Bottom Sides Bottom Sides 3 inches 1 inch 1 inch 1 inch 2-1/2 inches 1/2 inch 1 inch (75 mm) (25 mm) (25 mm) (25 mm) (63.7 mm) - Page 7 T = Flue terminal M = Gas meter Shading indicates prohibited I = Mechanical air inlet P = Electricity meter or fuse box areas for flue terminals Below eaves, balconies or other projections: MIN. CLEARANCE (mm) Appliances up to 50 MJ/h input ................... 300 Appliances over 50 MJ/h input ....................
-
Page 8: Flue System Approvals And Installations
Figures 7 through 14 and their corresponding tables show examples of vent configurations using elbows. MODEL FLUE TERMINATION APPROVALS The relationships of vertical rise to horizontal run in 6000TRS-AU DVK-01DA, DVK-TVCD vent configurations using elbows MUST be strictly ad- DVK-01TRD hered to. - Page 9 1´ MIN. (305 mm) 2´ MAX. (610 mm) 2´ MIN. (610 mm) 4´ MAX. (1.22 M) MIN. RUN MAX. RUN 3´ MIN. (914 mm) 6´ MAX. (1.86 M) 4´ MIN. (1.22 M) 8´ MAX. (2.48 M) 13.1" (331mm) 24" (610mm) 24´...
- Page 10 V FT.) H (FT.) (FT.) 1' MIN. (350mm) 2' MAX. (610mm) 4' MAX. (1.22m) 2' MIN. (610mm) 2' MAX. (610mm) 8' MAX. (2.48m) 3' MIN. (914mm) 4' MAX. (1.22m) 12' MAX. (3.72m) 4' MIN. (1.22m) 6' MAX. (1.8m) 16' MAX. (4.9m) 20' MAX.
- Page 11 FLUEING WITH THREE (3) 90° ELBOWS H + H 1´ MIN. (305 mm) 2´ MAX. (610 mm) 4´ MAX. (1.22 m) 2´ MIN. (610 mm) 4´ MAX. (1.22 m) 8´ MAX. (2.48 m) 3´ MIN. (914 mm) 6´ MAX. (1.86 m) 12´...
- Page 12 VENTING WITH THREE (3) 90° ELBOWS V (FT.) H + H (FT.) 1' MIN. (305mm) 4' MAX. (1.22m) 2' MIN. (610mm) 8' MAX. (2.4m) 3' MIN. (914mm) 12' MAX. (3.7m) 4' MIN. (1.22m) 16' MAX. (4.9m) NOTE: H + H = 16' MAX.
- Page 13 Installing Flue Components WARNING: ENSURE THAT THE FIBER-GLASS ROPE GASKET SUPPLIED WITH THE HEATER SEALS 1. Attach the First Flue Component to the BETWEEN THE FIRST FLUE COMPONENT AND Starting Collars THE OUTER HEATER WRAP. To attach the first flue component to the starting collars 2.
- Page 14 For Vertical Runs • Position the firestops on both sides of the hole pre- viously cut and secure the firestops with nails or The flue system must be supported every eight (8) feet screws. (2.4 M) above the heater flue outlet by wall brackets. •...
- Page 15 • Drill a hole or drive a nail through this center point. NAILS (4 REQUIRED) • Check the floor above for any obstructions, such as wiring or plumbing runs. • Reposition the heater and flue system, if necessary, to accommodate the ceiling joists and/or obstruc- tions.
-
Page 16: Connecting The Gas Supply
ROUND CAP TERMINATION 1” (25mm) 7 1/2” (191mm) MINIMUM GAS LINE ACCESS FIGURE 21. Round Termination Caps For Vertical Terminations - To locate the flue and install the flue sections: • Locate and mark the flue center point on the under- FIGURE 22. -
Page 17: Fan
JUNCTION BOX NOTE: IF ANY OF THE ORIGINAL WIRE AS SUPPLIED WITH THE APPLIANCE MUST BE REPLACED, IT MUST BE REPLACED WITH TYPE FAN SPEED • C RATED WIRE. CONTROL TEMPERATURE SENSOR SWITCH SPEED CONTROL FAN WIRING DIAGRAM TEMP. SENSOR SWITCH BLUE BLUE... -
Page 18: Mantel Clearances
1.6 MANTEL CLEARANCES FINISH WALL MATERIAL MAY BE Clearance to a mantelpiece is 12-inches (305mm). See COMBUSTIBLE - TOP AND SIDES Figure 25. NON-COMBUSTIBLE BOARD TOP FRONT EDGE OF FIREPLACE NOTE: ALL DIMENSIONS ARE SHOWN IN MILLIMETERS FIGURE 26. FIGURE 25. IF JOINTS BETWEEN THE FINISHED WALLS AND THE FIREPLACE SURROUND (TOP AND SIDES) ARE SEALED, A 150°... -
Page 19: Log Placement
Log Assembly: LOG-6TRS-AU 1.7 LOG PLACEMENT INSTRUCTIONS Carefully remove the logs from the packaging. CAUTION: Logs are fragile! LOG #1 (SRV382-701): Locate log #1 on grate with knotches and push log towards rear of firebox. LOG #2 (SRV382-702): Locate log #2 on grate with knotches. Slide left end of log forward and right side back against tab. - Page 20 LOG #4 (SRV675-723): Place log #4 between log #2 and grate tab. Rest the right end on top of log #2. LOG #5 (SRV382-705): Place bottom of log #5 between the 4th and 5th grate bars rest the top onto log #1. LOG #6 (SRV438-724): Place the "Y"...
-
Page 21: Installer Testing
1.8 INSTALLER TESTING The space heater must be tested and be operating ac- cording to manufacturers specifications prior to the in- staller leaving the site. Note: the tips of the flames should never hit the top of the firebox after the unit has warmed up. -
Page 22: Operating Cautions
3\16" PIGGYBACK BLACK S2 THERMOCOUPLE CONNECTOR REMOTE SWITCH PIGTAIL ON/OFF WHITE T2 SWITCH RED T1 GAS VALVE THERMOPILE BLACK S1 OPTIONAL WALL SWITCH, THERMOSTAT OR REMOTE FIGURE 29. OPERATING CAUTIONS • THIS APPLIANCE MAY EXHIBIT A SLIGHT CAR- • DO NOT USE THIS APPLIANCE IF ANY PART BON DEPOSITION. -
Page 23: Safety And Lighting Information
contact your dealer or a qualified service person to re- 2.1 SAFETY & LIGHTING INFORMATION place the injector or adjust the valve. Follow Section 2.2 SAFETY INFORMATION and 2.3 NOTE: THE TIPS OF THE FLAMES SHOULD NEVER LIGHTING INSTRUCTIONS to light the appliance. HIT THE TOP OF THE FIREBOX. -
Page 24: Lighting Instructions
LIGHTING INSTRUCTIONS LIGHTING INSTRUCTIONS 1. "STOP!" Read the safety information on previous THERMOPILE PILOT BURNER page. 2. To access controls, rotate the bottom grille down. 3. Turn the valve control knob to the "OFF" position. 6. To put the control in the pilot position, turn the To do this, you must turn the knob clockwise control knob counter-clockwise to the... -
Page 25: Fan Operation
2.4 FAN OPERATION Visually inspect the pilot periodically. Brush or blow The accessory fan is wired in series with a speed con- away any dust or linen accumulations. If the pilot ori- trol switch and a temperature sensor switch. Set the fice is plugged, disassembly may be required to re- speed control to an "ON"... -
Page 26: Removal Of Covers For Servicing
REMOVAL OF COVERS FOR • Disconnect the electrode wire from the piezo ignitor (found adjacent to the gas control valve). SERVICING • Disconnect the attachment nut from the underside A. Control Compartment Grille of the thermopile. The thermopile can then be sepa- rated from the pilot bracket. -
Page 27: Troubleshooting
TROUBLESHOOTING - 6000TRS-AU With proper installation and maintenance, your new Gas Fireplace should provide years of trouble-free service. If you do experience a problem, refer to the Troubleshooting Guide below. This guide will assist a qualified service person in the diagnosis of problems and the corrective action to be taken. - Page 28 CORRECTIVE ACTION SYMPTOM POSSIBLE CAUSE 3. Check thermopile with millivolt meter. Take reading at “TH- TP&TP” terminals of gas valve. Should read 325 millivolts mini- mum while holding valve knob depressed in pilot position, pilot lit, and on/off switch “OFF”. Re- place faulty thermocouple if read- ing is below specified minimum.
- Page 29 SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION C. Defective valve. 1. Turn valve knob to “ON”. Place ON/OFF switch to “ON”. Check with millivolt meter at thermopile terminals. Millivolt meter should read greater than 100 m.v. If the reading is okay and the burner does not come on, replace the gas valve.
- Page 30 CORRECTIVE ACTION SYMPTOM POSSIBLE CAUSE 1. Tighten corner. E. Glass too loose and air tight gasket leaks in corners after usage. 1. Replace if necessary. F. Bad thermopile 1. Check for proper installation & G. Improper flue cap installation. freedom from debris or blockage. 1.
-
Page 31: Replacement Parts
3. HEAT-N-GLO will replace or repair a defective firebox or heat exchanger, at any time during the 10 years from the date of installation. The decision whether to replace the defective component shall be made at HEAT-N- GLO's sole discretion.
