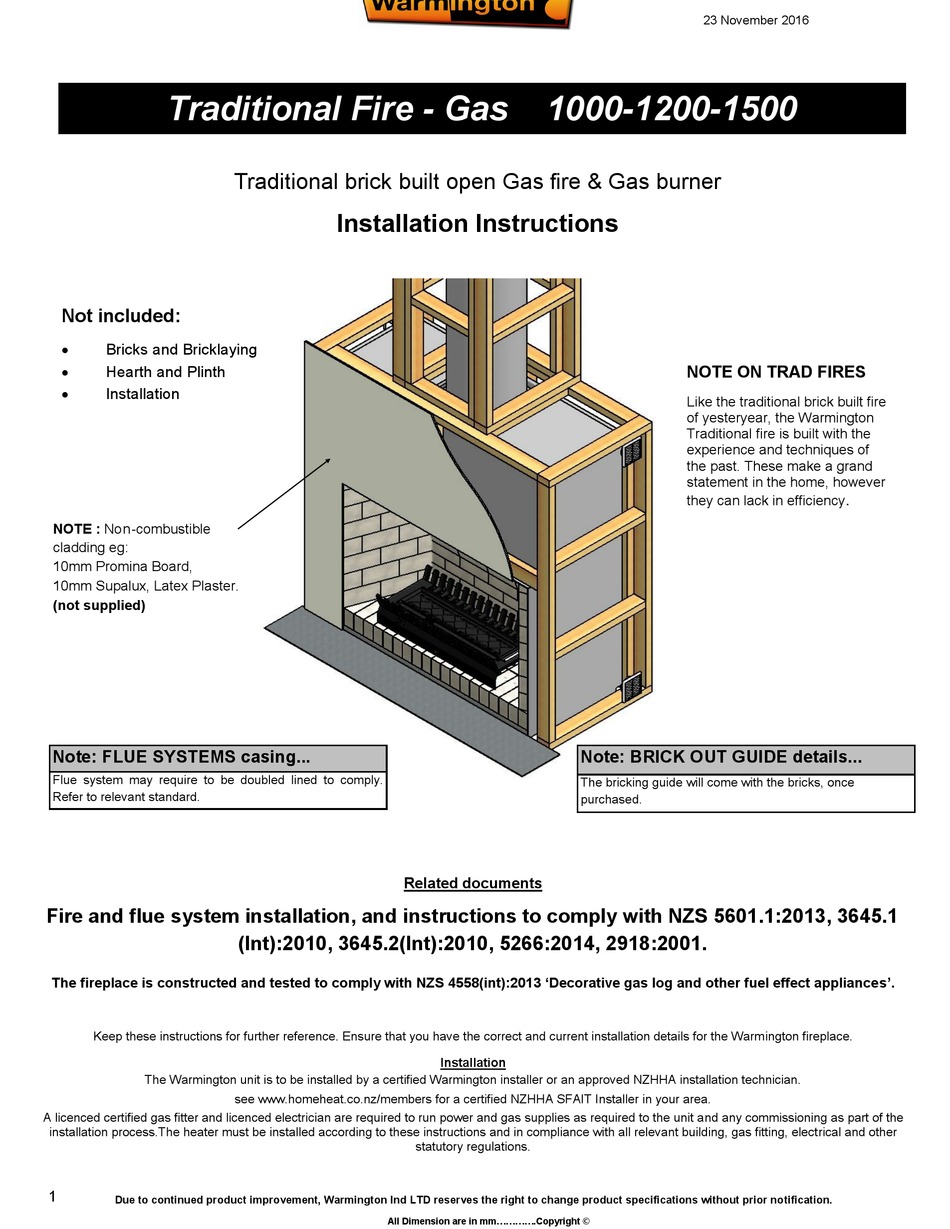

Warmington Traditional Fire - Gas 1000 Installation Instructions Manual

Traditional Fire - Gas
Not included:

Bricks and Bricklaying

Hearth and Plinth

Installation
NOTE : Non-combustible
cladding eg:
10mm Promina Board,
10mm Supalux, Latex Plaster.
(not supplied)
Note: FLUE SYSTEMS casing...
Flue system may require to be doubled lined to comply.
Refer to relevant standard.
Fire and flue system installation, and instructions to comply with NZS 5601.1:2013, 3645.1
The fireplace is constructed and tested to comply with NZS 4558(int):2013 'Decorative gas log and other fuel effect appliances'.
Keep these instructions for further reference. Ensure that you have the correct and current installation details for the Warmington fireplace.
The Warmington unit is to be installed by a certified Warmington installer or an approved NZHHA installation technician.
A licenced certified gas fitter and licenced electrician are required to run power and gas supplies as required to the unit and any commissioning as part of the
installation process.The heater must be installed according to these instructions and in compliance with all relevant building, gas fitting, electrical and other
1
Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.
Traditional brick built open Gas fire & Gas burner

Installation Instructions

Related documents
(Int):2010, 3645.2(Int):2010, 5266:2014, 2918:2001.
see www.homeheat.co.nz/members for a certified NZHHA SFAIT Installer in your area.
All Dimension are in mm.............Copyright ©
1000-1200-1500
Note: BRICK OUT GUIDE details...
The bricking guide will come with the bricks, once
purchased.
Installation
statutory regulations.
23 November 2016
NOTE ON TRAD FIRES
Like the traditional brick built fire
of yesteryear, the Warmington
Traditional fire is built with the
experience and techniques of
the past. These make a grand
statement in the home, however
.
they can lack in efficiency
