19 August 2021
Gas Starter Log Lighters
Gas Log Lighters for Wood Fires
Installation and Operational Instructions

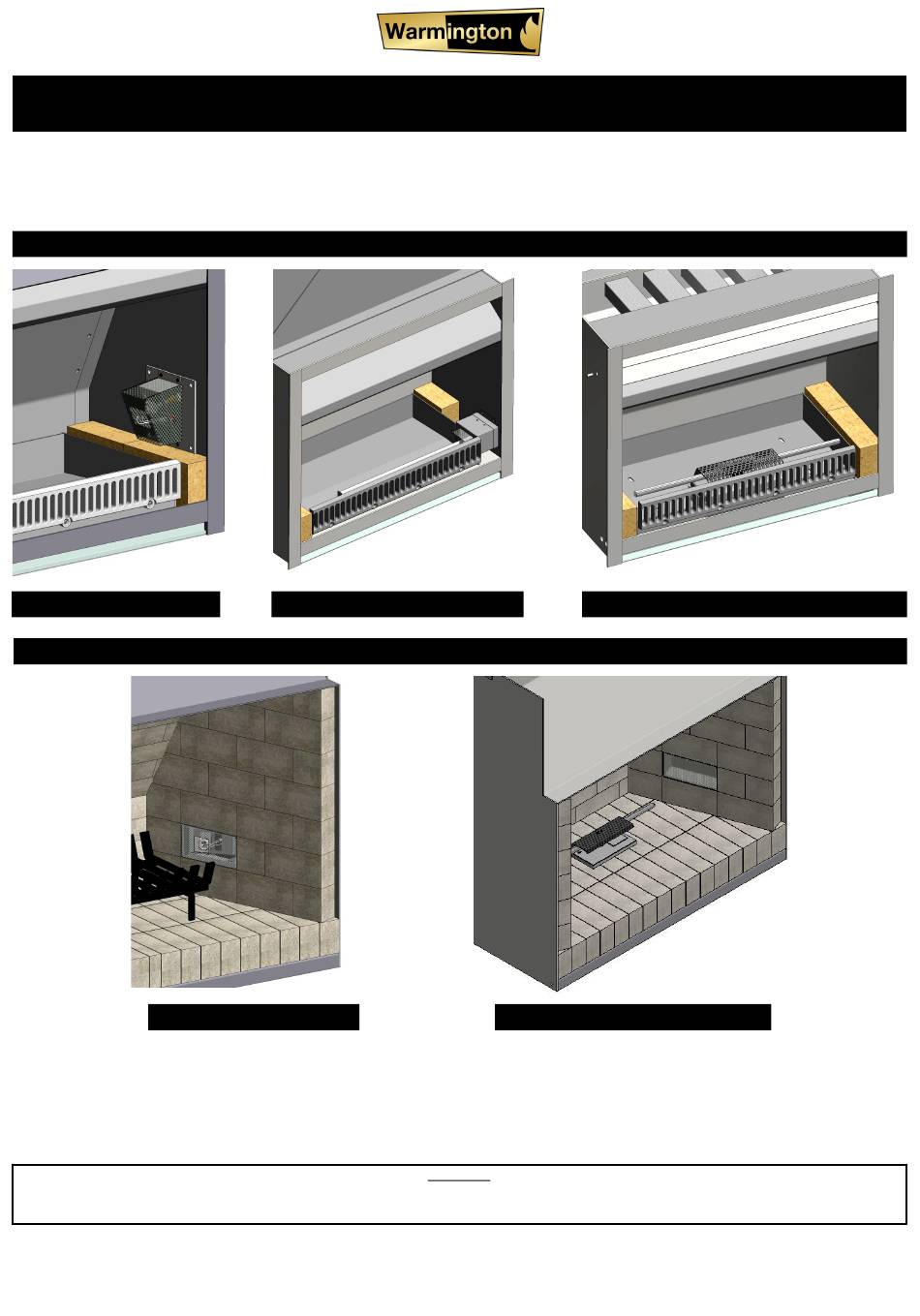

1. FOR WARMINGTON SI / SN SERIES FIRES:
1A: SI/SN FLARE
1B: SI/SN RAIL BURNER
1C: SI/SN TEE BAR RAIL BURNER
2. FOR WARMINGTON TF SERIES FIRES:
2A: TF FLARE
2B: TF TEE BAR RAIL BURNER
Warmington gas log lighters are constructed and tested to comply with NZS 4558(int):2013 "Decorative gas log and
other fuel effect appliances".
Keep these instructions for further reference. Ensure that you have the correct and current installation details.
IMPORTANT
Read all the instructions carefully before commencing the installation. Failure to follow these instructions may result in a fire hazard and void the warranty.
Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.
All dimensions are in mm
1
Copyright
Advertisement
Table of Contents
Related Manuals for Warmington SI Flare
Summary of Contents for Warmington SI Flare
- Page 1 Read all the instructions carefully before commencing the installation. Failure to follow these instructions may result in a fire hazard and void the warranty. Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification.
-
Page 2: Components Required For Installation
Burner Head (only one type is supplied) Control box SIT 840 Control Valve Omron H3DK-M1 Timer NOT Supplied Switch plate Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All dimensions are in mm Copyright... -
Page 3: General Information
GENERAL INFORMATION Gas log lighters are to be used in Warmington wood fires for automatic lighting of wood logs. There are three different options to choose from. The ‘flare’ blasts flames (and heat) onto the wood from one side, while the ‘rail burner’ and ‘tee bar rail burner’ blast heat and flames across the central opening of the fireplace (either from the front or the back). -
Page 4: Installation
Prepare firebox for fitment of the burner head. If the firebox has been specified including the log lighter, much of the firebox preparation work will be done in the Warmington factory. If retrofitting into an existing fire, follow these instructions. - Page 5 • If installing into a new Warmington traditional fire, see section 2 of the TF firebox specification document. The TF flare installation should replace the installation of one the Caitec air bricks as referenced in TF firebox specifications section 2.2. Cut holes for gas/ electrical feeds as per section 2.3.
- Page 6 Lastly bolt the leg of the rail-burner to the ash pan through the hole that on the foot at the end of the rail-burner. SI FIREBOX CUT PATTERN SN FIREBOX CUT PATTERN SI/SN ASH PAN CUT PATTERN Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All dimensions are in mm Copyright...
- Page 7 (with grommets) on the sides of the firebox. Note: retrofitting a tee bar into SI or SN fires is not recommended, unless the fire is sent back to the Warmington factory.
- Page 8 Keeping the valve as close as possible to the burner is recommended as this will reduce the ignition time. FLUED GAS APPLIANCES: All gas fires requiring Warmington flue systems shall be installed to the requirements of relevant gas standards and shall be appropriately designed and constructed to permit safe and effective use. This appliance must be flued to the outside atmosphere.
- Page 9 When you are satisfied that the appliance is working correctly, fit all the covers to the unit. If you are unable to get the unit to operate correctly, refer to troubleshooting before contacting your local Warmington agent. During the initial burning in period, some smoke and smell may be experienced. The appliance should be run in a well ventilated room until these dissipate.
-
Page 10: Wiring Diagram
19 August 2021 WIRING DIAGRAM Due to continued product improvement, Warmington Ind LTD reserves the right to change product specifications without prior notification. All dimensions are in mm Copyright... -
Page 11: Troubleshooting
For natural gas, this fitting should have 4 holes exposed for aeration. For LPG, 10 holes should be exposed. If a natural gas fitting has been supplied for running LPG, the flame will burn sooty. Contact the Warmington Auckland office if the fitting needs to be replaced. -
Page 12: Maintenance
Fireplace installation to comply with NZS 6501.1:2013, 3645.1 (Int):2010, 3645.2(Int): 2010, 5266:2014, 2918:2001. Flue system installation to comply with AS/NZS 2918:2001 and appropriate building codes. The Warmington unit is to be installed by a certified Warmington installer or an approved NZHHA installation technician. See www.homeheat.co.nz/members for a certified NZHHA SFAIT Installer in your area.
