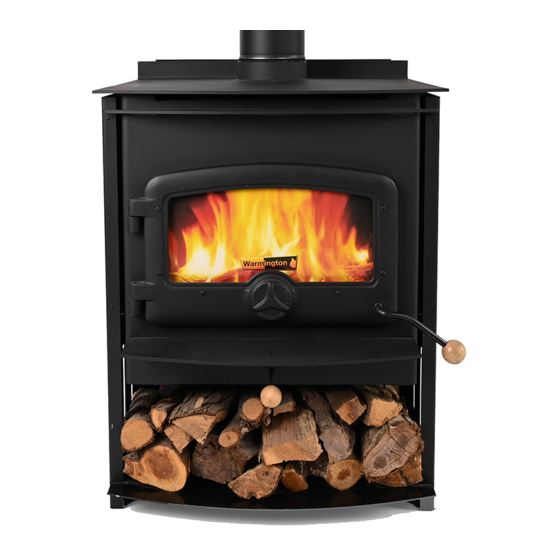

Southern Series Woodburners

Lewis, Lindis, McKenzie and the Cardrona Cooker

Operating Instructions

Visit

www.warmington.co.nz

for specs, DWGs and PDF uploads of fires

Table of Contents

Need help?

Do you have a question about the Southern Series and is the answer not in the manual?

Page 1 19 May 2021 Southern Series Woodburners Lewis, Lindis, McKenzie and the Cardrona Cooker Maintenance and Operating Instructions Visit www.warmington.co.nz for specs, DWGs and PDF uploads of fires...
Page 2 If there is a lot of charcoal you may be turning the combustion air down to soon after refueling, or not raking the charcoal to the combustion air inlet, or turning the combustion air down too low to support efficient combustion, or all of the above. Warmington wood- burning appliances work best when a small amount of ash is left approximately 25mm deep in the firebox after cleaning, this aids with stable burning.
Page 3 19 May 2021 Damper Control Position Damper control knob Turn Anti-clockwise to Close Turn Clockwise to Open Operating Instructions for Damper Control The Primary Air Control Handle (Wooden Knob) Controls the amount of air drawn into the Firebox, and thus the combustion rate. Turn- ing the Air Control Clockwise will let more air into the Fire thus giving higher peak output, but shorter burn time.
Page 4 19 May 2021 MAINTENANCE The operation, components and general condition of the fire and flue system need to be checked annually, or more frequently if required. Repair or replace parts when necessary. For more information, contact your local retailer. The chimney, firebox are to be cleaned and swept annually or more frequently if required. Chimney Maintenance To clean the chimney, remove baffle plate inside the top of the firebox &...
