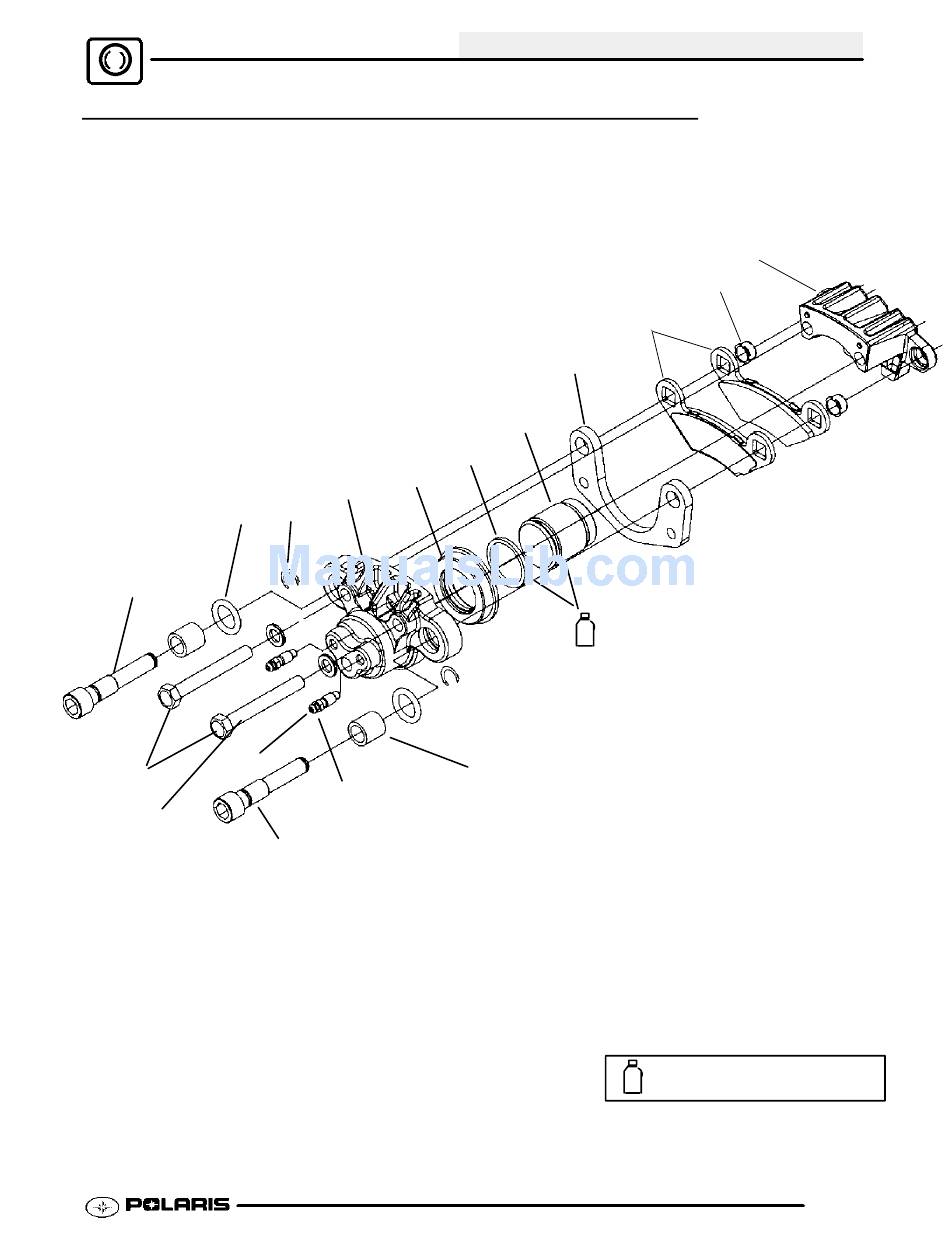

FRONT/REAR BRAKE CALIPER EXPLODED VIEW
A. Anvil Body
B. Bushing
C. Brake Pads
D. Caliper Bracket
E. Piston
F. O--Ring
G. Dust Boot
H. Caliper Body
I. O--Ring
J. Sleeve
K. Slide Bolt
L. Caliper Bolt
M. Bleeder Screws
N. Circlips
I
33 ft.lbs.
(45 Nm)
M
18 ft.lbs.
(25 Nm)
L
NOTE: BRAKE COMPONENTS ARE NOT SOLD SEPARATELY,
REFER TO YOUR PARTS BOOK FOR PARTS BREAK DOWN.
F
G
H
N
27 in.lbs.
(3 Nm)
K
C
D
E
3
J
3
BRAKES
A
B
APPLY POLARIS DOT 3 BRAKE
FLUID TO COMPONENT
6.19
