Es50Pl Lubrication/Oil Flow; Camshaft - Polaris PREDATOR 2003 Service Manual

ENGINE
ES50PL OIL FLOW

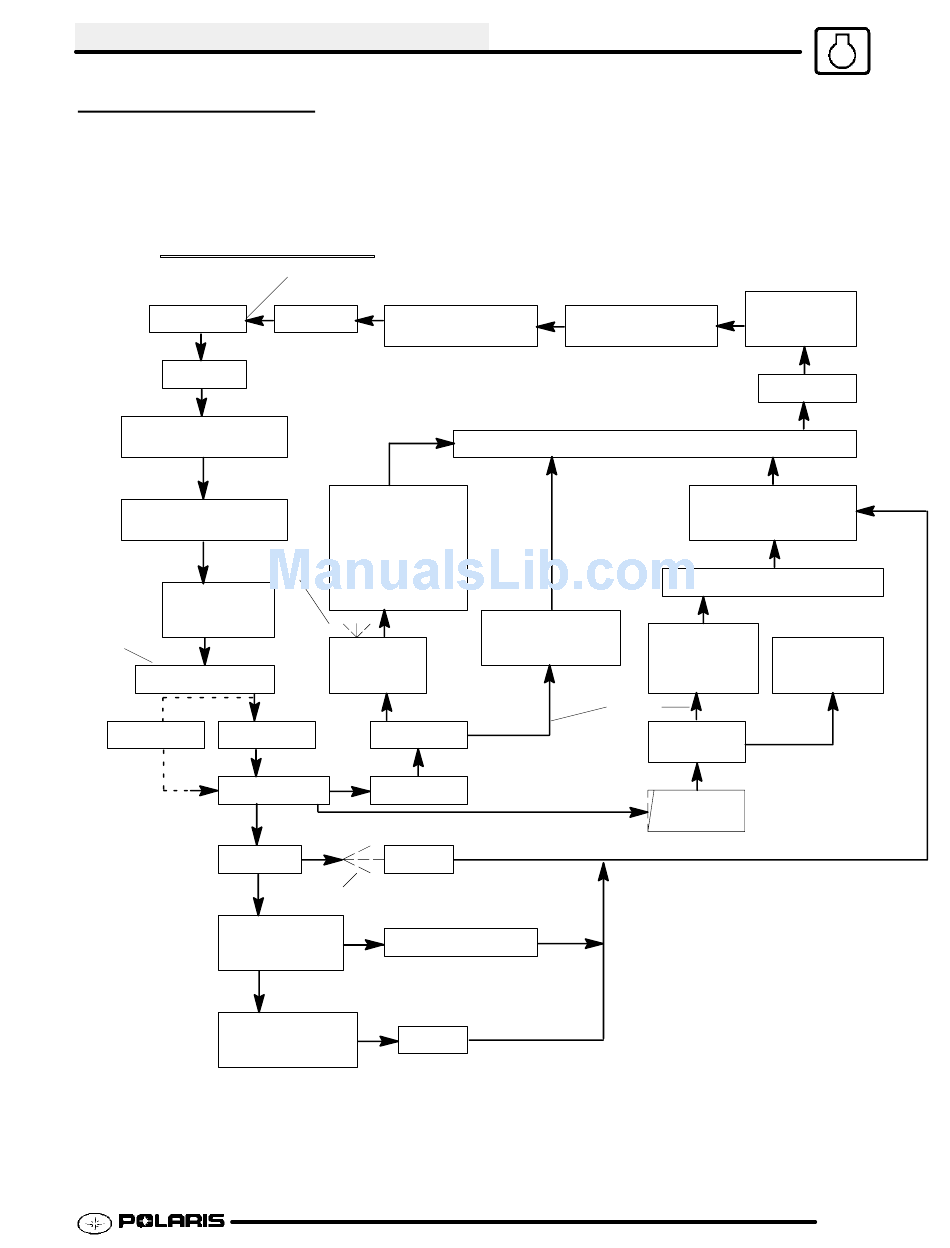

ES50PL OIL FLOW CHART
Oil Tank
Oil Hose
Crankcase (Mag Side)
Oil Gallery
Crankcase (Clutch Side)
Oil Gallery
Oil Pump
Prevents oil from
(Feed)
draining into
crankcase with
engine off
One Way Valve
Bypass Oil Filter
Delivery Pipe
Oil Shaft
Transmission
To p of Oil Tank
Crankcase (Mag Side)
Oil Hose
Cylinder
Piston
Indirect
Lubrication
Connecting Rod
(Small End)
Large End
Bearing
Crank Pin
Crankshaft
Gears
Indirect
Lubrication
Gears & Clutch
Main Shaft
Transmission
Gears
Counter Shaft
Crankcase
Oil Gallery
Ball Bearing
(Mag Side)
Oil Pump
(Clutch Side)
(Scavenging)
Oil Gallery
Oil Strainer
Crankcase
Cam Chain
Cam & Crank Sprocket
Chain Room
Cam Lobe
Valve Lifter
Oil Jet
Cam Support
Oil Gallery
Cylinder Head
Oil Gallery
Cam Shaft
Journal
3.11
