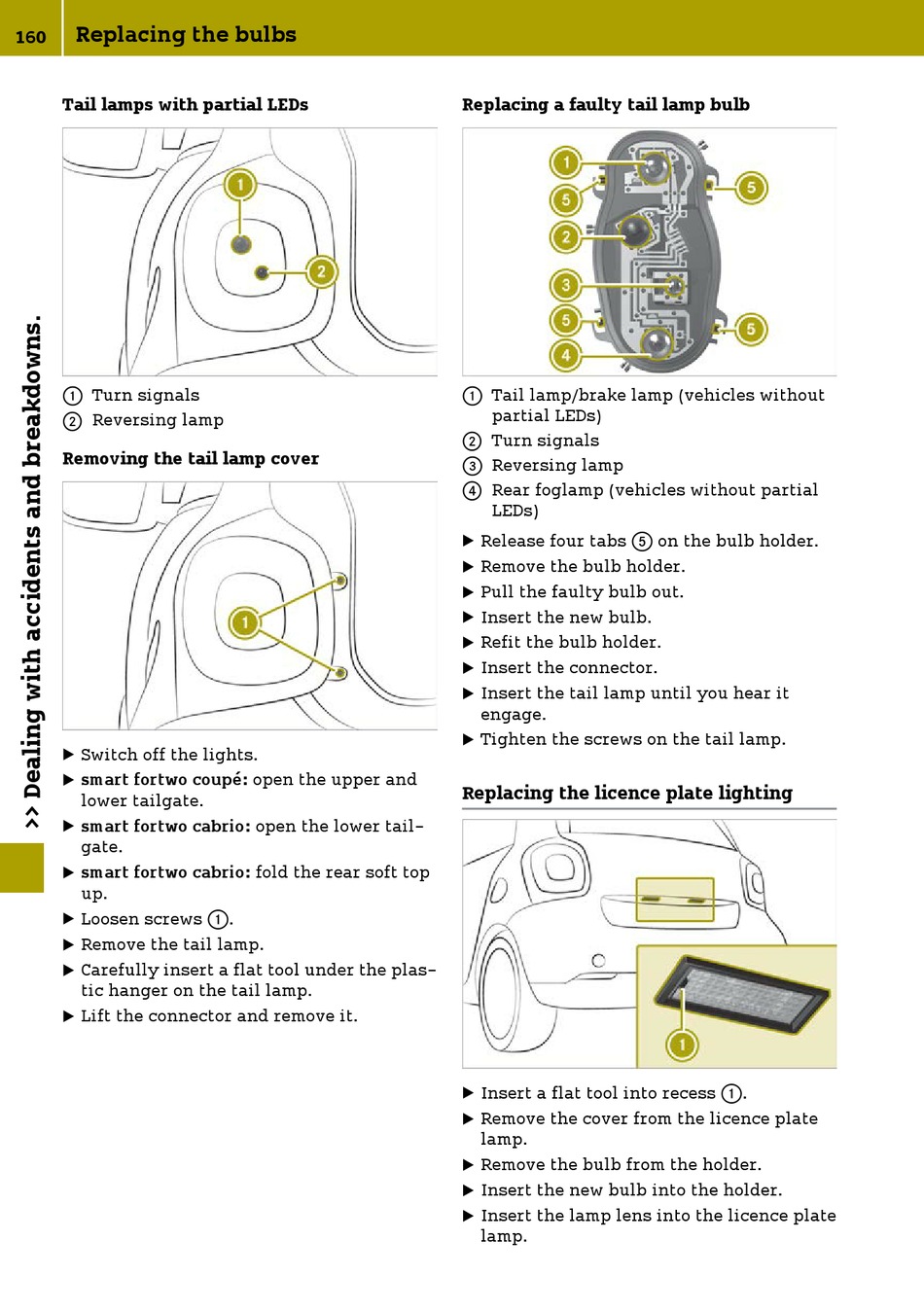

SMART fortwo coupé Owner's Manual page 162

Replacing the bulbs
160
Tail lamps with partial LEDs
Turn signals
:
Reversing lamp
;
Removing the tail lamp cover
X
Switch off the lights.
X
smart fortwo coupé: open the upper and
lower tailgate.
X
smart fortwo cabrio: open the lower tail-
gate.
X
smart fortwo cabrio: fold the rear soft top
up.
X
Loosen screws :.
X
Remove the tail lamp.
X
Carefully insert a flat tool under the plas-
tic hanger on the tail lamp.
X
Lift the connector and remove it.
Replacing a faulty tail lamp bulb
Tail lamp/brake lamp (vehicles without
:
partial LEDs)
Turn signals
;
Reversing lamp
=
Rear foglamp (vehicles without partial
?
LEDs)
X
Release four tabs A on the bulb holder.
X
Remove the bulb holder.
X
Pull the faulty bulb out.
X
Insert the new bulb.
X
Refit the bulb holder.
X
Insert the connector.
X
Insert the tail lamp until you hear it
engage.
X
Tighten the screws on the tail lamp.
Replacing the licence plate lighting
X
Insert a flat tool into recess :.
X
Remove the cover from the licence plate
lamp.
X
Remove the bulb from the holder.
X
Insert the new bulb into the holder.
X
Insert the lamp lens into the licence plate
lamp.
