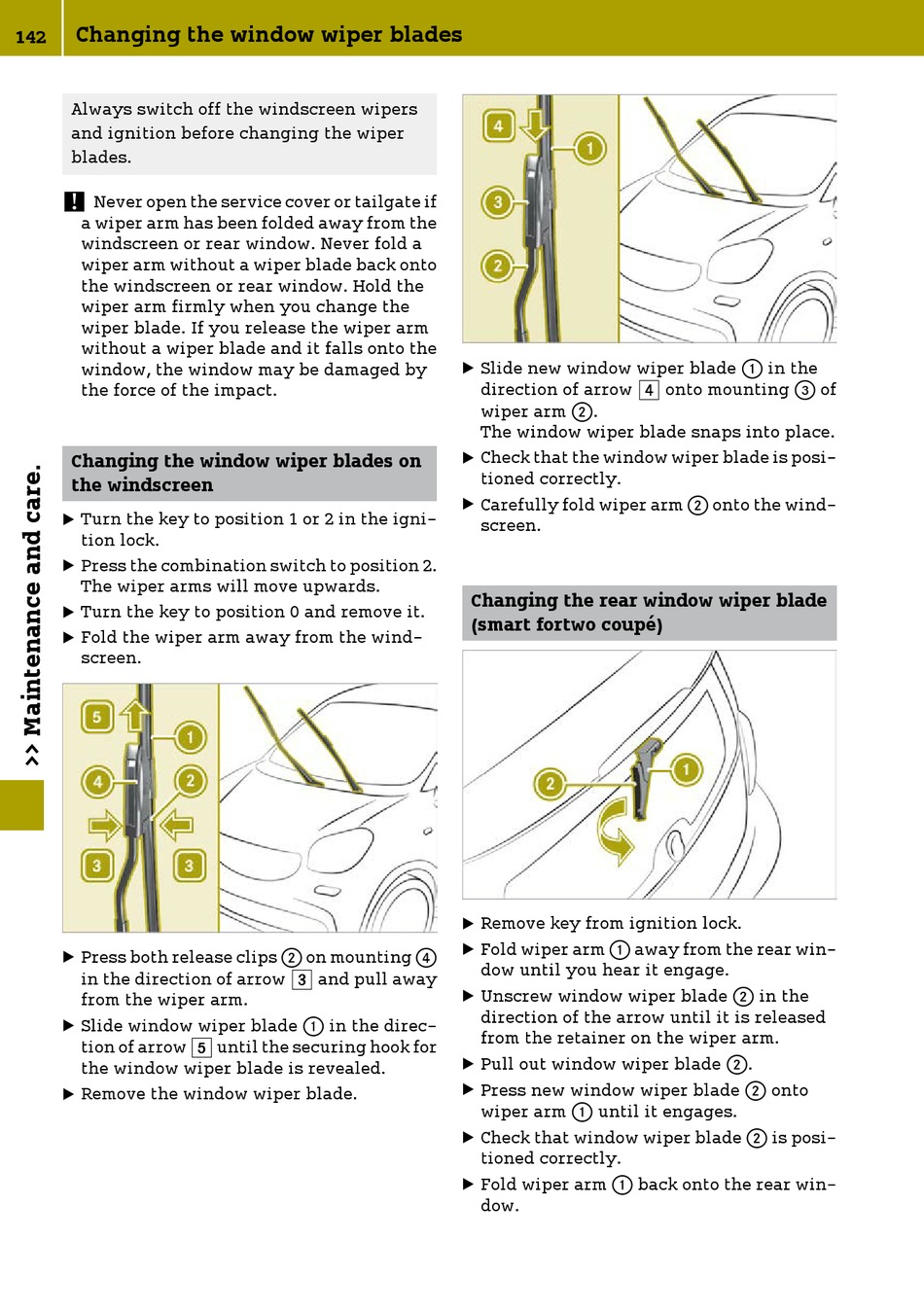

Changing the window wiper blades
142
Always switch off the windscreen wipers
and ignition before changing the wiper
blades.
! Never open the service cover or tailgate if
a wiper arm has been folded away from the
windscreen or rear window. Never fold a
wiper arm without a wiper blade back onto
the windscreen or rear window. Hold the
wiper arm firmly when you change the
wiper blade. If you release the wiper arm
without a wiper blade and it falls onto the
window, the window may be damaged by
the force of the impact.
Changing the window wiper blades on
the windscreen
X
Turn the key to position 1 or 2 in the igni-
tion lock.
X
Press the combination switch to position 2.
The wiper arms will move upwards.
X
Turn the key to position 0 and remove it.
X
Fold the wiper arm away from the wind-
screen.
X
Press both release clips ; on mounting ?
in the direction of arrow 3 and pull away
from the wiper arm.
X
Slide window wiper blade : in the direc-
tion of arrow 5 until the securing hook for
the window wiper blade is revealed.
X
Remove the window wiper blade.
X
Slide new window wiper blade : in the
direction of arrow 4 onto mounting = of
wiper arm ;.
The window wiper blade snaps into place.
X
Check that the window wiper blade is posi-
tioned correctly.
X
Carefully fold wiper arm ; onto the wind-
screen.
Changing the rear window wiper blade
(smart fortwo coupé)
X
Remove key from ignition lock.
X
Fold wiper arm : away from the rear win-
dow until you hear it engage.
X
Unscrew window wiper blade ; in the
direction of the arrow until it is released
from the retainer on the wiper arm.
X
Pull out window wiper blade ;.
X
Press new window wiper blade ; onto
wiper arm : until it engages.
X
Check that window wiper blade ; is posi-
tioned correctly.
X
Fold wiper arm : back onto the rear win-
dow.
