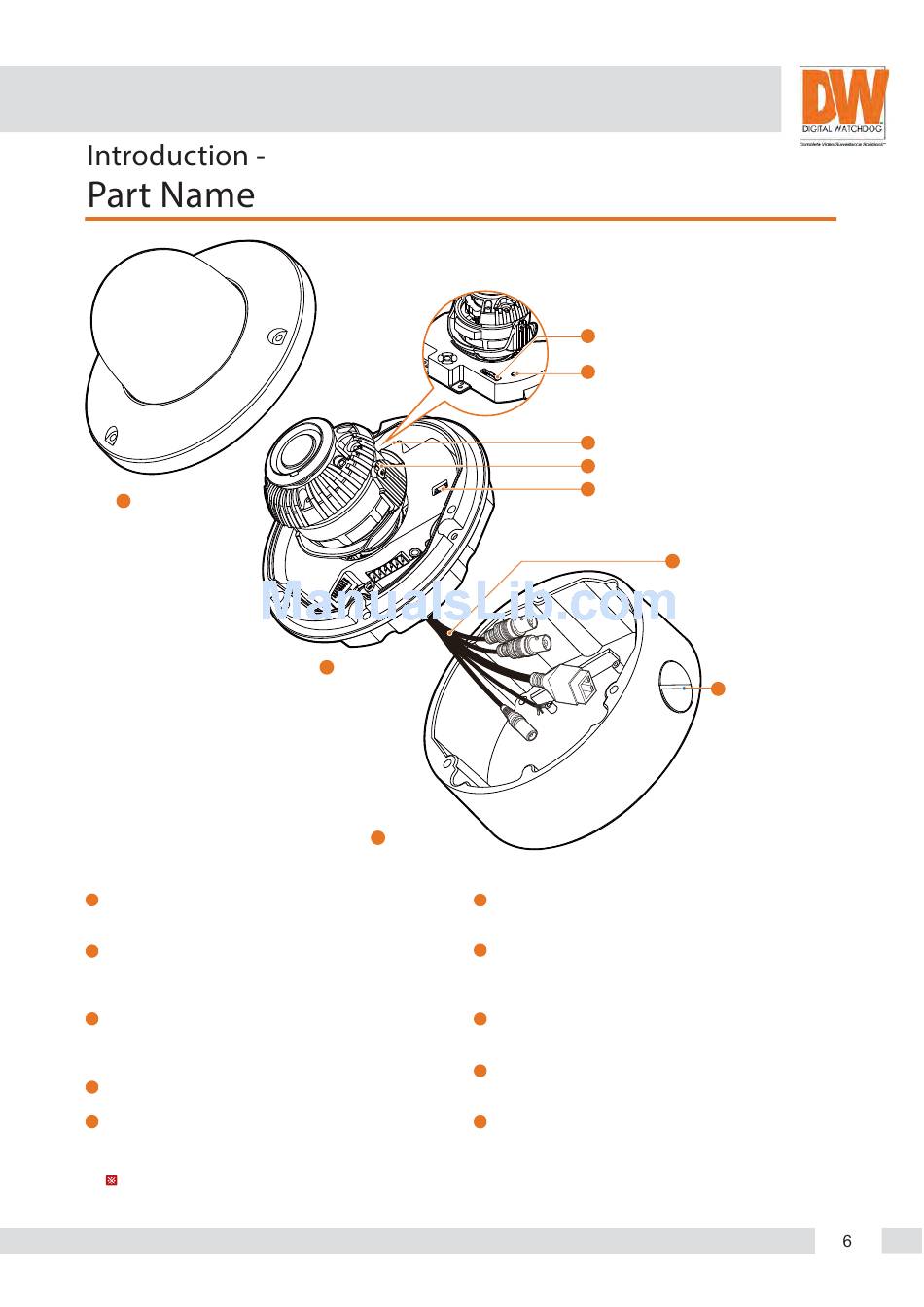

Digital Watchdog DWC-MV421D User Manual page 6

1
Dome Cover
1
Dome Cover
Covers the inner cover, lens, and main body to protect them.
2
Main Body
Includes a lens, a connecting slot, a PCB board, screws and
such.
3
Mount Bracket
Used as a ceiling or wall fixture. It is fixed using three long
tall screws provided in the package.
4
SD Card Slot
5
Reset Button
All the settings will be restored to the factory default. Power
On the unit and push the switch for 5 seconds.
WARNING
YOU WILL LOSE ALL DATA THAT HAD BEEN ENTERED PREVIOUSLY AND
THE IP DOME CAMERA WILL BE SET TO ITS FACTORY RESETS.
2
Main Body
3
Mount Braket
6
Fan
It help reduce the inner heat of camera.
7
Tilt Stopper Screw
Using this screw, the slope of the lens can be adjusted and
fixed.
8
Test Video Slot
Use it to connect the Test Video Calbe.
9
Cables
Connect the Power, Audio, Alarm, Network.
10
¾" Pipe Mounting Hole
Pass the power cable and video cable from the camera unit
through this hole.
4
SD Card Slot
5
Reset Button
6
Fan
7
Tilt Stopper Screw
8
Test Video Slot
9
Cables
10
¾" Pipe Mounting
Hole
