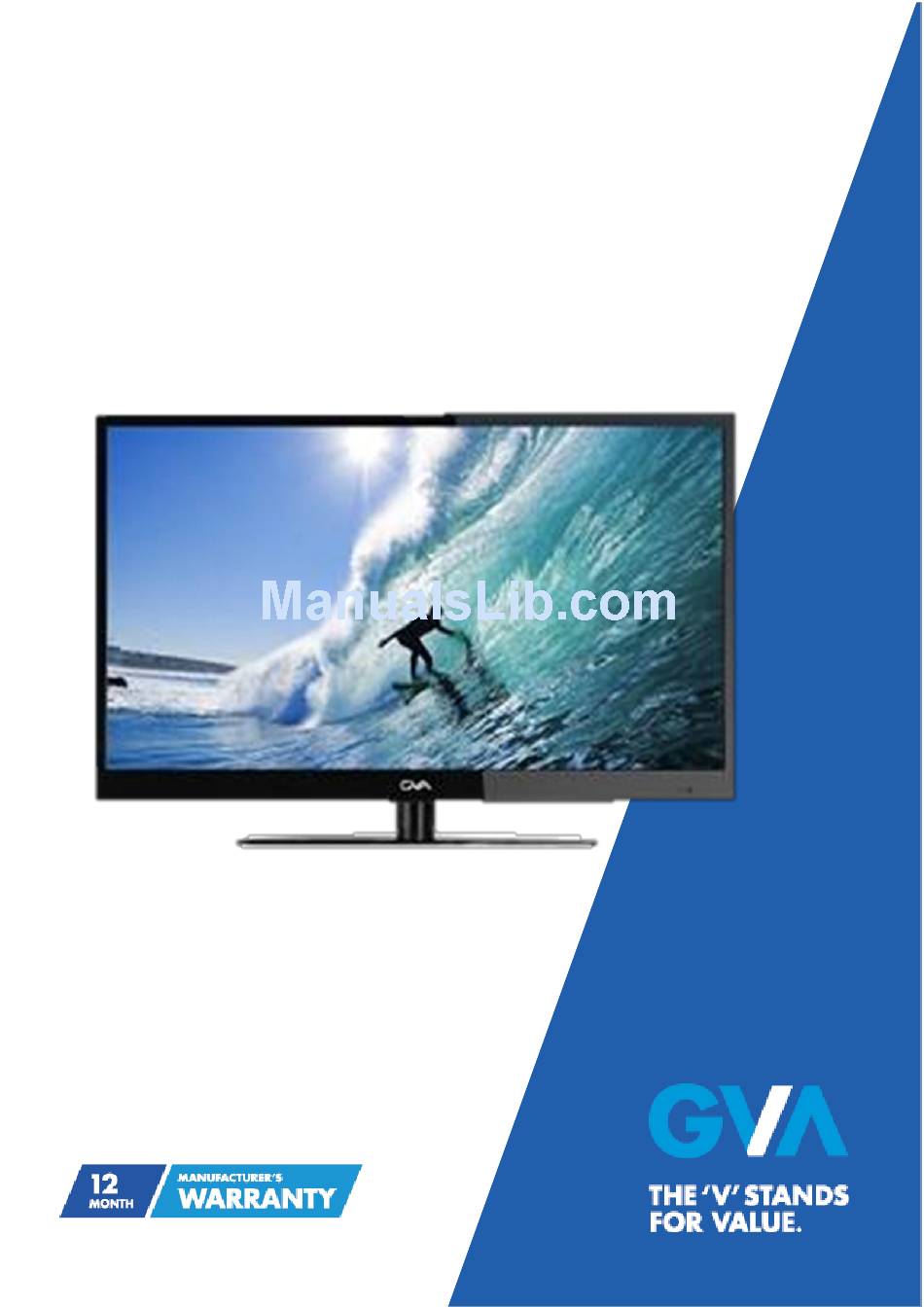

  • Page 1 32” (80cm) FHD LED LCD TV GVAFLED32 Instruction Manual...

  • Page 2: Table Of Contents

    Contents Preface Safety Precautions Important Safety Instructions In the Carton Connections and Functions Basic Installation Remote Control Remote Control Setup Using the Remote Control Basic Operation First Time Installation Input Source Information Display Picture Mode Sound Mode Audio Language Sleep Timer EPG (Electronic Program Guide) PVR and Time Shift Operation Setting up and Connecting a Storage Device...
  • Page 3 Contents Setup Menu Menu Options in PC Mode Media (USB) Mode Specifications Wall Mounting Instructions Care and Maintenance Responsible Disposal FAQs...

  • Page 4: Preface

    Preface Preface Thank you for buying this TV! Please read this manual thoroughly before operating the TV. Thank you for building this TV! Please read this manual thoroughly before operating the TV. Make sure the TV was not damaged in transit. If the TV is damaged, do not install it and Make sure the TV was not damaged in transit.
  • Page 5 Safety Precautions (Cont.) Safety Precautions (Cont.) The power cord and cables must be properly inserted and Power cord and cables must be properly routed and protected protected to prevent people from stepping on them or to prevent people from stepping on them and causing the TV causing the TV to fall.
  • Page 6 Safety Precautions (Cont.) Safety Precautions (Cont.) Do not use spare parts other than those suggested by the manufacturer. Using inadequate spare parts can lead to In cause of troubleshooting, do not use spare parts electric shocks, short circuits, fire or other incidents. other than those suggested by the manufacturer.

  • Page 7: Important Safety Instructions

    Important Safety Instructions Read this manual thoroughly before first use and keep it in a safe place for future reference, along with the warranty card, purchase receipt and carton. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. Usage conditions and restrictions To prevent any injuries, the following safety precautions should be observed in the installation, use, servicing and maintenance of equipment.

  • Page 8: Cleaning And Maintenance

    Important Safety Instructions Electrical safety, power cord and plug • Before installing this TV set, make sure your outlet voltage corresponds to the voltage stated on the appliance rating label. • To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. •...
  • Page 9 Important Safety Instructions • Do not apply excessive force to the screen when cleaning. • Do not clean the screen with water or chemical cleaners as this may damage the LED screen surface. • Do not dismantle this product by yourself, as this may cause damage. There are no user- serviceable parts contained in the TV set.

  • Page 10: In The Carton

    In the Carton In the Carton Screws and Metal Plate Mini YPbPr Cable...

  • Page 11: Connections And Functions

    Connections and Functions Connections and Functions Connections and Functions Front and Back Connection of LED TV Front and Back Connection of LED TV Press “POWER” button to turn TV on or Press “POWER” button to turn TV on or Front and Back Connection of LED TV off.

  • Page 12: Basic Installation

    Basic Installation Basic Installation Basic Installation Power Cord Connection Power Cord Connection Power Cord Connection - Connect the power cord as shown. - Connect the power cord as shown. - Connect the power cord as shown. - Press the POWER switch of your LED TV to switch the unit on. The power indicator on the - Press the POWER switch of your LED TV to switch the unit on.
  • Page 13 Basic Installation (Cont.) Basic Installation (Cont.) Basic Installation (Cont.) AV Connection AV Connection Connect the VIDEO and AUDIO output sockets of the DVD or VCR to the AV IN sockets on the AV Connection Connect the VIDEO and AUDIO output sockets of the DVD or VCR to the AV IN sockets on the TV using the RCA cable (Yellow [video],White and Red [left and right audio]).
  • Page 14 Basic Installation (Cont.) Basic Installation (Cont.) Basic Installation (Cont.) VGA (PC) Connection VGA (PC) Connection VGA (PC) Connection Connect the RGB output of the PC to the VGA socket on the set. Connect the AUDIO output Connect the RGB output of the PC to the VGA socket on the set. Connect the AUDIO output Connect the RGB output of the PC to the VGA socket on the set.
  • Page 15 Basic Installation (Cont.) Basic Installation (Cont.) Basic Installation (Cont.) Coax Connection Coax Connection Coax Connection Connect the Coaxial output of the TV to the Coaxial (SPDIF) input on the ampli er. Your Connect the Coaxial output of the TV to the Coaxial (SPDIF) input on the ampli er. Your Connect the Coaxial output of the TV to the Coaxial (SPDIF) input on the amplifier.

  • Page 16: Remote Control

    MUTE TV/RADIO AUTO -/-- ASPECT SLEEP LANGUAGE NICAM AUDIO DISPLAY SOURCE EXIT MENU MENU TITLE P.MODE INPUT PMODE S.MODE SMODE FREEZE DISPLAY SLEEP HOLD SIZE SUBTITLE D.MENU ZOOM MEDIA HOLD LANG SUBTITLE INDEX TEXT/MIX GOTO ANGLE REPEAT DVD SETUP GVAFLED32...
  • Page 17 Remote Control (Cont.) TV Control in DTV Mode POWER : Press “POWER” button to turn standby mode on or off. TV/RADIO : Select TV or Radio modes. MUTE : Press to mute the sound. Press again to unmute the TV. NUMBER BUTTONS: Press 0-9 to select a TV channel directly when you are watching TV.
  • Page 18 MUTE TV/RADIO AUTO -/-- ASPECT SLEEP LANGUAGE NICAM AUDIO DISPLAY SOURCE EXIT MENU MENU TITLE P.MODE INPUT PMODE S.MODE SMODE FREEZE DISPLAY SLEEP HOLD SIZE SUBTITLE D.MENU ZOOM MEDIA HOLD LANG SUBTITLE INDEX TEXT/MIX GOTO ANGLE REPEAT DVD SETUP GVAFLED32...
  • Page 19 Remote Control (Cont.) : PLAY/PAUSE in TIMESHIFT mode. : Stop in TIMESHIFT mode or exit the REC mode. / : Fast reverse and forward key in TIMESHIFT mode. Jump to previous and next track or chapter in TIMESHIFT mode. INDEX: Teletext INDEX display button. TEXT / MIX: Press to switch between TV and Teletext / Mix mode.
  • Page 20 MUTE TV/RADIO AUTO -/-- ASPECT SLEEP LANGUAGE NICAM AUDIO DISPLAY SOURCE EXIT MENU MENU TITLE P.MODE INPUT PMODE S.MODE SMODE FREEZE DISPLAY SLEEP HOLD SIZE SUBTITLE D.MENU ZOOM MEDIA HOLD LANG SUBTITLE INDEX TEXT/MIX GOTO ANGLE REPEAT DVD SETUP GVAFLED32...
  • Page 21 Remote Control (Cont.) TV Control for Teletext TEXT/MIX: Press to switch between TV and Teletext / Mix mode. HOLD / FREEZE: Hold teletext. SUBTITLE: To display subtitle. INDEX: Teletext INDEX display button. ZOOM / SIZE: Press this button to select the teletext size. COLOUR BUTTONS : The RED / GREEN / BLUE / YELLOW buttons are used for quick access to colour-code pages transmitted by FAST TEXT broadcast.

  • Page 22: Remote Control Setup

    Remote Control Setup Remote Control Setup Remote Control Setup Open the cover. Open the cover. 1. Open the cover at the back of the remote control unit completely. Your remote requires 2 x AAA Batteries. When inserting the batteries, make sure correct Your remote requires 2X AAA Batteries.

  • Page 23: Basic Operation

    Basic Operations Basic Operations Basic Operation Make sure all necessary connections are correctly made before connecting the unit Make sure all necessary connections are correctly made before connecting the unit to the wall socket and turning on the power. The power indicator turns red and the to the wall socket and turning on the power.

  • Page 24: First Time Installation

    Basic Operations (Cont.) Basic Operation (Cont.) Basic Operations (Cont.) First Time Installation First time installation First time installation Connect the antenna to the RF 75 socket. Connect the antenna to the RF 75Ω socket. Connect the antenna to the RF 75 socket. Turn on the TV.

  • Page 25: Input Source

    Basic Operation (Cont.) Input Source Make sure you have the external input device (such as a home theatre) properly connected. Turn on the external device and press SOURCE on the remote control to select it. The input source menu will appear. Use the button to move the highlighted bar to the desired source item.

  • Page 26: Epg (Electronic Program Guide)

    EPG (Electronic Program Guide) EPG (Electronic Program Guide) EPG (Electronic Program Guide) EPG (Electronic Program Guide) Powering the LE EPG stands for Digital Electronic Program Guide. It is supplied by the program providers Powering the LED TV EPG stands for Digital Electronic Program Guide. It is supplied by the program providers and EPG stands for Digital Electronic Program Guide.

  • Page 27: Pvr And Time Shift Operation

    PVR and Time Shift Operation This television support Personal Video Recorder (PVR) and time shift functions when a compatible USB storage device is connected. PVR allows you to record digital TV programs PVR and Time shift Operation patible USB storage device is connected. PVR allows you to record digital TV prog for playback at a later time.

  • Page 28: Speed

    Speed Speed Speed Speed Speed Choose the disk for storing the content you want to record. Speed Choose the disk for storing the content you want to record. PVR and Time shift Operation Choose the disk for storing the content you want to record. PVR and Time shift Operation Choose the disk for storing the content you want to record.

  • Page 29: Record Start

    PVR and Time Shift Operation (Cont.) Record Start (Instant Recording) You can press the REC button to start (and the button to stop) recording PVR and Time shift Operation PVR and Time shift Operation directly. If you want to stop recording, you should select STOP in the operation PVR and Time Shift Operation menu and press OK to operate.

  • Page 30: Viewing Recorded Programs

    PVR and Time Shift Operation (Cont.) PVR and Time shift Operation PVR and Time shift Operation Press the buttons to select “ Start Time” item, press the buttons to set PVR and Time shift Operation PVR and Time Shift Operation the beginning recording time.

  • Page 31: Time Shift Mode

    PVR and Time Shift Operation (Cont.) Time Shift Mode Time Shift may be used to pause and control live TV (in DTV mode only). When watching digital TV program, press the button to start time shift mode. The playback will pause the recording will commence in the background. To resume playback, press button again.

  • Page 32: The On-Screen Display (Osd) Menu

    The On-Screen Display (OSD) Menu The On-Screen Display (OSD) Menu Navigating through menus Navigating Through Menus • Press the MENU button for the OSD main menu to appear. • Press for the main menu to display sequentially: Channel Picture Sound Time Lock Setup...

  • Page 33: Menu Options On Tv Mode

    Menu Options in TV Mode Menu Options in TV Mode Menu Options in TV Mode Channel Menu Channel menu Channel menu Press MENU button to display the main menu. Press [MENU] to display the main menu. Press [MENU] to display the main menu. Press button to select CHANNEL in the main Press / to select Channel in the main...

  • Page 34: Picture Menu

    Menu Options in TV Mode (Cont.) TV Mode (Cont.) Picture Menu Press MENU to display the main menu. Press buttons to select PICTURE in the main menu, press or OK button to enter. menu. !"# re Mode mode in Mild Personal.

  • Page 35: Sound Menu

    Menu Options in TV Mode (Cont.) Tint Press buttons to select Tine, then press OK button to enter the Tine submenu. Press buttons to set the picture tint (Only available for NTSC video signal). Press OK button to confirm setting. Sharpness Press buttons to select Sharpness, then press OK button to enter the Sharpness...

  • Page 36: Auto Volume

    Menu Options in TV Mode (Cont.) ions in TV Mode (Cont.) Sound Mode Press buttons to select Sound Mode, then press OK button to enter the Sound Mode submenu. Press buttons to change the sound mode in sequence: Standard Music Movie Sports Personal.

  • Page 37: Time Menu

    Menu Options in TV Mode (Cont.) V Mode (Cont.) Time Menu Press MENU to display the main menu. Press buttons to select TIME in the main menu, press or OK button to enter. menu, time Clock (DTV mode only) ource. Display the current system time.

  • Page 38: Lock Menu

    Menu Options in TV Mode (Cont.) OSD Timer Press buttons to select OSD Timer, then press OK button to enter submenu. You can set your preferred duration for on-screen display message. Press buttons to select OSD Time option in sequence: 5, 10, 15, 20, 25 and 30 seconds. Daylight Saving Time Press buttons to select Daylight Saving Time, then press OK button to enter submenu.
  • Page 39 Press [MENU] to display the main menu. Press / to select Lock in the main menu, then press or [OK] to enter. Lock system Menu Options in TV Mode (Cont.) This allows you to turn the system lock on manually search and adjust channels. To change this Set Password Press buttons to select Set Password, then press OK...

  • Page 40: Setup Menu

    urce item you want to be locked. Menu Options in TV Mode (Cont.) nput source when you switch on the TV main unit. TV channel when you switch on the TV. Hotel Mode m volume value. Press buttons to select Hotel Mode, then press OK button to enter submenu. Press buttons to set Hotel Mode On or Off.

  • Page 41: Aspect Ratio

    Menu Options in TV Mode (Cont.) Menu Options in TV Mode (Cont.) PVR File System PVR File system (DTV only) Insert you USB device (FAT32 format only) into the USB Insert your USB device (FAT32 format only) into port. Press the USB port.

  • Page 42: Menu Options In Pc Mode

    Menu Options in PC Mode Make sure you have your computer properly connected to the TV and turn on both PC and TV. Press SOURCE button on your remote control and select PC from the input menu. The available menu will be displayed on the screen. Most of the menus have already been described in previous pages.

  • Page 43: Media (Usb) Mode

    Media (USB) Mode Media (USB) Mode Media (USB) Mode Plug in a USB device (with FAT32 format), then press SOURCE button to set the input source Plug in a USB device (with FAT32 format), then press [SOURCE] to set the input Plug in a USB device (with FAT32 format), then press [SOURCE] to set the input to Media.
  • Page 44 Media (USB) Mode (Cont.) Media (USB) Mode (Cont.) Media (USB) Mode (Cont.) Media - MUSIC Media - Music Media - Music Press / to select Music, then press Press / Press buttons to select MUSIC, then Press buttons to select the Press / to select Music, then press Press / press OK button to enter submenu.
  • Page 45 Media (USB) Mode (Cont.) Media (USB) Mode (Cont.) Media (USB) Mode (Cont.) Media - MOVIE Media - Movie Media - Movie Press / to select Movie, then press [OK] to enter. Press [DISPLAY] to show the Press buttons to select MOVIE, then press OK button to enter submenu. Press DISPLAY Press / to select Movie, then press [OK] to enter.

  • Page 46: Specifications

    Specifications MODEL GVAFLED32 Panel System 32” (80cm) FHD LED Panel Display Resolution 1920 x 1080 Television System Aspect Ratio 16:9 Display Colours 16.7M Colours Contrast 1200:1 Viewing Angle 170 (H) / 160 (V) Backlight Life 50,000 hours Pixel Pitch 0.36375 (H) x 0.36375 (V) Response Time 6.5ms...

  • Page 47: Wall Mounting Instructions

    Wall Mounting Instructions Wall Mounting Instructions Wall Mounting Instructions Wall Mounting Instructions Wall Mounting Instructions Wall Mounting Instructions Wall Mounting Instructions Attaching the base Attaching the base Attaching the base Place the screen face down on a protective Attaching the base Attaching the base Attaching the base Place the screen face down on a protective...

  • Page 48: Care And Maintenance

    Care and Maintenance Maintaining your TV If you clean your TV carefully and regularly, it helps your TV to last longer. Make sure you turn the power off and unplug the power cord on your TV before you begin to clean it. Cleaning the screen Here’s a great way to keep the dust off your screen.

  • Page 49: Responsible Disposal

    Responsible Disposal At the end of its working life, do not throw this appliance out with your household rubbish. Electrical and electronic products contain substances that can have a detrimental effect on the environment and human health if disposed of inappropriately. Observe any local regulations regarding the disposal of electrical consumer goods and dispose of it appropriately for recycling.

  • Page 50: Faqs

    FAQs Problem Action No picture, no sound Check that you have connected the TV power cord properly and switched the wall socket on. Check that you have turned on the POWER button on your TV. Check the picture contrast and brightness setting.
  • Page 51 FAQs Problem Action No Colour, poor quality colour, Change the colour setting on the PICTURE MENU. poor quality image Keep a distance between your TV and any VCR you may be using Try watching another channel. The problem may be with the channel you’re watching. Are the video cables installed properly? Change the setting of picture brightness on PICTURE MENU.
