Summary of Contents for GVA G24HTV16

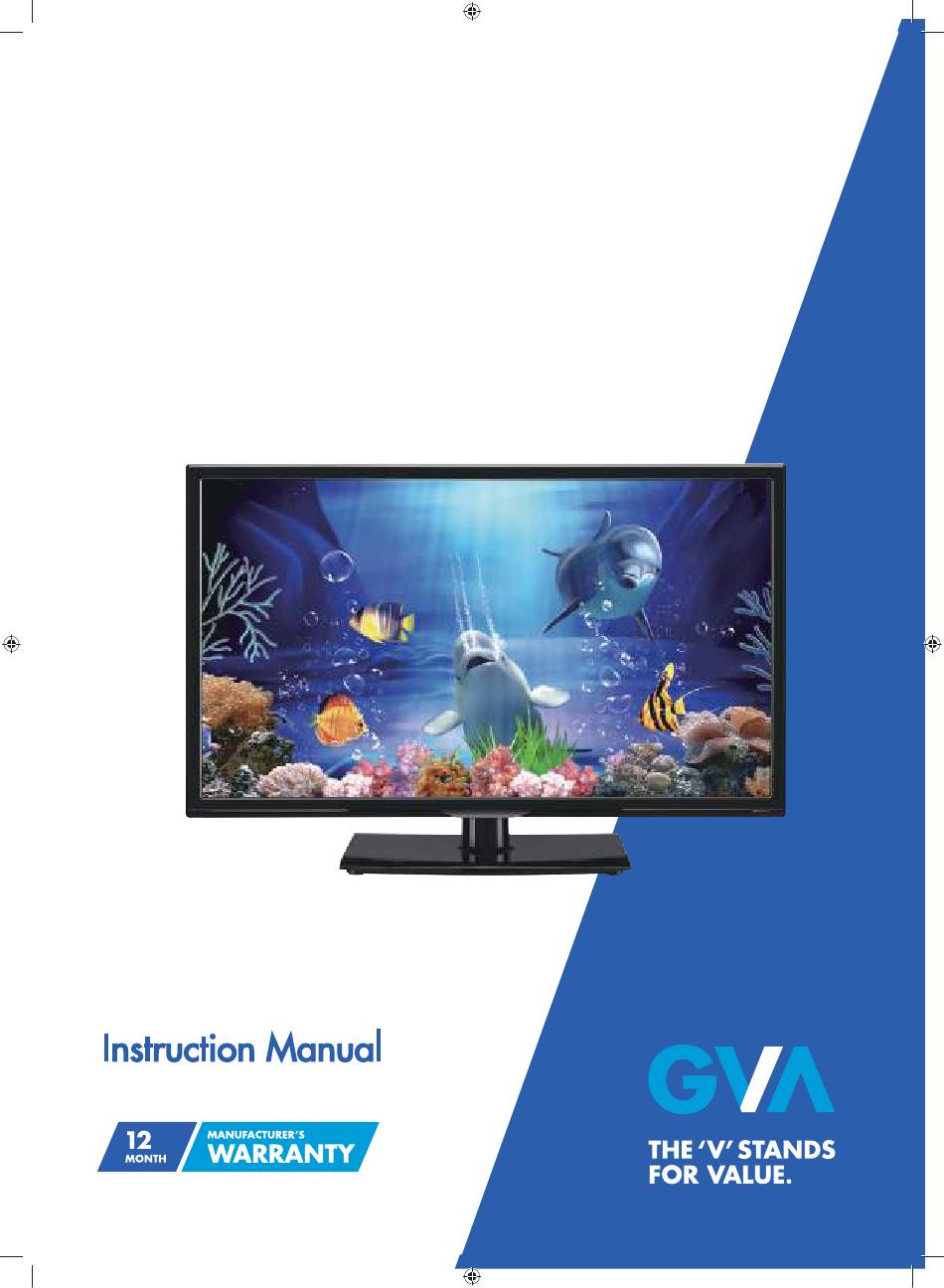

- Page 1 23.6” (60cm) HD LED LCD TV G24HTV16 G24HTV16_IB_160630-V2_Annie.indd 1 30/6/16 下午5:44...
-
Page 2: Table Of Contents
Contents Guide to the Television ........................4 Front / Right Side View and Rear Controls ......................... 4 Rear View and Sockets ............................5 Remote Control ............................... 6 Installing Batteries in the Remote Control ........................9 Remote Control Operation Range ..........................9 Turning the TV On for the First Time ........................ - Page 3 − Audio Languages (DTV Mode) ........................37 − Subtitle (DTV Mode) ............................38 − Teletext ................................ 39 − Blue Screen ..............................40 − Mode Setting ..............................40 − Time Settings ..............................41 − HDMI CEC Control ............................43 − PVR Settings (DTV Mode) ..........................44 −...
-
Page 4: Guide To The Television
Guide to the Television Front / Right Side View and Rear Controls INPUT Item Description Receives IR signals from the remote control. IR (Infrared Receiver) Do not put anything near the sensor, as its function may be affected. Illuminates blue when the TV is turned on. Illuminates red when the TV is in POWER LED standby mode. -
Page 5: Rear View And Sockets
Guide to the Television Rear View and Sockets Digital Audio Output HEADPHONE PC AUDIO (Coaxial) Item Description HEADPHONE Connects to the headphones. PC AUDIO / VGA Connects to a computer or other devices with a VGA interface. Connects to a DVD player, Digital Set-Top-Box, or other AV devices with component Y, PB, PR / AUDIO (L/R) (YPbPr) video and audio output sockets. -
Page 6: Remote Control
Guide to the Television Remote Control Infrared LED Sending IR signals to TV. Do not put anything near the sensor, as its function may be affected. Switch the TV between on and standby mode. Mute and restore your TV sound. SLEEP Set the TV sleep timer: OFF / 5 / 15 / …... - Page 7 Guide to the Television Allows you to navigate the OSD menus and adjust the system settings to your preference. Confirm the selection in the OSD menus. 18. BACK Return to the previous menu in the OSD menus. 19. Exit Exit the OSD menu. DVD SETUP Display and exit the DVD setup menu.
- Page 8 Guide to the Television 30. TEXT Turn on and off the teletext function. (DTV mode) ZOOM Zoom in on the displayed frame. (DVD mode) 31. FAV Display the favourite channel list. (ATV / DTV mode) (DVD) MENU Display the DVD menu. (DVD mode) 32.
-
Page 9: Installing Batteries In The Remote Control
Guide to the Television Installing Batteries in the Remote Control Press and lift the back cover to open the battery compartment of the remote control. Insert two AAA size batteries. Make sure the (+) and ( - ) ends of the batteries match the (+) and ( - ) ends indicated in the battery compartment. -
Page 10: Turning The Tv On For The First Time
Guide to the Television Turning the TV On for the First Time • This instruction manual explains the basic instructions for operating this unit. Some DVDs are produced in a manner that allows for specific or limited operation during playback. Therefore, this unit may not respond to all operating commands. - Page 11 Guide to the Television button to select Mode Setting. Press the Press the buttons First Time Setup to select your desired mode. If select Store Mode, a pop-up menu OSD Language English Mode Setting Home Mode will be display. Press the OK button to confirm or press any button Country Australia to cancel and return to the Mode Setting menu.
-
Page 12: Selecting The Input Source
Guide to the Television Selecting the Input Source Press the INPUT button on the TV or on the remote control to INPUT SOURCE display the INPUT SOURCE list. Press the buttons to select the input source that you want: DTV / ATV / AV / YPbPr / HDMI / PC / USB. YPbPr Press the OK button to confirm your selection. -
Page 13: Caring For The Environment
Caring for the Environment Responsible Disposal of the Packaging The packaging of your television has been selected from environmentally friendly materials and can usually be recycled. Please ensure these packing materials are disposed of correctly. Plastic wrapping can be a suffocation hazard for babies and young children, please ensure all packaging materials are out of reach and are safely disposed of. -
Page 14: Safety Information And Warnings
Safety Information and Warnings Symbols The graphic symbols used in this manual or on the back cover of the set mean the following: Read this manual in full before use The lighting flash symbol is intended to alert the user to the enclosures that contain hazardous voltages The exclamation symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 15 Safety Information and Warnings If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as: • Using cabinets or stands recommended by the manufacturer of the television. •...
-
Page 16: Item In The Box
Item in the Box Remove all packaging from the TV. Retain the packaging. If you dispose of it please do so according to local regulations. The following items are included: AUDIO TV Stand Support Remote Control / AAA Batteries x 2 TV Base Screw (TA3 x 10mm) x 6 Instruction Manual... -
Page 17: Basic Set Up
Basic Set Up The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. -
Page 18: Mounting The Tv To A Wall
Basic Set Up Mounting the TV to a Wall • Remove the stand assembly before mounting the TV onto the wall. • It is recommended that two people take part in the installation. To remove the stand assembly, untighten the screws holding the stand assembly to the rear of the TV. Slide the stand assembly out. -
Page 19: Advanced Connection Diagrams
Advanced Connection Diagrams Making Video and Audio Connections Not all AV devices have the ability to connect to a TV, please refer to the owner’s manual of your AV device for compatibility and connection procedures. When connecting any external AV device, do not connect the mains cable to the mains socket until all other connections are complete. -
Page 20: Connecting A Computer Using A Vga Cable
Advanced Connection Diagrams Connecting a Computer Using a VGA Cable Use a VGA cable to connect the TV’s VGA Rear Right Bottom View of TV input socket to a computer’s VGA output Digital Audio Output HEADPHONE PC AUDIO socket. Use an audio cable to connect the (Coaxial) TV’s PC AUDIO input socket to the computer’s audio output socket. -
Page 21: Connecting An Av Device Using Composite Cable
Advanced Connection Diagrams Connecting an AV Device Using Composite Cable Connect the supplied composite adapter cable Rear Right Side View of TV and an AV cable (not included) to connect the AV INPUT TV’s AV input socket to an external AV device’s HDMI VIDEO composite audio/video sockets. -
Page 22: Connecting Headphones
Advanced Connection Diagrams Connecting Headphones Connect your headphones to the TV’s HEADPHONE Rear Right Bottom View of TV socket. Digital Audio Output HEADPHONE PC AUDIO (Coaxial) Before putting on the headphones, turn the volume down then put the headphones on and slowly increase the volume until you reach a comfortable listening level. -
Page 23: Advanced Features
Advanced Features Picture Setting Allows you to set your preferred picture mode. Press the MENU button to display the main menu. Press the buttons to select the PICTURE menu and then press the button or the OK button. Picture Press the buttons to select the following options, and then press Picture Mode Standard... -
Page 24: Sound Setting
Advanced Features Sound Setting Allows you to select an audio-enhancement technique. Press the MENU button to display the main menu. Press the buttons to select the SOUND menu and then press the button or the OK button. Sound Press the buttons to select the following options, and then press Sound Mode Standard... -
Page 25: Channel Setting
Advanced Features Mono sound selection If the stereo signal is weak, you can switch to mono by pressing the AUDIO button. In mono reception, the clarity of sound is improved. To switch back to stereo, press the AUDIO button again. Language selection for dual language broadcast If a programme can be received in two languages (dual language), you can switch to NICAM DUAL I, NICAM DUAL II, NICAM DUAL I+II or MONO by pressing the AUDIO button repeatedly. -
Page 26: Dtv Manual Scan (Dtv Mode)
Advanced Features button to select Start and then press the OK button or Press the button to start auto tuning. Auto Scan Country Australia Mode Start Move OK: Select MENU: Return EXIT: Exit Channel tuning will commence. This operation may take up to few Auto Scan minutes. -
Page 27: Atv Manual Scan (Atv Mode)
Advanced Features button to select Digital Scan and then press the Press the buttons to selects the desired channel number. button to select Start and then press the OK button to Press the Digital Manual Scan commence the search of that channel. When the signal has been Digital Scan CH 8 tuned, the frequency and strength will be displayed on the screen. -
Page 28: Auto Channel Update (Dtv Mode)
Advanced Features Selects the AFC (Auto Frequency Channel) On / Off. button to select Start and then press the OK button to Press the commence the search of that channel. Press the MENU button to return to the previous menu, press again to return to the main menu. -
Page 29: Channel Edit (Atv Mode)
Advanced Features buttons to select Channel Edit and then press the Press the OK button or the button to enter the Channel Edit menu. Channel Auto Scan Manual Scan Auto Channel Update Channel Edit Favourite Manager Signal Information Move OK: Select MENU: Return EXIT: Exit A Channel Edit screen will be displayed. -
Page 30: Favourite Manager
Advanced Features A Channel Edit screen will be displayed. Press the buttons to select the programme you want to edit. a. Delete Channel Edit Press the RED button to delete the selected channel. S-07 S-08 b. Skip S-09 S-10 Press the GREEN button to select the channels that you want to skip when you are selecting channels. -
Page 31: Signal Information (Dtv Mode)
Advanced Features Signal Information (DTV Mode) Allows you to view the signal information. Press the MENU button to display the main menu. Press the buttons to select the Channel menu and then press the button or the OK button. Channel Auto Scan Manual Scan Auto Channel Update... -
Page 32: Lock Setting
Advanced Features Lock Setting To access the Lock System menu, you must enter the password. Enter the default password “0000” for first time use. To change the password, refer to “New Password” (see below). Lock System The Lock System is designed to prevent accidental re-tuning of the TV / losing of channels and to prevent children from watching unsuitable programmes. -
Page 33: Channel Locks
Advanced Features Channel Locks Block Channel is designed to prevent children from watching unsuitable programmes. The Lock System must be set to On for this function to operate. When a channel is blocked, a valid password must be entered. Press the MENU button to display the main menu. Press the buttons to select the Lock System and then press the button or the OK button. -
Page 34: Parental Rating (Dtv Mode)
Advanced Features Parental Rating (DTV Mode) This function allows you to set up blocking schemes to block specific channels and ratings. It operates according to information from the broadcasting station, therefore if the signal has incorrect information, this function will not operate. This TV is programmed to remember the last option set even if the TV is switched off. -
Page 35: Lock Keypad
Advanced Features Lock Keypad Lock Keypad is designed to prevent children from pressing the buttons on the TV. The Lock System must be set to On for this function to operate. If the Lock Keypad is set to On, all buttons on the TV will be locked. All TV operations can be controlled by the remote control only. -
Page 36: New Password
Advanced Features New Password Press the MENU button to display the main menu. Press the buttons to select the Lock System and then press the button or the OK button. Lock System Enter Password – – – – Enable Channel Block Parental Rating No Block Lock Keypad... -
Page 37: Setup Setting
Advanced Features buttons to select Clear Lock and then press the OK Press the button or the button. All settings in Lock System will reset to the factory defaults. Lock System Press the MENU button to return to the previous menu, press again Enter Password –... -
Page 38: Subtitle (Dtv Mode)
Advanced Features buttons to select Audio Language and then press Press the the OK button or the button to enter Audio Language menu. Setup OSD Language English Audio Language Subtitle Teletext Blue Screen Mode Setting Home Mode Time Settings HDMI CEC Control Move OK: Select MENU: Return EXIT: Exit... -
Page 39: Teletext
Advanced Features Press the buttons to select the following options, and then press buttons to adjust each option’s setting or OK button to select the options. Subtitle Mode Allows you to turn On / Off the subtitle. Mode Subtitle Primary Language English Subtitle Allows you to select your desired subtitle primary... -
Page 40: Blue Screen
Advanced Features Press the buttons to select the following options, and then press buttons to adjust each option’s setting or OK button to select the options. Teletext Digital Allows you to selects an available language as Digital Teletext Language English Decoding Page Language West Teletext... -
Page 41: Time Settings
Advanced Features buttons to select Mode Setting and then press the Press the buttons to select Home Mode or Store Mode. Press the MENU button to return to the previous menu, press again Setup to return to the main menu. OSD Language English Audio Language... - Page 42 Advanced Features Sleep Timer The sleep timer automatically switches the TV to standby after the preset time has elapsed. The clock will be set automatically when receiving a digital signal. Time must be set before using Sleep Timer function. Selects a period of time after which the TV automatically switches to standby mode: OFF / 5 / 15 / …...
-
Page 43: Hdmi Cec Control
Advanced Features HDMI CEC Control Allows you to command and control two or more HDMI CEC (Consumer Electronics Control) compliant devices, that are connected through HDMI, by using only one of the remote controls (e.g. controlling a TV set, set-top box and DVD player using only the remote control of the TV). -
Page 44: Pvr Settings (Dtv Mode)
Advanced Features This will allow you to control other CEC enabled devices (connected via HDMI) using HDMI CEC buttons to select HDMI CEC Control and then your TV remote control. Press the Control buttons to turn On. press the To display the setup menu of the connected HDMI-CEC compliant devices on the screen. buttons to select CEC Menu Control and then press the OK button or the Press the buttons and then press the OK button or the... -
Page 45: Oad (Over Air Download)
Advanced Features File Manager Displays the scheduled recorded list. File Manager Scheduled Record Standby Replay Press the RED button to replay the video. Function Replay Delete Press the GREEN button to delete the Delete One Delete All video. Zoom In/Out Current Playing File Info Hot Key Channel Name... -
Page 46: Restore Factory Default
Advanced Features Press the buttons to select the following options, and then press buttons to adjust each option’s setting or the OK button to select the options. Manual OAD Allows you to download the latest firmware Manual OAD Download Auto Download Download manually. -
Page 47: Epg (Electronic Programme Guide) (Dtv Mode)
Advanced Features EPG (Electronic Programme Guide) (DTV Mode) This system has an Electronic Programme Guide (EPG) to help you navigate through all the possible viewing options. The EPG supplies information such as programme listings, start and end times for all available services. In addition, detailed information about the programme is often available in the EPG (the availability and amount of programme information will vary, depending on the particular broadcaster). -
Page 48: Digital Teletext (Dtv Mode)
Advanced Features Digital Teletext (DTV Mode) Digital teletext can access special digital teletext services and specific services which broadcast digital teletext. You will need to turn off Subtitle Function before using teletext (refer to page 38 for details). Teletext within Digital Service In DTV mode press the TEXT button to display the main information page. -
Page 49: Connecting A Usb Storage Device
Advanced Features Connecting a USB Storage Device Switch off the TV before connecting any USB Rear Right Side View of TV storage device. AV INPUT HDMI VIDEO Connect your USB storage device to the USB port of your TV. Plug the connected devices into the mains socket before switching on the TV. -
Page 50: Listening To Music
Advanced Features Press the buttons to navigate in the picture folder and then press the OK button to play the slideshow. Supported file formats: JPG. Press the OK button or the i button to display the function bar. Press the OK button to play / pause the slideshow. Press the buttons to select the previous or next photo. -
Page 51: Viewing Movies
Advanced Features Viewing Movies Press the INPUT button on the TV or on the remote control then buttons to select the USB mode and then press the press the OK button. buttons to select MOVIE and then press the OK Press the button. - Page 52 Advanced Features Press the buttons to navigate in the text folder and then press the OK button to view. Press the buttons to go to previous or next page. Use 0-9 buttons to goto the specified page. Press the BLUE button to enter the Quick Menu. And then press buttons to select the functions: Repeat / Background Music / Encode Type.
-
Page 53: Time Shift Function
Advanced Features Time Shift Function This function allows you to pause live TV. The picture will pause and the programme will begin recording so you will not miss any of the programme. You need to have a USB storage device attached to the USB socket for Time Shift Recording to work. -
Page 54: Recording Dtv Programme Onto A Usb Storage Device
Advanced Features Recording DTV Programme onto a USB Storage Device Use this function to record the DTV programme you are watching on the main screen and save it for future viewing. The recording from timer programme or direct recording may have a little bit of delay when it starts to record the broadcast programme. -
Page 55: Timer Programming (Dtv Mode)
Advanced Features Timer Programming (DTV Mode) This function is used to perform scheduled recording. The recording from timer programme or direct recording may have a little bit of delay when it starts to record the broadcast programme. Please make sure the USB device is inserted. If not, a warning message will pop up. Press the GUIDE button on the remote control. - Page 56 Advanced Features buttons to select the first digit of hour. Use the 0-9 Press the Scheduled Record - Group 1 buttons and the buttons to enter the Hour and Minutes. Setting Status Setting Is Not In Use Frequency Once Hot Key Channel 4Music Move Up...
-
Page 57: Play Recorded Programme
Advanced Features Play Recorded Programme You can play a recorded programme from the File Manager or from a USB Storage Device. From File Manager Press the MENU button to display the main menu. Press the buttons to select the Setup and then press the button or the OK button. - Page 58 Advanced Features From a USB Storage Device Press the INPUT button on the TV or on the remote control and then buttons to select the USB mode and then press the OK press the button. buttons to select MOVIE and then press the OK button. Press the Press the buttons to select your storage device and then press...
-
Page 59: Troubleshooting
Troubleshooting The following table contains various hints and tips to get the best performance from your TV. If you require additional assistance, please call our our customer care center on 1300 725 885. The TV does not operate properly. • The TV may freeze up during use. Disconnect the mains plug from the mains The TV does not respond socket for a few minutes. - Page 60 Troubleshooting Password • Select the New Password setting in the Lock System menu, then enter the Lost password following master password “8899”. The master password clears your previous password and allows you to enter a new password. There is a problem in PC mode. The signal is out of range •...
-
Page 61: Other Information
Other Information Maintenance Careful and regular cleaning can prolong the life of your TV. Be sure to press the button on the rear panel of the TV or on the remote control to turn off the TV. Disconnect the mains cable from the mains socket before any cleaning. Use a soft dry cloth to wipe away the dust from the screen and surfaces. -
Page 62: Display Modes
Other Information Display Modes The screen resolution has been optimised during production for the display modes listed below. Although this TV is compatible with a 1080i/1080p input, it is possible that the screen may not display the exact resolution this resolution and consequently the picture quality will be adjusted accordingly. -
Page 63: Technical Specifications
Technical Specifications Model no. G24HTV16 Display screen type Direct LED Display Display size 24" Diagonal Viewing angle 178° / 178° (H / V) Aspect Ratio 16:9 Resolution 1366 (H) x 768 (V) Power supply AC 100-240V ~50/60Hz TV receiver PAL/SECAM: BG, DK, I & DVB-T Frequency range Analogue: 46.25MHz ~ 814.25MHz... - Page 64 While every effort has been made in the preparation of this instruction manual, the publishers cannot be held responsible for the accuracy of the information contained herein or any consequences arising from it. (IB-G24HTV16-160630V3) G24HTV16_IB_160630-V2_Annie.indd 64 30/6/16 下午5:48...
