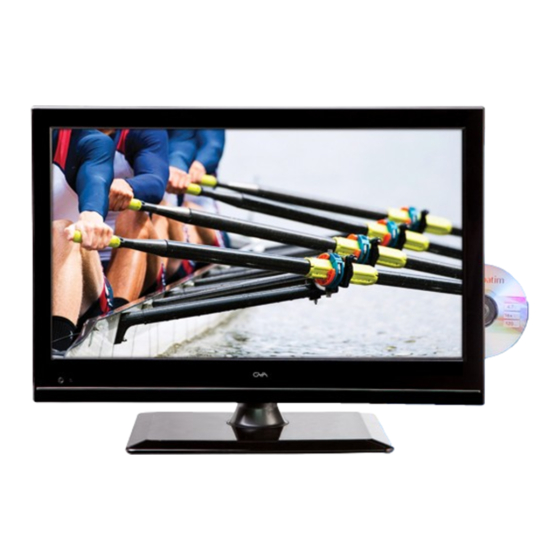

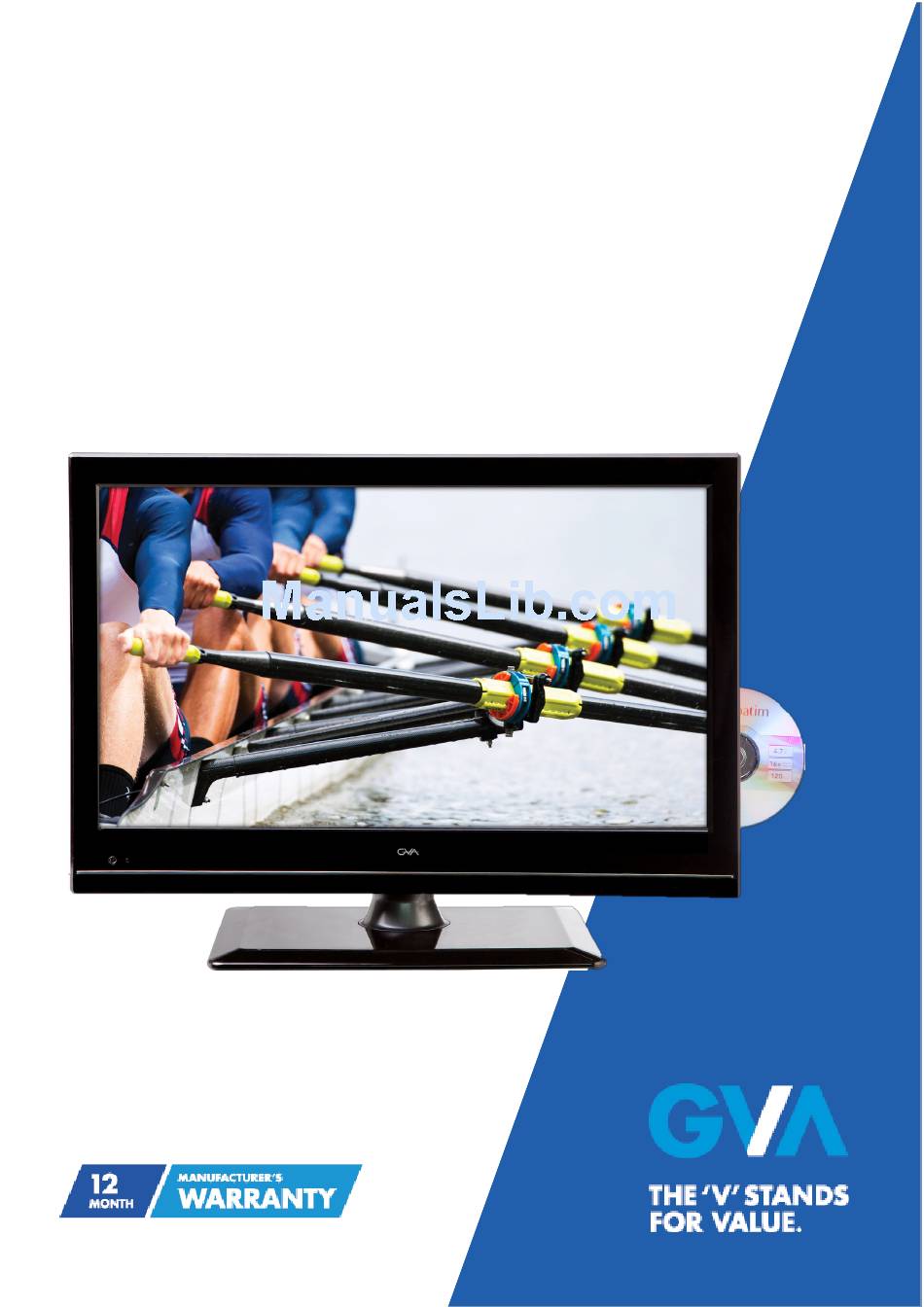

- Page 1 21.5” (54cm) FHD LED LCD TV With Built-in DVD Player GVA22FLEDCJ Instruction Manual...
-
Page 2: Table Of Contents
Contents Important safety instructions Connections and functions Accessories list Remote control Inserting batteries Using the remote control Installing the antenna Connecting your equipment to the TV Connecting a VCR or video camera Connecting earphones Connecting a satellite/cable TV set top box, Watching cable/pay TV Connecting an external DVD player Connecting a PC Getting started... -
Page 3: Important Safety Instructions
Important safety instructions Read this manual thoroughly before first use and keep it in a safe place for future reference, along with the warranty card, purchase receipt and carton. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. - Page 4 Important safety instructions (Cont.) Installation Only install this TV set in accordance with the manufacturer’s instructions. If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. To prevent injuries from your television falling, take a few simple precautions: Only use furniture that can safely support the television.
- Page 5 Important safety instructions (Cont.) Electrical safety and cord handling Before installing this TV set, make sure your outlet voltage corresponds to the voltage stated on the appliance rating label. To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture;...
- Page 6 Important safety instructions (Cont.) Usage conditions and restrictions Follow the instructions in this manual when installing and adjusting the TV set. Only adjust those controls that are covered in this instruction manual, as improper adjustment of other controls may result in damage. If this happens, unplug the TV set and have it serviced by appropriately qualified personnel, or phone the after sales support line for advice.
- Page 7 Important safety instructions (Cont.) Cleaning and maintenance To reduce the risk of fire and electric shock, always unplug the TV before cleaning. Wipe off any moisture, dirt or dust on the power plug pins with a clean, dry cloth. Failure to do so may result in fire or electric shock. Only use a soft, dry cloth for cleaning the TV set.
-
Page 8: Connections And Functions
Connections and functions SOURC E 1 Power ON/OFF 2 Select the input signals/Exit the menu (SOURCE) 3 MENU 4 TV channel down/down orientation (CH-) 5 TV channel up/up orientation (CH+) 6 Volume down/left orientation (VOL -) 7 Volume up/right orientation (VOL+) 8 Open/Close the DVD ( ) 9 Play/Pause the DVD ( ) -
Page 9: Accessories List
Accessories list The c ration of the components ma erent. The following illustration is for representation only. Instruction Remote Batteries manual control Adaptor Customer Help Line TEL: 1300 886 649... -
Page 10: Remote Control
Remote control The buttons The buttons on the remote control and similarly marked ones on the main unit perform similar functions. POWER ( ) Power/standby MUTE ( ) Press to mute or restore the volume SOURCE Input source PMODE Picture mode SMODE Sound mode AUDIO I/II... - Page 11 Remote control (Cont.) Media, PVR and other buttons TITLE Return to the title in DVD mode (TITLE) GOTO Select the GOTO time in DVD mode ANGLE Change the angle in DVD mode (only when it is available) REPEAT Select repeat mode in DVD mode Repeat from A to B in DVD mode / / / Shortcut buttons in TV and Media mode...
-
Page 12: Inserting Batteries
Remote control (Cont.) Inserting batteries 1. Open the cover at the back of the remote control unit completely. 2. Insert two 1.5V AAA batteries, ensuring the polarities (+ / -) of the batteries are correctly aligned and the batteries are properly pushed into place so they can power the remote control unit. -
Page 13: Installing The Antenna
Installing the antenna Make sure to connect the coaxial cable to the analog/digital input of the TV. Wall jack with F-connector Coaxial antenna cable Analog + digital 75 Ω External antenna Using a dipole antenna Dipole antennas may be used with your VIVID television by connecting directly to the RF port on the back of your television (see diagram). -
Page 14: Connecting Your Equipment To The Tv
Connecting your equipment to the TV Connecting a VCR or video camera Connection to the terminals of other equipment may differ depending on the brand and model. Video Composite cable Connect a composite cable from the LED LCD TV’s Composite In terminal to the VCR’s Composite Out terminal, making sure to match the colours of the terminals to the colours of the plugs. -
Page 15: Connecting A Satellite/Cable Tv Set Top Box, Watching Cable/Pay Tv
Connecting your equipment to the TV (Cont.) Connecting a satellite/cable TV set top box Connecting to the Composite terminal In order to watch cable/pay TV, you must subscribe to your local pay TV provider and install its separate receiver (set top box). Connection to the terminals of other equipment may differ depending on brand and model. -
Page 16: Connecting An External Dvd Player
Connecting your equipment to the TV (Cont.) Connecting an external DVD player Connecting to the Component terminal Connection to the terminals of other equipment may differ depending on the brand and model. Component connection cable 1. Connect a component cable from the LED LCD TV’s Y, Pb, Pr terminals to the DVD’s Out terminals. -
Page 17: Connecting A Pc
Connecting your equipment to the TV (Cont.) Connecting a PC Connection to the terminals of other equipment may differ depending on the brand and model. NOTE: Please check your PC instruction manual for the correct settings. PC Audio Cable Analog RGB (D-Sub 15 pin) cable 1. -
Page 18: Getting Started
Getting started Powering the LED LCD TV To turn the power ON or OFF: 1 Make sure the power cable is properly plugged in. 2 Turn on the power by pressing the switch at the back of the TV. 3 Press the POWER button on the remote control. NOTE: Make sure you are aiming the remote control unit at the sensor at the front of the TV. -
Page 19: Operating The Menus
Operating the menus 1. Press the MENU button on the remote control, the on-screen menu will appear on the screen. 2. Use the left and right navigation keys to select your main option. The main menu items, from left to right, are: Channel Picture Sound... - Page 20 Operating the menus (Cont.) Auto Scan In the Auto Scan submenu you can select your country and the tune type: DTV+ATV, DTV only and ATV only. Press / / / to make your selection, then press ENTER to start scanning. When DTV+ATV is selected, half the scanning is for analog TV channels and the other half for digital channels.
- Page 21 Operating the menus (Cont.) DTV Manual Tuning 1. Use the left/right navigation keys to select a channel, then press ENTER to confirm if any signal strength shows. 2. Press ENTER to confirm tuning (only in DTV mode). ATV Manual Tuning Storage To: Select a position (from 1 to 100) to store the channel.
- Page 22 Operating the menus (Cont.) Program Edit Encryption Skip Lock System Identity Name Identity Identity Identity ABC1 In the Program Edit submenu, you have various options for setting up your channels, including Delete, Move, Rename, Skip, Lock and Favourite. NOTE: Skip and Favourite cannot be used together. DELETE: Press the RED button to delete the current channel.
-
Page 23: Picture Menu
Operating the menus (Cont.) Picture menu Picture Mode Change the picture display mode with the right/left / navigation keys. You can select from Standard, Mild, User and Dynamic modes. NOTE: You need to set Picture Mode to User to be able to adjust contrast, brightness, colour and sharpness. - Page 24 Operating the menus (Cont.) Contrast / Brightness / Colour / Sharpness Use the / keys to switch between contrast, brightness, colour and sharpness, then use the / keys to adjust the values. Colour Temperature Use the / keys to adjust the value, you can select Normal, Cool, Warm or User.
-
Page 25: Sound Menu
Operating the menus (Cont.) Sound menu Sound Mode Use the / keys to change modes, you can select from Standard, Music, Movie, Sports or User. NOTE: You can select treble, bass, balance. To adjust the setting, change the mode turn to user automatically Treble/ Bass/ Balance Use the / keys to switch between treble, bass and balance, then use the / keys to adjust the value. -
Page 26: Time Menu
Operating the menus (Cont.) Time menu Clock Use the / keys to select Clock, then use the / keys to set the time. NOTE: You cannot change the time manually in DTV mode, as the time comes directly from a signal source. Off time You can set the time when the TV set will be turned off automatically, you can also set the frequency:... - Page 27 Operating the menus (Cont.) On time You can set the time when the TV set will be turned on automatically, you can also set the frequency, volume and program. Repeat options Hour/Minute To change the time, use the / keys to select this option, then use the / keys to adjust the time.
-
Page 28: Option Menu
Operating the menus (Cont.) Option menu OSD language Use the / keys to select this option, then select your preferred on-screen display language. Audio language 1st/2nd Use the / keys to select this option, then select your preferred 1st and 2nd audio language (in DTV mode only). -
Page 29: Lock Menu
Operating the menus (Cont.) Lock menu Lock System you cannot manually search and adjust channels. To change this setting, you must enter a password: the default password is “0000”. Set Password password is wrong, “password doesn’t match” will appear on the screen. Press the key to exit and go back to main menu. -
Page 30: Other Menus
Operating the menus (Cont.) Hotel Setting Allows you to Enable and Disable various features of the TV. Hotel Lock: Enable or Disable the feature Lock Channel: Enable or Disable access to the Channel Menu Set Source: Set the default Input Source Channel Number : Use with Set Source options Picture Lock: Enable or Disable access to the Picture Menu Key Lock: Enable or Disable buttons on TV... - Page 31 Operating the menus (Cont.) EPG (Electronic Program Guide) EPG stands for Digital Electronic Program Guide. It is supplied by the program providers and offers information about the programs to be broadcast. You can access it in digital mode by pressing the EPG button on the remote control, the menu will appear on the screen, as below: NOTE: When the TV is first turned on (in DTV mode), no EPG information is displayed.
-
Page 32: Multimedia Menus
Operating the menus (Cont.) Multimedia menus Press the SOURCE button on the remote control, then choose USB to enter Multimedia mode. Make sure you have an appropriate USB device connected. Your options are as below, from left to right: PHOTO MUSIC MOVIE TEXT... - Page 33 Operating the menus (Cont.) Photo submenu In the Photo submenu, your chosen picture and details will be displayed in a preview frame. Press to display it in full screen mode, press OK again for more options, as below: Repeat: Press OK and choose between three repeat modes: Repeat 1, Repeat All, Repeat none.
- Page 34 Operating the menus (Cont.) Music submenu in a preview frame. Press to enter full screen music mode. Music will be played back just like on a PC with the appropriate software. There is a playlist, basic information, processing sign, operation guide part, as below: Repeat: Choose between Repeat 1, Repeat All, Repeat none.
- Page 35 Operating the menus (Cont.) Movie submenu In the Movie submenu, your movie will be displayed in a preview frame. Press to display it in full screen mode, press OK again for more options, as below: Repeat: Choose between Repeat 1, Repeat All, Repeat none. Set A: Choose this function to repeat playback of a certain section (A-B).
-
Page 36: Pvr (Personal Video Recorder)
Operating the menus (Cont.) PVR (Personal Video Recorder) This TV features a PVR recording and playback function which lets you: • Instantly record a TV program (via the one-touch recording button on the remote control). • Time-shift playback of a digital television program. •... - Page 37 Operating the menus (Cont.) Format If your USB device is recognised and working, you can select Format. size). IMPORTANT: If you select Format, all data will be deleted! Press the / keys to select PVR File System Type, then press OK to format the USB device.
- Page 38 Operating the menus (Cont.) Recording Select “Record Start” from the Channel menu and press the OK button to start recording. To stop recording, select Stop in the operation menu (see the bar below) and press the OK button to operate. NOTE: You can also press the REC button to start (and the button to stop) recording directly.
-
Page 39: Important Notes
Operating the menus (Cont.) Info Press the INFO button to display or close program information. Record mode Enter Record Mode via the Channel menu. Mode: every day, weekly, Auto. Start Time: Set the date and time to start recording. End Time: Set the date and time to end recording. Important notes When using the Media function, remember the following important points: •... -
Page 40: Some Points About Disc
Operating the menus (Cont.) Some points about discs The following types of disc can be played on this unit: Region number The region number (Regional Restriction Code) is built into this unit. This unit can play region number 4 DVD video discs. DVD video discs DVD video discs are divided into titles, and the titles are subdivided into chapters. -
Page 41: Using The In-Built Dvd Player
Operating the menus (Cont.) Using the in-built DVD player Insert the DVD disc into the DVD slot. Be sure to have label side of DVD facing the front of the TV. If the disc is inserted incorrectly, it will be ejected. The DVD Player will accept and play your DVD disc automatically, even when the TV is in DTV mode. -
Page 42: Language Setting
Operating the menus (Cont.) Language setting Aspect Ratio :16:9 View Mode :Auto Fit TV System :PAL Aspect Ratio: Select aspect ratio, you can select 16:9 or 4:3. View Mode: Select view mode. TV System: Select TV system standard, you can select PAL/NTSC. Audio setting Digital Output ... -
Page 43: Faqs
FAQs Do not use any other function that is not mentioned in this instruction manual. If you experience any problems with your LED LCD TV, check the list below and take any necessary steps before calling for service. If the problem still occurs, turn the power off... -
Page 44: Specifications
Specifications Model GVA22FLEDCJ Panel system 54cm (21.5”) FHD LCD LED panel Display resolution 1920 × 1080 Television system HD DVB-T, PAL DK/BG/I, SECAM DK/BG Inputs/outputs ATV/DTV(RF 75 ) CVBS input/audio(L/R) HDMI input YPbPr VGA input PC audio input Storage Multimedia format support...
