Notes: MyChron 3 Plus/Gold CAR technical documentation, dimensions and pinout –
Introduction
MyChron 3 Plus/Gold CAR represents the new generation of Aim data acquisition systems that
provides the driver with a wide, easy to use and multifunctional display.
MyChron 3 Plus/Gold CAR monitors and displays RPM, 4 analog inputs (temperatures or
pressures for Plus version, temperature, pressures, potentiometers and Lambda sond for Gold
version), speed, current gear number and lap (split) times. It has a backlight, which can be
switched on during night racing.
The logger records the following parameters:
Data is stored in a huge internal flash memory (512 kbyte for Plus version and 8 Mbyte for Gold
one) and is downloaded to a PC through an USB cable.

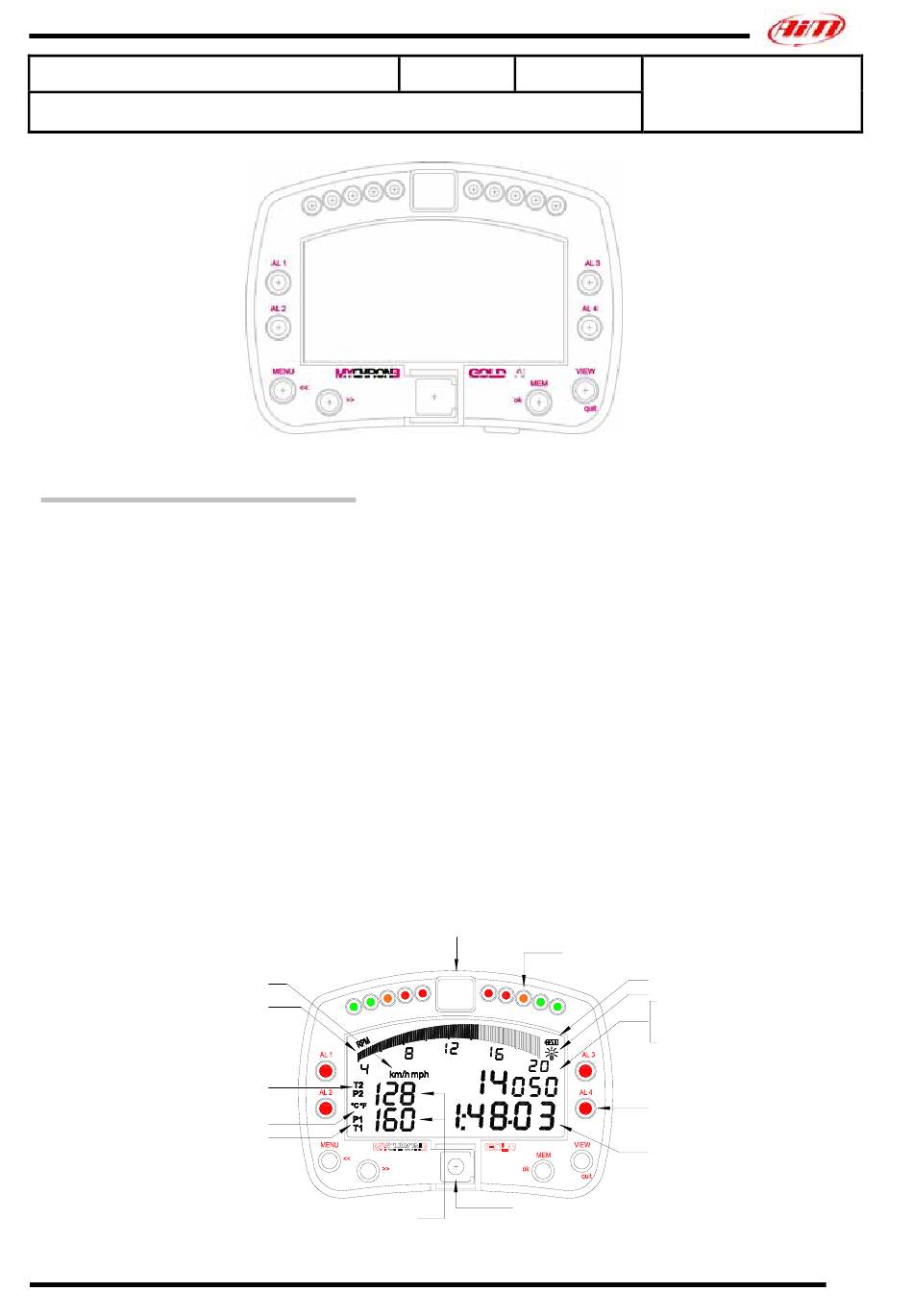

For further information concerning the gauge's display, refer to the following drawing.
Speed unit of measure
RPM graphical bar
Configurable RPM scaling
2nd displayed channel
Temperature unit of measure
1st displayed channel
Version 1.01

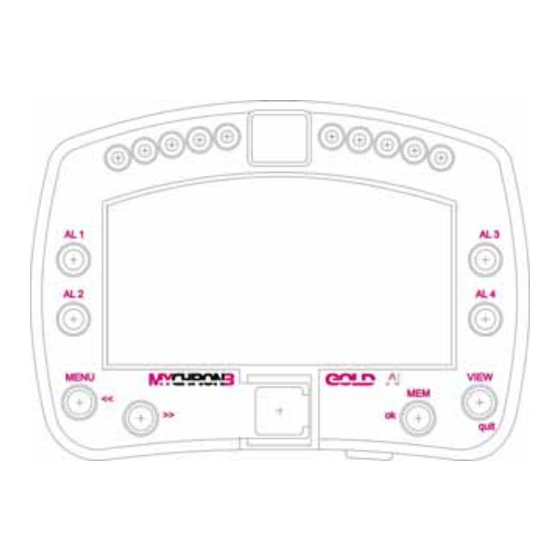

Figure 1: MyChron 3 Plus/Gold Car
•
4 analog inputs;
•
engine's RPM;
•
lap and split times;
•
engaged gear number;
•
1 speed input;
•
lateral acceleration (MyChron 3 Gold only);
•
logger battery voltage;
•
logger temperature;
Displayed channels
Figure 2: MyChron 3 Plus/Gold Car display unit
04/06/2004 GAUGE
Gear display
10 fully configurable shift lights
USB port
MyChron 3 Plus/Gold CAR – Version 1.01
MyChron 3 Plus/Gold
CAR
Low battery warning
Night vision
RPM digital value
Speed
Best lap time
Battery voltage
4 alarm led:
from "AL 1" to "AL 4"
Lap / Split times
1
