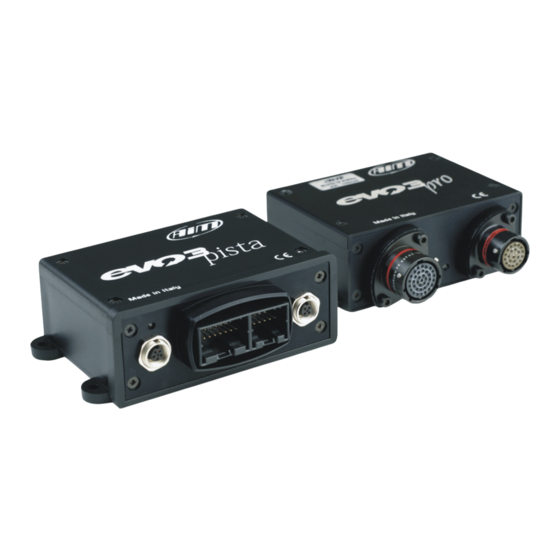

EVO3 Pro/Pista
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the evo3 pro and is the answer not in the manual?

Questions and answers

Related Manuals for Aim evo3 pro

Summary of Contents for Aim evo3 pro

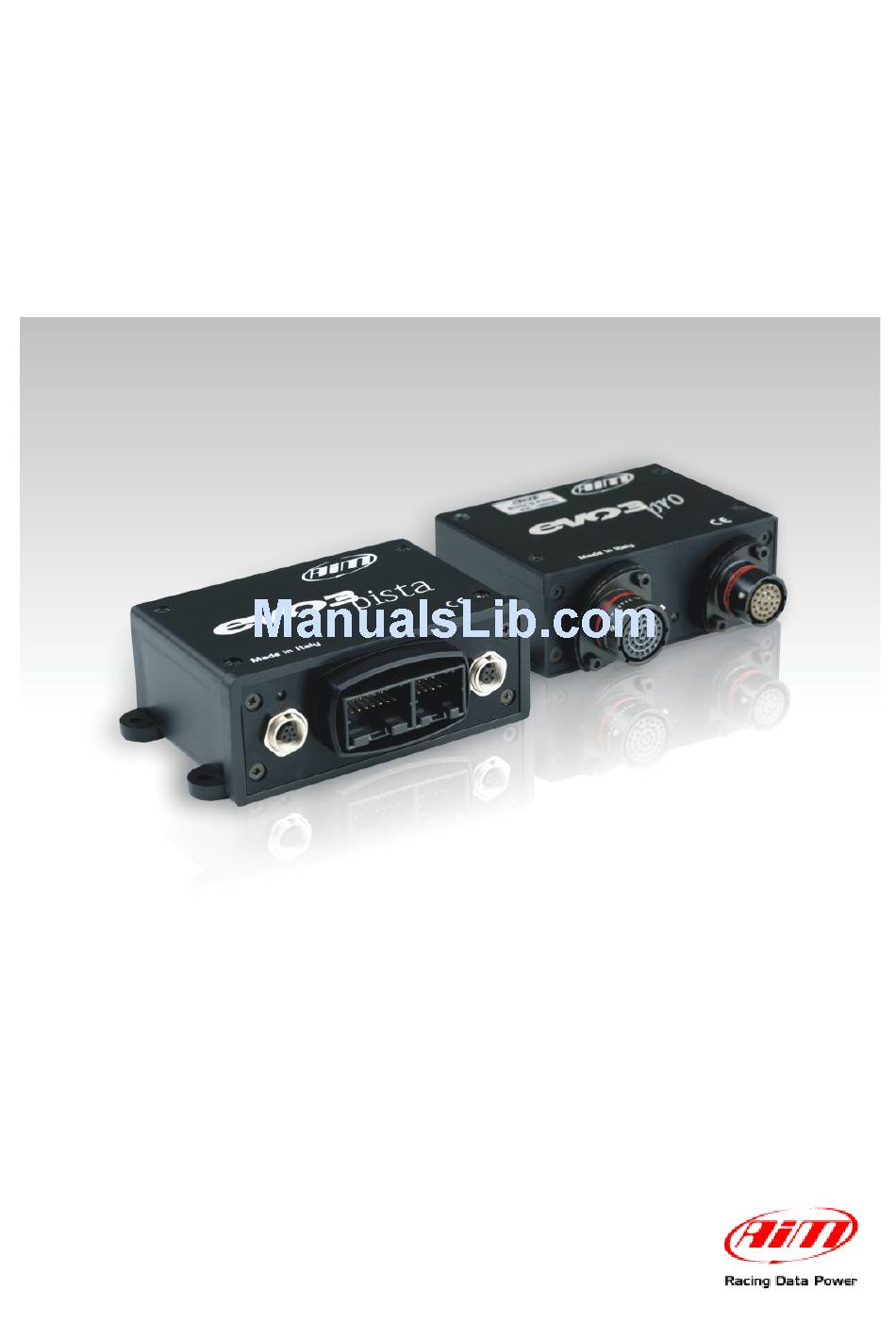

  • Page 1 EVO3 Pro/Pista User manual...
  • Page 2 (TG Dash, MyChron3 Dash, Volante Formula), keeping all under control in a glance. Last but not least, EVO3 Pro/Pista includes the powerful AIM Race Studio 2 software, to control and configure the system so to download and analyze their data through the USB port.

  • Page 3: Table Of Contents

    2.2.1 – Sampling RPM via the CAN bus/RS232 ..................7   2.2.2 – Sampling the RPM from the ECU through a square wave signal (EVO3 Pro) ......7   2.2.3 – Sampling the RPM from the coil: RPM low voltage input ............. 8  ...

  • Page 4: Chapter 1 - Evo3: Versions, Kits And Part Number

    Thanks to the wide range of optional it fits any need. 1.1 – Available versions EVO3 versions – Pro and Pista – have different characteristics. 1.1.1 – EVO3 Pro EVO3 Pro has this characteristics: • Internal Memory: 16Mb • Analog channels: 12 • Speed digital inputs: 4 •...

  • Page 5: Kits And Part Number

    • MyChron3 Dash display – part number X30VDAM01 • Formula Steering wheel display – part number V07VOLFORM It is also possible to buy an EVO3 Pro kit with Formula steering wheel included. In this case the kit part number is: X07VOLFORSGPR.

  • Page 6: Evo3 Pro/Pista Expansions

    • Formula Steering wheel display – part number V07VOLFORM It is also possible to buy an EVO3 Pista kit with Formula steering wheel included. In this case the kit part number is: X07VOLFORSGPI. 1.3 – EVO3 Pro/Pista expansions • Channel expansion: X08CHEXUC •...

  • Page 7: Chapter 2 - Evo3 Pro/Pista: The Channels

    To sample the RPM signal via CAN bus or RS232, refer to paragraph 2.4. 2.2.2 – Sampling the RPM from the ECU through a square wave signal (EVO3 Pro) To sample the RPM from the ECU through a square wave signal (from 8 to 50V) connect pin 12 of 37 pins Deutsch connector (bleu cable) to ECU RPM output (if present).This...

  • Page 8: Sampling The Rpm From The Coil: Rpm Low Voltage Input

    13 of 37 pins Deutsch connector (white cable) to the ECU coil input. 2.2.4 – Sampling the RPM from the spark plug To sample the RPM from the spark plug an AIM ARP-05 adaptor is needed (part number X10ADRPM000) to be installed as shown here below.

  • Page 9: How To Install And Power The Infrared Receiver

    EVO3 Pro/Pista User Manual Release 1.04 2.3.1 – How to install and power the infrared receiver The infrared receiver has to “see” the transmitter placed on the side of the circuit. Install it with the eye pointed to the transmitter. In the image here below the receiver eye is highlighted.

  • Page 10: How To Install And Power The Lap Transmitter

    Release 1.04 2.3.2 – How to install and power the lap transmitter AIM produces an infrared lap transmitter shown here below. The transmitter can be internally or externally powered: • internally: with 8 AA batteries (placed in the transmitter case); when the batteries are flat Power led starts blinking each second (1 Hz);...

  • Page 11: Ecu Connection

    EVO3 Pro/Pista can sample data out coming from the vehicle ECU using the CAN/RS232 cable, that comes with the kit. To know if the vehicle ECU is or not supported by AIM loggers and for further and updated information concerning AIM loggers refer to download area, ECU connection section of www.aim-sportline.com.

  • Page 12: Chapter 3 - How To Install And Power Evo3 Pro/Pista

    • install system and wirings far from sources of electromagnetic interference like spark plugs or coil. EVO3 Pro/Pista has one internal bi-axial accelerometer: to correctly sample in-line (parallel to the vehicle speed) and lateral (perpendicular to the vehicle speed) acceleration install the logger as shown in example 1 of the below image.

  • Page 13: Evo3 Pro/Pista Front Led

    Release 1.04 To power EVO3 Pro/Pista: • check power voltage: EVO3 Pro/Pista needs an external 9/18 VDC power source (the vehicle battery): do not exceed these limits; • connect black cable labelled “GND” to the vehicle battery negative (-) pole and red cable labelled “9/18 VDC”...

  • Page 14: Chapter 4 - Evo3 Pro/Pista Memory

    Release 1.04 Chapter 4 – EVO3 Pro/Pista memory All EVO3 Pro/Pista models have an internal memory whose characteristics are: • non volatile Flash type: data are stored also when the logger is off or disconnected; • round: when it fills up older data are over written;...

  • Page 15: Chapter 5 - Evo3 Software, Driver, Configuration, Transmission, Data Download, Online And Maintenance

    Chapter 5 – EVO3 software, driver, configuration, transmission, data download, online and maintenance EVO3 Pro/Pista connects easily to a PC with an USB cable and can be configured only using Race Studio 2, the powerful software – supplied free – developed by AIM to configure its loggers and analyse stored data.

  • Page 16: Appendix "A" - Loggers Pinout

    EVO3 Pro/Pista User Manual Release 1.04 Appendix “A” – Loggers pinout N.rev. / Rev. N. Descrizione / Description Data / date Firma / Sign Contr. da / Ckd. by EVO3 Pro pinout 37 Pins 22 Pins Deutsch Deutsch Conn. Conn. Logger...
  • Page 17 EVO3 Pro/Pista User Manual Release 1.04 Descrizione / Description N.rev. / Rev. N. Data / date Firma / Sign Contr. da / Ckd. by EVO3 Pista pinout Logger Status Signalling 16 pins AMP 12 pins AMP 5 pins Binder 712 4 pins Binder 712 "B"...

  • Page 18: Appendix "B" - Evo3 Pro Wiring

    Contr. da / Ckd. by Data / Date Scala / Scale Nome file / File name Titolo / Title Cavo EVO3 Pro - Connettore Deutsch 22 pin N. disegno / Drawing N. Rev. / Rev. Foglio / Sheet 04.549.53/A 1 of 2 Racing Data Power www.aim-sportline.com...
  • Page 19 Contr. da / Ckd. by Data / Date Scala / Scale Nome file / File name Titolo / Title EVO3 Pro cavo connettore Deutsch 22 pin N. disegno / Drawing N. Rev. / Rev. Foglio / Sheet 04.549.53/A 2 of 2 Racing Data Power www.aim-sportline.com...
  • Page 20 Contr. da / Ckd. by Data / Date Scala / Scale Nome file / File name Titolo / Title Cavo EVO3 Pro - Connettore Deutsch 37 pin N. disegno / Drawing N. Rev. / Rev. Foglio / Sheet 04.549.50 1 of 3 Racing Data Power www.aim-sportline.com...
  • Page 21 Contr. da / Ckd. by Nome file / File name Data / Date Scala / Scale Titolo / Title Cavo EVO3 Pro - connettore Deutsch 37 pin N. disegno / Drawing N. Rev. / Rev. Foglio / Sheet 04.549.50 2 of 3 Racing Data Power www.aim-sportline.com...
  • Page 22 Contr. da / Ckd. by Nome file / File name Data / Date Scala / Scale Titolo / Title Cavo EVO3 Pro - connettore Deutsch 37 pin N. disegno / Drawing N. Rev. / Rev. Foglio / Sheet 04.549.50 3 of 3 Racing Data Power www.aim-sportline.com...
  • Page 23 Contr. da / Ckd. by Nome file / File name Data / Date Scala / Scale Titolo / Title Cavo EVO3 Pro - Connettore Deutsch 22 pin N. disegno / Drawing N. Rev. / Rev. Foglio / Sheet 04.549.53 1 of 2 Racing Data Power www.aim-sportline.com...
  • Page 24 Contr. da / Ckd. by Nome file / File name Data / Date Scala / Scale Titolo / Title EVO3 Pro cavo connettore Deutsch 22 pin N. disegno / Drawing N. Rev. / Rev. Foglio / Sheet 04.549.53 2 of 2 Racing Data Power www.aim-sportline.com...

  • Page 25: Appendix "C" - Evo3 Pista Wiring

    EVO3 Pro/Pista User Manual Release 1.04 Appendix “C” – EVO3 Pista wiring N.rev. / Rev. N. Descrizione / Description Data / date Firma / Sign Contr. da / Ckd. by Rif. / Ref. Q.tà / Q.ty Materiale / Material N. articolo / Item N.
  • Page 26 EVO3 Pro/Pista User Manual Release 1.04 N.rev. / Rev. N. Descrizione / Description Data / date Firma / Sign Contr. da / Ckd. by Table 1 - Binder 712 female connector Binder pin Cable type AMP 12 pin AMP 16 pin...
  • Page 27 EVO3 Pro/Pista User Manual Release 1.04 N.rev. / Rev. N. Descrizione / Description Data / date Firma / Sign Contr. da / Ckd. by Table 3 - Not cabled channels Cable type AMP 12 pin AMP 16 pin Lenght Channel...

  • Page 28: Appendix "D" - Evo3 Pro Connection Schemes

    Nome file / File name Data / Date Scala / Scale L.I. Titolo / Title EVO3 Pro + Formula Steering wheel - versione senza giunto cablato N. disegno / Drawing N. Rev. / Rev. Foglio / Sheet Racing Data Power 1 of 1 www.aim-sportline.com...
  • Page 29 Progettato da / Designed by Contr. da / Ckd. by Scala / Scale Titolo / Title Esempio schema di collegamento: EVO3 Pro, Formula Steering Wheel, Modulo GPS, LCU-ONE N. disegno / Drawing N. Rev. / Rev. Foglio / Sheet 1 of 1 Racing Data Power www.aim-sportline.com...

  • Page 30: Appendix "E" - Evo3 Pista Connection Schemes

    EVO3 Pro/Pista User Manual Release 1.04 Appendix “E” – EVO3 Pista connection schemes N.rev. / Rev. N. Descrizione / Description Data / date Firma / Sign Contr. da / Ckd. by Rif. / Ref. Q.tà / Q.ty Materiale / Material N.
  • Page 31 Contr. da / Ckd. by Data / Date Scala / Scale Titolo / Title Esempio schema di collegamento : EVO3 Pro, Volante formula, Modulo GPS, LCU-ONE N. disegno / Drawing N. Rev. / Rev. Foglio / Sheet 1 of 1 Racing Data Power www.aim-sportline.com...

This manual is also suitable for:

Evo3 pista
