Summary of Contents for Aim HYDRA EMS NEMESIS 2.5

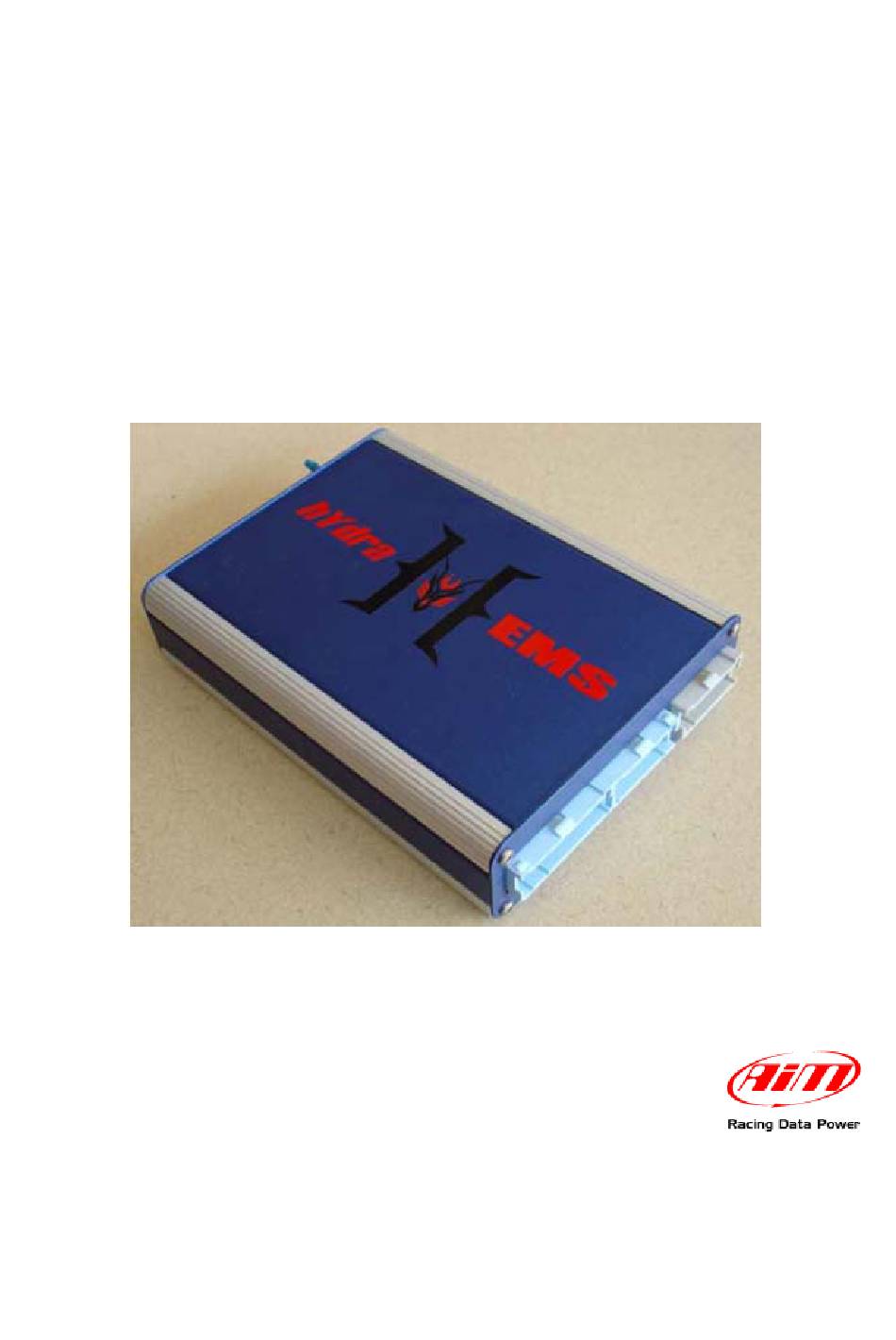

- Page 1 HYDRA EMS NEMESIS 2.5–2.6 ECUs connections...
- Page 2 (air/fuel ratio) analog channels… All AIM loggers include – free of charge – Race Studio 2 software, a powerful tool to configure the system and analyze recorded data on your PC.
- Page 3 Chapter 2 – Connection to AIM data loggers ..............3 2.1 – Hydra EMS Nemesis 2.5 connection to AIM data loggers .............. 3 2.2 – HYDRA EMS Nemesis 2.6 connection to AIM data loggers ............3 Chapter 3 – Hydra EMS Nemesis Communication protocol .......... 4 ...
- Page 4 Release 1.01 Chapter 1 – Serial communication setup HYDRA EMS NEMESIS 2.5 and 2.6 have a serial communication protocol (RS232) and are equipped with a female DB9 connector used to communicate parameters to an external logger or to configure the ECU itself.
- Page 5 HYDRA EMS NEMESIS 2.5 -2.6 ECUs Connections ECU Technical documentation Release 1.01 Chapter 3 – Hydra EMS Nemesis Communication protocol Channels received by AIM loggers connected to Hydra EMS NEMESIS 2.5/2.6 are: Channel Name Function ECU_1 HYDRA_RPM ECU_2 HYDRA_WHEELSPEED...
