Vision Fitness R2200HRT Assembly Manual
Semi-recumbent fitness cycle
Hide thumbs
Also See for R2200HRT:
- Owner's manual (60 pages) ,
- Assembly manual (8 pages) ,
- Owner's manual (56 pages)
Subscribe to Our Youtube Channel
Related Manuals for Vision Fitness R2200HRT
Summary of Contents for Vision Fitness R2200HRT

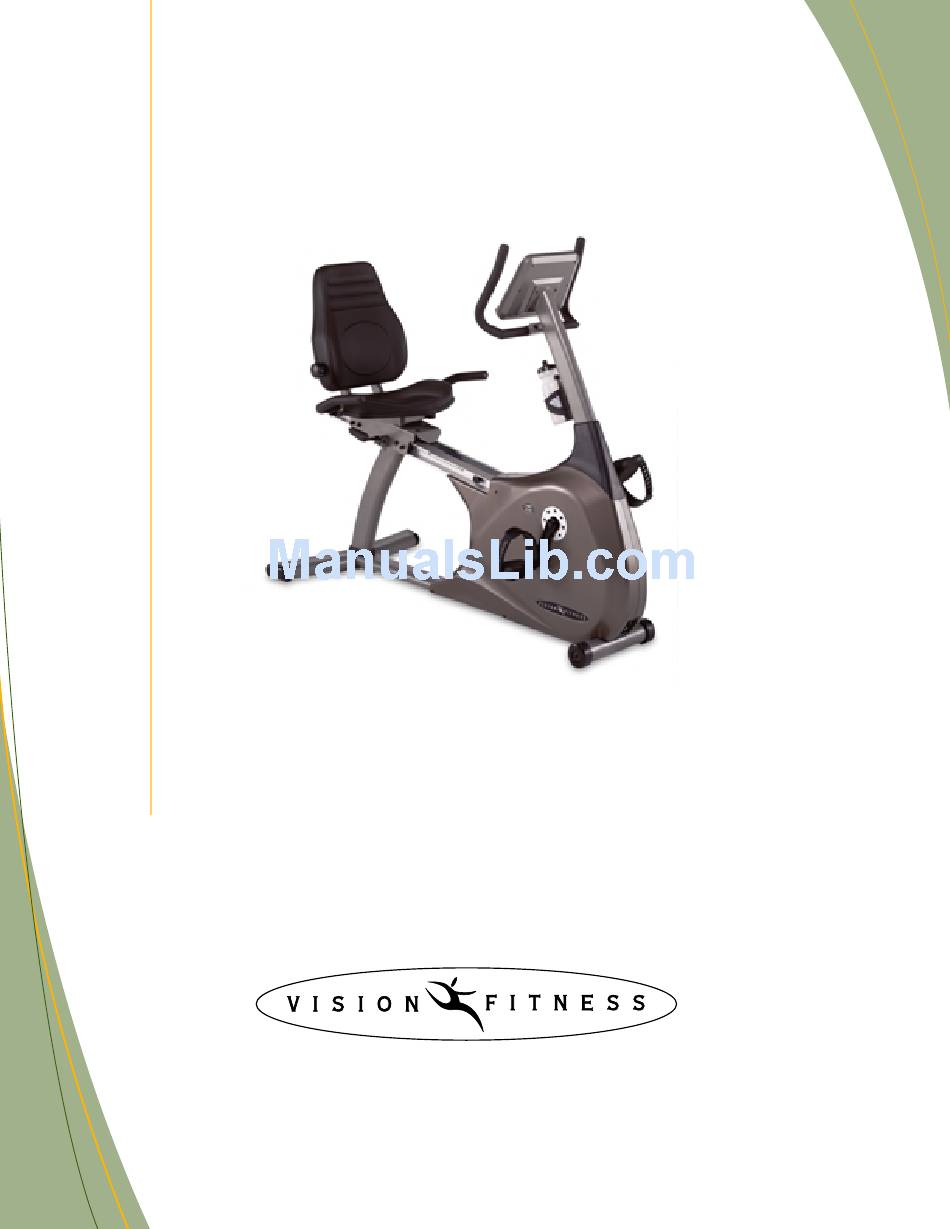

- Page 1 A s s e m b l y G u i d e R2200HRT SEMI-RECUMBENT FITNESS CYCLE...
- Page 2 A s s e m b l y G u i d e R2200HRT SEMI-RECUMBENT FITNESS CYCLE To avoid possible damage to this Fitness Cycle, please follow these assembly steps in the correct order. Before proceeding, find your new Fitness Cycle’s serial number located on the front axle tube, and enter here: Refer to this number when calling for service, and enter this serial number on your Warranty Card and in your own records.
- Page 3 TOOLS & PARTS INCLUDED Pedal Wrench Allen Wrench L-Shaped Wrench L-Shaped Wrench Screwdriver L-Shaped Wrench PARTS BOX Console Mast Cover, Qty: 1 Pedals, Qty: 2 Power Supply, Qty: 1 Water Bottle & Cage, Qty: 1 Heart Rate Chest Strap Color-coded Hardware Bags Owner’s Guide Assembly Guide Warranty Card...
- Page 4 HARDWARE INCLUDED ORANGE BAG BLUE BAG M8 x 65L Screw M6 x 55L Screws Quantity: 2 Quantity: 8 M8 Lockwashers M8 x 20L Screws M6 Lockwashers Quantity: 4 Quantity: 2 M8 x 20L Screws Quantity: 8 Quantity: 4 PINK BAG M8 Lockwashers M8 x 15L Screws Quantity: 4...
- Page 5 ORANGE BAG STEP • Slide the rear foot in place and attach two screws (M8 x 20L), two screws (M8 x 65L), and four lock washers (M8), using the blue-handled Allen wrench. STEP • Slide the rubber sleeve to the proper position at the bottom of the joint.
- Page 6 PINK BAG STEP • Slide the console mast cover over the console mast. Guide the console cable up through the bottom of the console mast with the attached wire. • Slide the console mast into the console mast mounting bracket and use the 5 Allen wrench to secure the five screws (M8x15L) and lock...
- Page 7 15 pedal wrench. STEP 500 South CP Avenue • P.O. Box 280 • Lake Mills. WI 53551 toll free 1.800.335.4348 • phone 1.920.648.4090 • fax 1.920.648.3373 www.visionfitness.com 2002 Vision Fitness. All Rights Reserved. 7.02 Part #Z22RB42-AG1816PRD AG18.16PRD REV1...
