- Page 1 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com CO2-200 CO2 Meter Users Manual • Mode d’emploi • Bedienungshandbuch • Manual d’Uso • Manual de uso...
- Page 2 CO2-200 CO2 Meter Users Manual July 2009, Rev.1 ©2009 Amprobe Test Tools. All rights reserved. Printed in China...
- Page 3 To obtain service during the warranty period, return the product with proof of purchase to an authorized Amprobe Test Tools Service Center or to an Amprobe dealer or distributor. See Repair Section for details. THIS WARRANTY IS YOUR ONLY REMEDY.
- Page 4 Non-Warranty Repairs and Replacement – US and Canada Non-warranty repairs in the United States and Canada should be sent to a Amprobe® Test Tools Service Center. Call Amprobe® Test Tools or inquire at your point of purchase for current repair and...

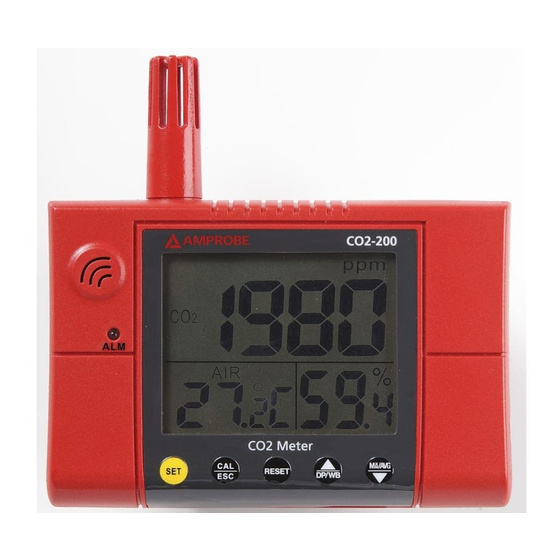

- Page 5 CO2-200 CO2 Meter Humidity Sensor LCD Display Alarm Output USB Port DC Jack SET Button CAL/ESC Button RESET Button DP/WB Button MNX/AV Button Beeper LED Light...
- Page 6 LCD Display Primary Screen Displays CO2 Concentration Relative Humidity In % Air, Dew Point, Wet Bulb Temperature Display CO2 Measurement Mode Minimum/Maximum readings Time Weighted Average (8 Hours) Short-Term Exposure Limit (15 Minutes Weighted Average) Dew Point Temperature Air temperature Wet Bulb Temperature...
-
Page 7: Table Of Contents
CONTENTS SYMBOLS ................2 UNPACKING AND INSPECTION ........2 INTRODUCTION ..............3 Features ................ 3 OPERATION ............... 4 Alarm output ............... 5 Setup ................6 Calibration Mode ............7 • CO2 calibration ............ 8 • Manual calibration ..........8 • Humidity calibration ..........7 USB Interface capabilities ........... -
Page 8: Symbols
CO2 concentration. Otherwise, it will be calibrated as 400ppm by default and leads to inaccurate measurements. UNPACKING AND INSPECTION Your shipping carton should include: CO2-200 CO2 Meter Adaptor User manual Plain white box If any of the items are damaged or missing, return the complete package to the place of purchase for an exchange. -
Page 9: Introduction
INTRODUCTION Thank you for purchasing this CO2 meter. It measures CO2 level, air temp., dew point, wet bulb temp. and humidity and is an ideal instrument for indoor air quality (IAQ) diagnosis. Poor indoor air quality is considered unhealthy because it causes tiredness, loss of ability to concentrate, and even illness (ex. -
Page 10: Operation
OPERATION 1. Plug in the adaptor and the meter turns on automatically with a short beep. It performs 30 seconds countdown (Fig.1) for meter warm up, then enters normal mode with current CO2, temperature, and humidity readings displayed. 2. The meter starts taking measurements when power on and updates readings every second. -
Page 11: Alarm Output
Alarm Output The meter features visible and audible alarm to give warnings when CO2 concentration exceeds the limit. Users can set up 2 limits: An upper limit for alarm threshold that requires air conditioning and a lower limit to stop the alarm. (See P1.0 in setup for setting alarm limits). -
Page 12: Calibration Mode
When entering setup mode, P1.0 and “AL” are displayed on the LCD (Fig. 4). Press “SET” again to go into P1.1 for setting CO2 upper limit. The current set value will be blinking on LCD (Fig.5). Press “p/DP/WB” to increase the value or “MNX/AVG/q”to decrease. -
Page 13: Manual Calibration
Manual calibration The manual calibration is suggested to be done in outdoor area with ventilating fresh air where CO2 level is around 400 ppm. Do not calibrate in places crowded with people or close to where with high CO2 concentration such as ventilating outlets or fireplaces. -
Page 14: Usb Interface Capabilities
3. Users can also calibrate either point. To calibrate 33% only, press “CAL/ESC” to exit when 33% calibration is completed. To calibrate 75% only, press “p/DP/WB“ or “MNX/AVG/q” within 5 minutes while initializing 33% calibration. And it skips 33% and enters 75% calibration. USB Interface Capabilities The USB cable and software (optional kit) are required to transfer data to a PC. -
Page 15: Specifications
SPECIFICATIONS 0~9999ppm Range (2001~9999 out of accuracy scale range) Resolution 1 ppm ±50ppm±5%rdg (0~2000) Accuracy (Not specified for out of scale) +1.6% reading per kPa deviation from Pressure normal pressure Dependence 100kPa Temperature Range -10.0~60.0°C (14~140°F) Resolution 0.1°C /0.1°F Accuracy ±0.6°C / ±0.9°F Humidity Range... -
Page 16: Maintenance
MAINTENANCE Instrument service personnel. The front panel and case can be cleaned with a mild solution of detergent and water. Apply sparingly with a soft cloth and allow to dry completely before using. Do not use aromatic hydrocarbons or chlorinated solvents for cleaning. TROUBLE SHOOTING Can’t power on •... -
Page 17: Appendix
