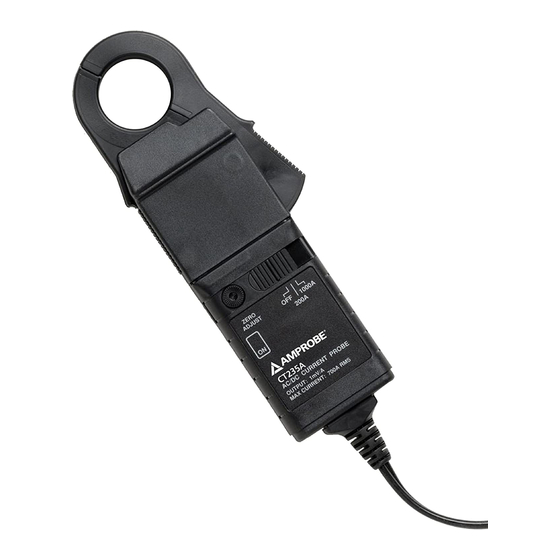

- Page 1 CT235A, CT237A AC/DC Current Probes User Manual 1.888.610.7664 www.calcert.com sales@calcert.com...
-
Page 2: Limited Warranty And Limitation Of Liability
Amprobe’s behalf. To obtain service during the warranty period, return the product with proof of purchase to an authorized Amprobe Test Tools Service Center or to an Amprobe dealer or distributor. See Repair Section for details. THIS WARRANTY IS YOUR ONLY REMEDY. ALL... -
Page 3: Warnings And Precautions
Hall Effect technology the CT237A can accurately measure currents up to 200 A rms over the frequency range of DC to 10 kHz, while the CT235A measures currents up to 1000A DC or AC peak. These features make them... -
Page 4: Specifications
±1% of rdg ± 0.3A 2kHz to 5kHz: ±2% of rdg ±0.3A 5kHz to 10kHz: ±5% of rdg ±0.3A CT235A, 200A/1000A range, DC ±1% of rdg ± 0.5A 200A/1000A range, AC, <10kHz ±1% of rdg ± 0.5A Resolution CT237A, 20A range ±... -
Page 5: Zero Adjustment
Switch on the probe using the On - Off switch and check that the LED is lit. Select the required current range (20 Amp or 200 Amp for the CT237A; 200A or 1000A for the CT235A). Connect the output lead to a multimeter. Select AC millivolts to measure Alternating Current and DC millivolts for Direct Current. - Page 6 Please read the warranty statement and check your battery before requesting repair. During the warranty period any defective test tool can be returned to your Amprobe® Test Tools distributor for an exchange for the same or like a list of distributors near you. Additionally, in the United States and Canada In-Warranty repair and replacement units can also be sent to a Amprobe®...
- Page 7 BATTERY COVER SCREW (CAPTIVE) BATTERY COVER SCHRAUBE, BATTERIEFACH BATTERIEFACHDECKEL VIS, COMPARTIMENT PILE COUVERCLE, COMP. PILE JAWS/ZANGE /PINCE PROTECTIVE ZERO ADJUST BARRIER NULLABGLEICH SCHUTZSPERRE AJUSTAGE DU BOUCLIER DE ZERO PROTECTION ZERO ADJUST 200A ON/OFF SWITCH CT237A EIN/AUS SCHALTER AC/DC CURRENT PROBE OUTPUT: 10mV/A 1mV/A BOUTON MARCHE/ MAX CURRENT: 200A RMS...
- Page 8 1000 10000 200A Range 20A Range -0,5 -1,5 -2,5 1000 10000 1000 10000 1.888.610.7664 www.calcert.com sales@calcert.com...
- Page 9 Continued 1000 10000 3,00 2,50 2,00 1,50 1,00 0,50 0,00 -0,50 -1,00 -1,50 -2,00 -2,50 -3,00 2,00 1,50 1,00 0,50 0,00 -0,50 -1,00 -1,50 -2,00 -0,5 -1,5 1.888.610.7664 www.calcert.com sales@calcert.com...
