IR3637 EVALUATION BOARD USER GUIDE

DESCRIPTION

The IR3637 controller IC is designed to
provide a low cost synchronous Buck
regulator
for
on-board
applications in a small 8-pin SOIC. The
output voltage can be precisely regulated
using the internal 0.8V reference voltage
for low voltage applications.
The IR3637 operates at a fixed internal
400KHz switching frequency to reduce the
component size.
The device features under-voltage lockout
for
both
input supplies, an external
programmable soft-start function as well as
output under-voltage detection that latches
off the device when an output short is
detected.

INPUT / OUTPUT CONNECTIONS

The following is the input / output connections:
Inputs:
JP1: Input (+5V) and GND
JU1: V
c
Outputs:
JP2: V
(+1.8V) and GND
out
Other Connections:
J1: Scope connection for V
J2: Scope connection for Inductor Point
Rev1.0
4/29/2005
DC
to
DC
out

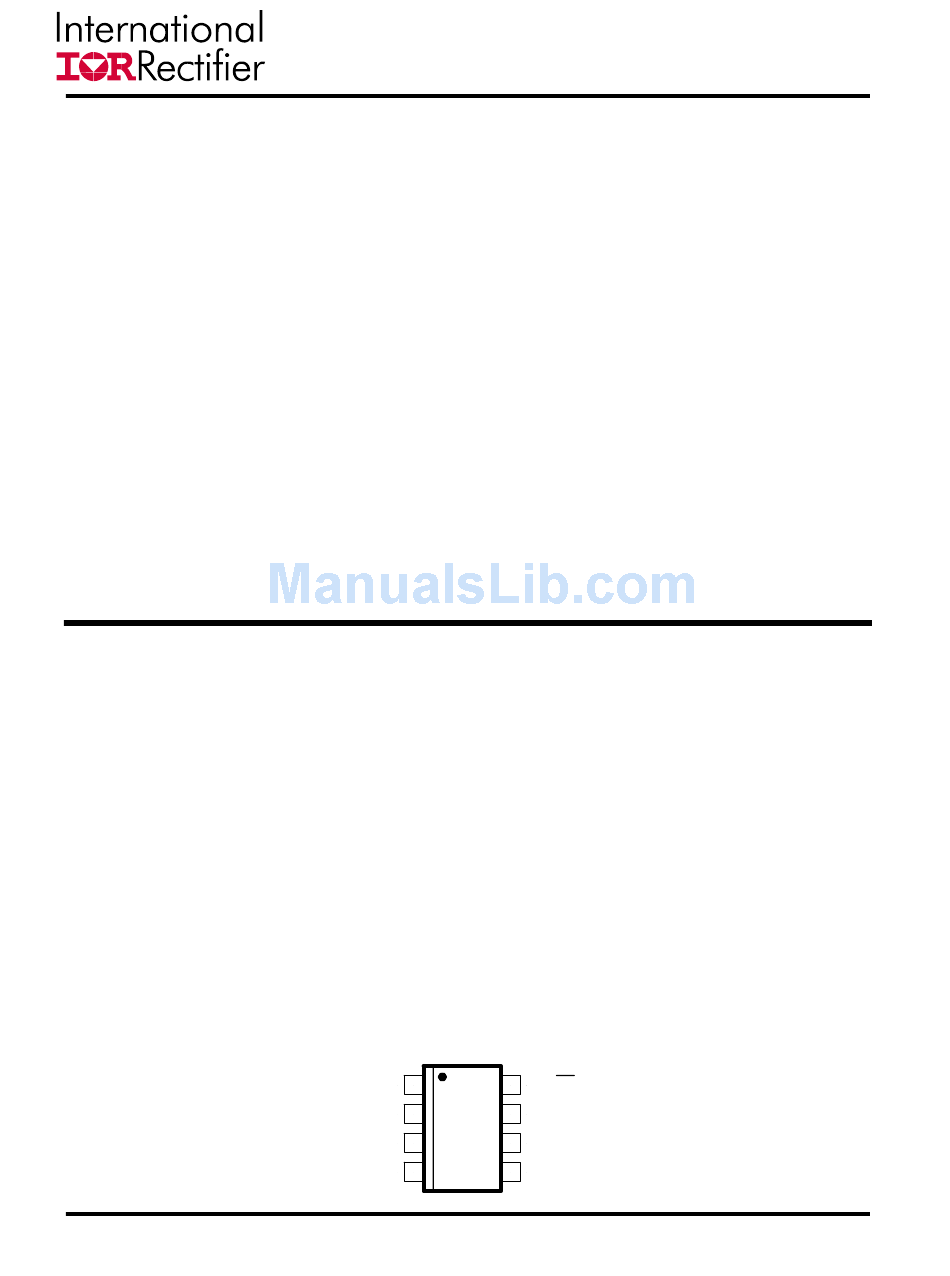

PACKAGE INFORMATION

Fb
1
Vcc
2
LDrv
3
Gnd
4
IRDC3637EVAL
The reference board is designed for
1.8V output using +5V and +12V
supplies. This will demonstrate the
main features of IC.
This user guide contains the schematic
and bill of materials, the design
guidelines are described in data sheet.

SPECIFICATION DATA

V
= 12V
c
V
=V
=5V
cc
in
V
=1.8V
out
Iout =7A
Output Ripple = 50mV
F
= 400KHz
s
The connection points are shown in
Figure1. Connect the power supply
cables
according
minimizing wire lengths to reduce
losses in the wire. Test points J1 and
J2
provide
easy
oscilloscope voltage probe to monitor
the inductor points and output voltage.
SS/SD
8
Comp
7
Vc
6
HDrv
5
to
this
figure,
connection
for
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IR3637 and is the answer not in the manual?

Questions and answers

Summary of Contents for International Rectifier IR3637

  • Page 1 IRDC3637EVAL IR3637 EVALUATION BOARD USER GUIDE DESCRIPTION The IR3637 controller IC is designed to The reference board is designed for provide a low cost synchronous Buck 1.8V output using +5V and +12V regulator on-board supplies. This will demonstrate the applications in a small 8-pin SOIC. The main features of IC.
  • Page 2 IRDC3637EVAL CONNECTION DIAGRAM +12V Supply Supply Load Figure 1 – Connection diagram of evaluation board for IR3637 Rev1.0 4/29/2005...
  • Page 3 PGND and it is decoupling capacitors, and feedback connected at a single point. components are located close to IC. The feedback resistors are tied to the output voltage point regulation. Figure 2 – Top layer of evaluation board for IR3637 Rev1.0 4/29/2005...
  • Page 4 VC/VCC BAT54SCT HDRV HDRV IR3637 COMP COMP LDRV OUTPUT LDRV MOSFET N_DUAL Title IR3637 - DUAL SO8 MOSFET Size Number Revision JE3637S-V1R0 Orcad A Date: 10-Mar-2005 Sheet of File: C:\PCB2\PCB_last6.ddb Drawn By: Figure 3 – Schematic of the evaluation board Rev1.0...
  • Page 5: Bill Of Material

    IRDC3637EVAL BILL OF MATERIAL Ref Desig Description Value Part# Manuf Dual MOSFET 20V, 13.4mOhm IRF8910 Controller Synchronous PWM IR3637 Diode Fast Switching BAT54A Inductor 1.5uH, 8A, 10 mOhm DO3316P-152 Coilcraft C8,9,12,13 Cap, Poscap 150uF, 6.3V, 40mOhm 6TPC150M Sanyo C2,C5 Cap, Ceramic 0.1uF, X7R, 16V...
  • Page 6 IRDC3637EVAL TYPICAL OPERATING WAVEFORMS Test Conditions: Vcc=Vin=5V, Vc=12V, Vout=1.8V, Iout=0-7A, Ta=Room Temp, No Air Flow. Unless otherwise specified. Figure 5 - Start up waveforms Figure 4 - Start up waveforms Ch1: Vin=Vcc, Ch2: Vc, Ch3: Vss, Ch4: Vout Ch1: Vin=Vcc, Ch2: Vc, Ch3: Vss, Ch4: Vout Figure 7 - Gates waveforms Figure 6 - Gates waveforms Ch1: Hdrv, Ch2Ldrv,, Ch3:Inductor Point...
  • Page 7 IRDC3637EVAL TYPICAL OPERATING WAVEFORMS Test Conditions: Vcc=Vin=5V, Vc=12V, Vout=1.8V, Iout=0-7A, Ta=Room Temp, No Air Flow. Unless otherwise specified. Figure 8 - Shutdown by shorting the SS pin Figure 9 - Output Voltage Ripple Ch1: Hdrv, Ch2Ldrv,, Ch3:SS Ch1: Vout, Ch4: Inductor Current ILoad=5A ILoad=5A Figure 10 - Load Transient (0-5A)
  • Page 8 IRDC3637EVAL TYPICAL PERFORMANMCE CURVES Test Conditions: Vcc=Vin=5V, Vc=12V, Vout=1.8V, Iout=0-7A, Ta=Room Temp, No Air Flow. Unless otherwise specified. Efficiency Vc=12V, Vcc=Vbus=5V, Iout=0-8A, Fs=400KHz Iout (A) Figure 12 - Efficiency using IRF8910 Dual MOSFET This product has been designed and qualified for the Industrial market. IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: (310)252-7105 TAC FAX: (310) 252-7903 Visit us at...
