IRU3065 EVALUATION BOARD USER GUIDE

INTRODUCTION

The IRU3065 controller is designed to provide solu-
tions for the applications requiring low power on board
switching regulators. The IRU3065 is specifically
designed for positive to negative conversion and uses
few components for a simple solution. The IRU3065
operates at high switching frequency (up to 1.5MHz),
resulting in smaller components. The output voltage
can be set by using an external resistor divider. The
stability over all conditions is inherent with this archi-
tecture without any compensation. The device is
available in the standard 6-Pin SOT-23.
(see the IRU3065 data sheet for detailed description).
Rev. 1.0
10/20/04

SPECIFICATION DATA

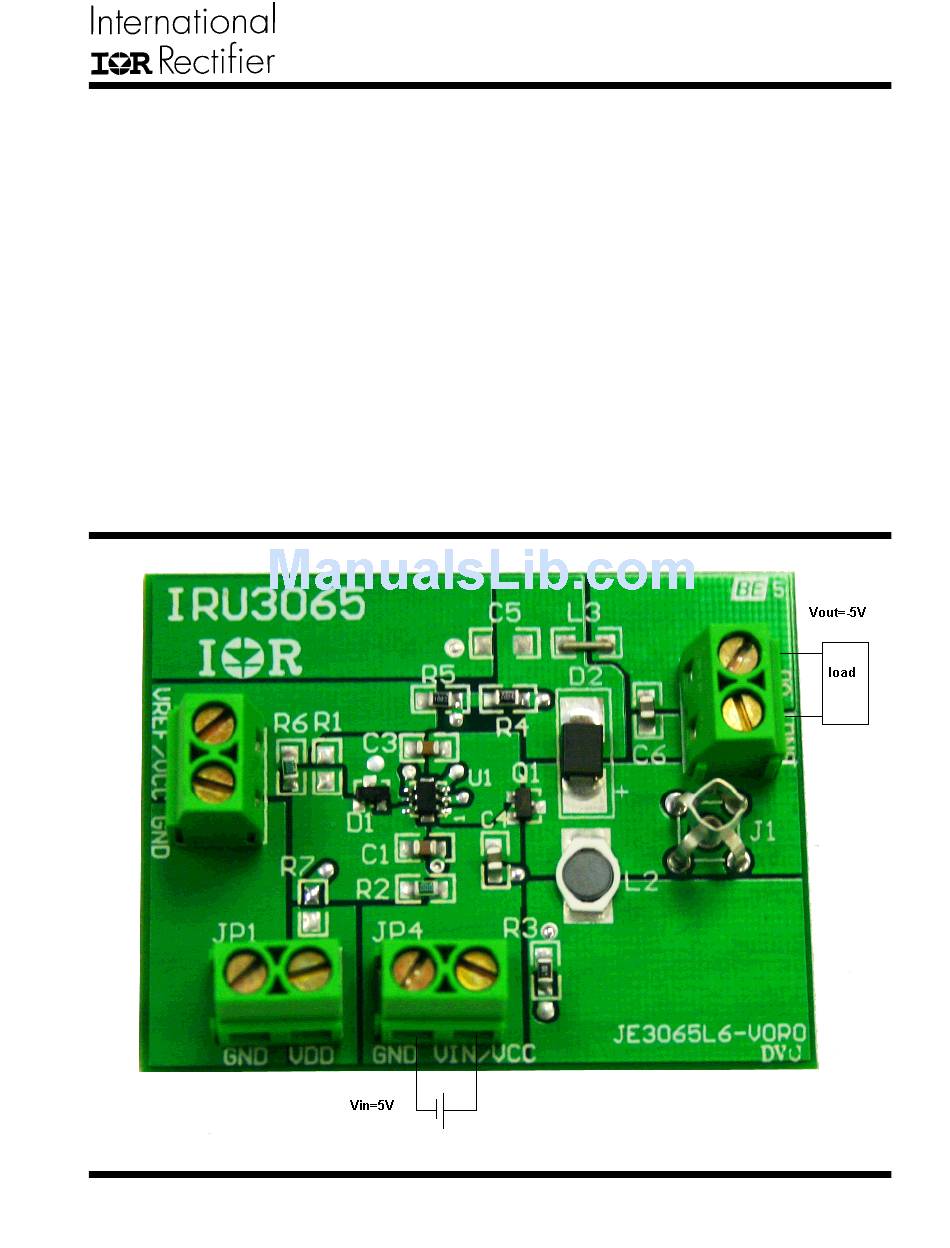

Inputs:
JP1: Optional VDD input. Default VDD is connected
to VCC through a charge pump.
JP2: Optional Vref input. If accurate output is re
quired, Vref should be connected to a accurate refer-
ence voltage
JP4: 5V Bus input and Vcc input (default connection).
The output voltage will be equal to input voltage with
negative sign.
Outputs:
JP3. Vout=-5V @200mA.
Switching frequency
Fs(MAX)=1.2 MHz
www.irf.com
IRDC3065
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IRU3065 and is the answer not in the manual?

Questions and answers

Summary of Contents for International Rectifier IRU3065

  • Page 1 IRU3065 EVALUATION BOARD USER GUIDE INTRODUCTION SPECIFICATION DATA Inputs: The IRU3065 controller is designed to provide solu- JP1: Optional VDD input. Default VDD is connected tions for the applications requiring low power on board to VCC through a charge pump.
  • Page 2 VREF/VCC Vsns VRef Title Size Number Revision Date: 2-Nov-2004 Sheet of File: E:\mqiao\IR_dcdc_IC\Iru3065\protel\JE3065~1.DDB Drawn By: Figure 1 - Schematic of IRU3065 evaluation-board. Bill of Material (BOM) Ref Designator Description Value Part# Manuf MOSFET PFET 1 IRLML5203 Controller 1 IRU3065 Diode...
  • Page 3 IRDC3065 Layout-Top layer and Bottom layer www.irf.com Rev. 1.0 10/20/04...
  • Page 4 IRDC3065 Operation Characteristics Vout(V) vs Iout(mA) Efficiency versus load current 1000 Iout(mA) Iout(mA) Efficiency(%) with diode Efficiency(%) with 100 resistor Output voltage (absoutle value) versus load curren Efficiency with 1.2uH inductor, 800k Hz opera- (Vout=-5V, Iocp=400mA)t tion Frequency (KHz) versus load current Efficiency versus load current Iout(mA) Efficiency(%) with diode...
  • Page 5 IRDC3065 Experimental waveforms Operation waveform with 450mA, the boundary of continuous mode and discontinuous mode. The out- Start Up put start out of regulation Operation waveform at 20mA load. Operation waveform with short output. Operation waveforms with 250mA load (normal operation) www.irf.com Rev.
  • Page 6 IRDC3065 IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105 TAC Fax: (310) 252-7903 Visit us at www.irf.com for sales contact information Data and specifications subject to change without notice. 02/01 www.irf.com Rev. 1.0 10/20/04...
