INOKIM LIGHT MAINTENANCE
Adjustment of folding mechanism
For more rigid feel:
Use Ellen Key number ___ to release tension on both sides of M4 screws as shown
on Figure 1
Then use Ellen Key number ___ and gently tight both screws as shown on Figure
2.
Test the function and only then, tight back both sides of M4 screws (figure 1)
For easier folding:
Use Ellen Key number ___ tor release tension on both sides of M4 screws as
shown on Figure 1
Then use Ellen Key number ___ and gently release tension on both screws as
shown on Figure 2. be aware that the distance is only a few millimeters. Be
careful that screw will not fall out of their place.
Test the function and only then, tight back both sides of M4 screws (figure 1)

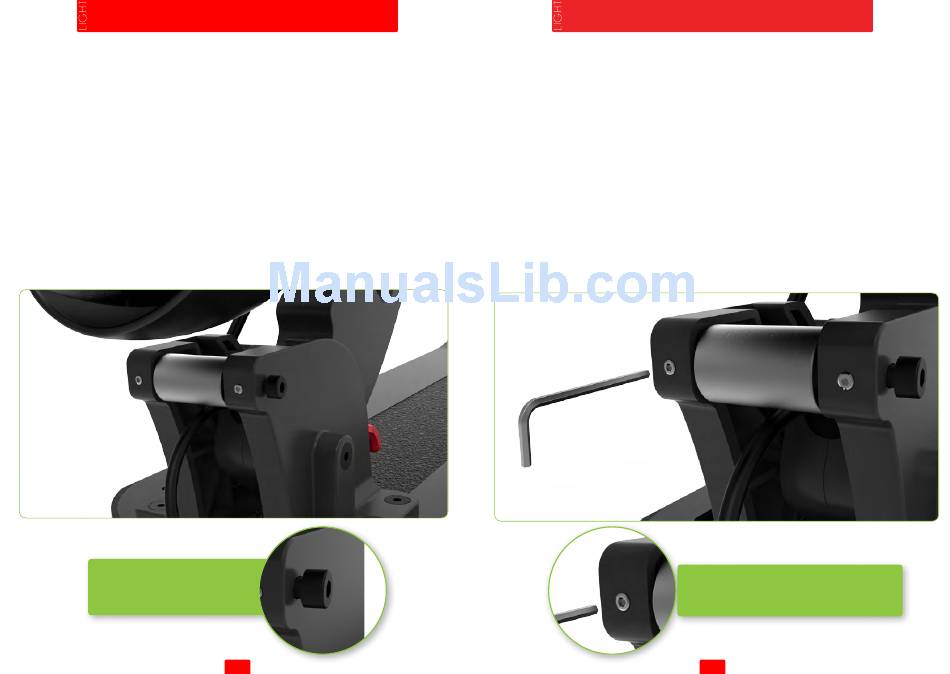

Figure 1
Use Allen key to release
outer screw on both sides.
28
INOKIM LIGHT MAINTENANCE
Figure 2
Slightly tight or release screws
in order to get a rigid or easy action
29
