2.0
INSTALLATION
To connect the PS 430 to the intercom system, use professional flexible microphone cable
with 2 wires and 1 shield only. These cables may be connected to the LINE connector
sockets on the PS 430 side panel, using the Y-cords which are in the shipping carton.
The PS 430 is fully protected against wiring mistakes (reverse power) or short circuit in the
interconnect cables.
A special kit is available for mounting the PS 430 in a 19" rack, taking 2U of rack space.
3.0

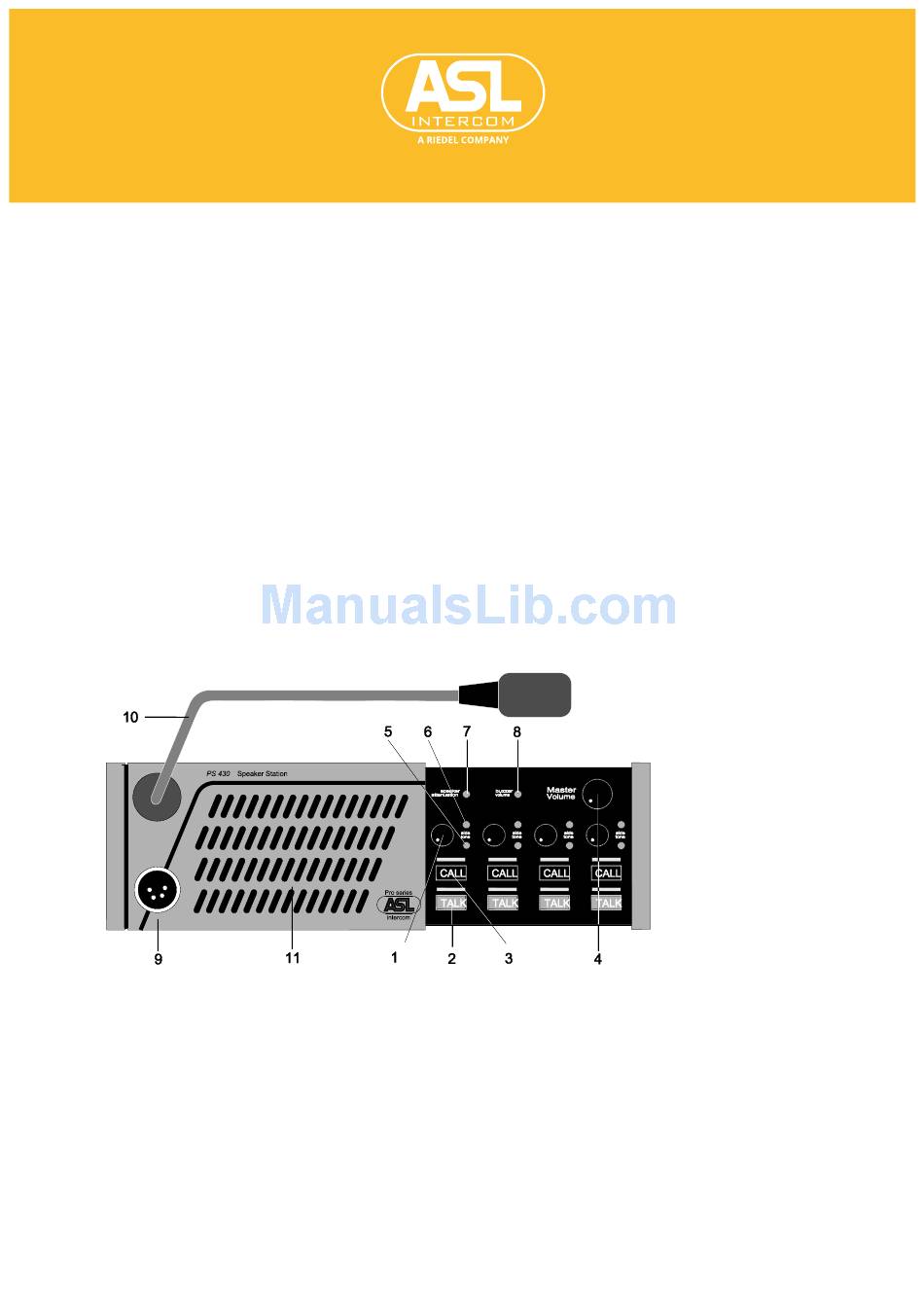

FRONTPANEL CONTROLS & CONNECTORS
1
LISTEN LEVEL control knobs
To preset the listen level for each channel separately (see also #4).
2
TALK buttons
Allow talking to each channel separately or to several channels simultaneously. If a TALK
button is switched on, its large green LED is lit.
