PS 430
FOUR CHANNEL SPEAKER STATION

USER MANUAL

Issue 2011 © ASL Intercom BV
DESIGNED AND MANUFACTURED BY:
ASL INTERCOM BV
ZONNEBAAN 42
3542 EG UTRECHT
THE NETHERLANDS
PHONE: +31 (0)30 2411901
FAX: +31 (0)30 2667373
E-MAIL: info@asl-inter.com
WEB:
www.asl-inter.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS 430 and is the answer not in the manual?

Questions and answers

Summary of Contents for ASL INTERCOM PS 430

  • Page 1: User Manual

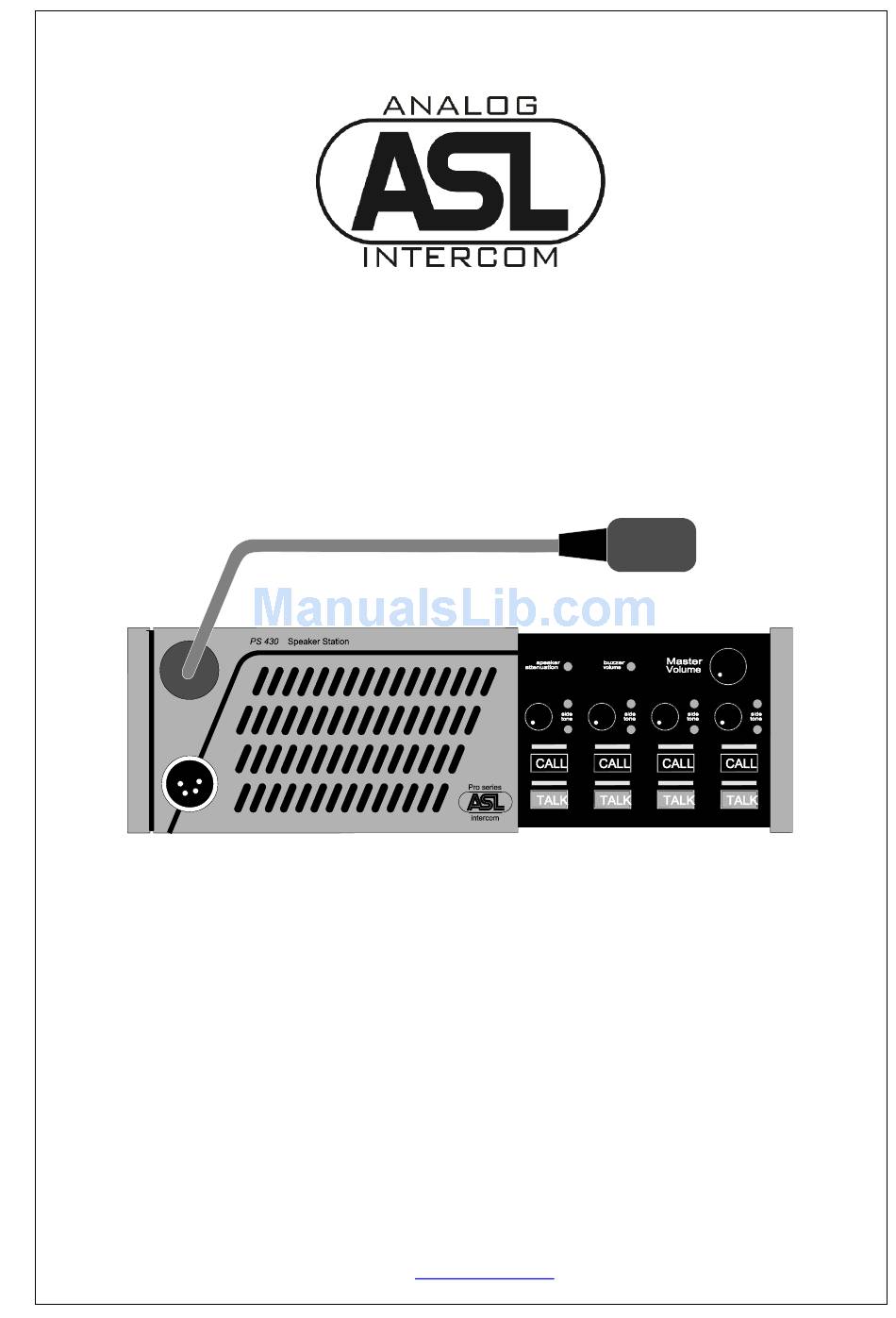

    PS 430 FOUR CHANNEL SPEAKER STATION USER MANUAL Issue 2011 © ASL Intercom BV DESIGNED AND MANUFACTURED BY: ASL INTERCOM BV ZONNEBAAN 42 3542 EG UTRECHT THE NETHERLANDS PHONE: +31 (0)30 2411901 FAX: +31 (0)30 2667373 E-MAIL: info@asl-inter.com WEB: www.asl-inter.com...
  • Page 2: Table Of Contents

    PARTY LINE, TECHNICAL CONCEPT .......... 6 10.0 CABLING ..................7 11.0 BLOCK DIAGRAM PS 430 ............. 8 12.0 EARTHING CONCEPT ..............8 13.0 SYSTEM CONFIGURATION ............9 PAGE 2 User Manual PS 430 / Issue 2011 © ASL Intercom BV...
  • Page 3: General Description

    INSTALLATION This PS 430 may form part of an existing or new The PS 430 is fully protected against wiring intercom system,. To connect the PS 430 to the mistakes (reverse power) or short circuit in the system, use professional flexible microphone cable interconnect cables.
  • Page 4: Front Panel Controls & Connector

    After the CALL button is released the LED’s continue headset can(s) is sufficient. If not, push up to flash for a further 2 seconds. this level a bit by turning side tone trimmer #5 clockwise. PAGE 4 User Manual PS 430 / Issue 2011 © ASL Intercom BV...
  • Page 5: Side Panel Connectors

    The buzzer is activated when the CALL button of the clockwise and minimum level. Adjusting the side PS 430 (or a CALL button of any other station on the tones does not affect the level of your voice as it is party lines to which the PS 430 is connected) is heard by other stations.
  • Page 6: Internal Controls

    XLR pin 3 and 1), a signal voltage is developed interpreted as a Call signal. which can be further amplified and sent to the headphones or loudspeakers. PAGE 6 User Manual PS 430 / Issue 2011 © ASL Intercom BV...
  • Page 7: Cabling

    In case of more complex installations, don’t hesitate to contact us. Please send us a block diagram of the planned intercom network with a list of all user stations and their positions, and we are happy to advise you on cabling lay out. PAGE 7 User Manual PS 430 / Issue 2011 © ASL Intercom BV...
  • Page 8: 11.0 Block Diagram Ps 430

    11.0 BLOCK DIAGRAM PS 430 12.0 EARTHING CONCEPT PAGE 8 User Manual PS 430 / Issue 2011 © ASL Intercom BV...
  • Page 9: 13.0 System Configuration

    13.0 SYSTEM CONFIGURATION 13.0 SYSTEM CONFIGURATION PAGE 9 User Manual PS 430 / Issue 2011 © ASL Intercom BV...
