INSTALLATION
Connect the intercom party lines to the LINE connectors on the side panel of the PS 230.
The necessary DC voltages are derived from a master station or a separate power supply,
via the intercom connection cables. Use professional microphone cable with 2 wires and
1 shield only.
The PS 230 is fully protected against wiring mistakes (reverse power) or short circuit in the
interconnecting cables.
A kit is available for mounting the PS 230 in a 19" rack, taking 2U of rack space.
3.0

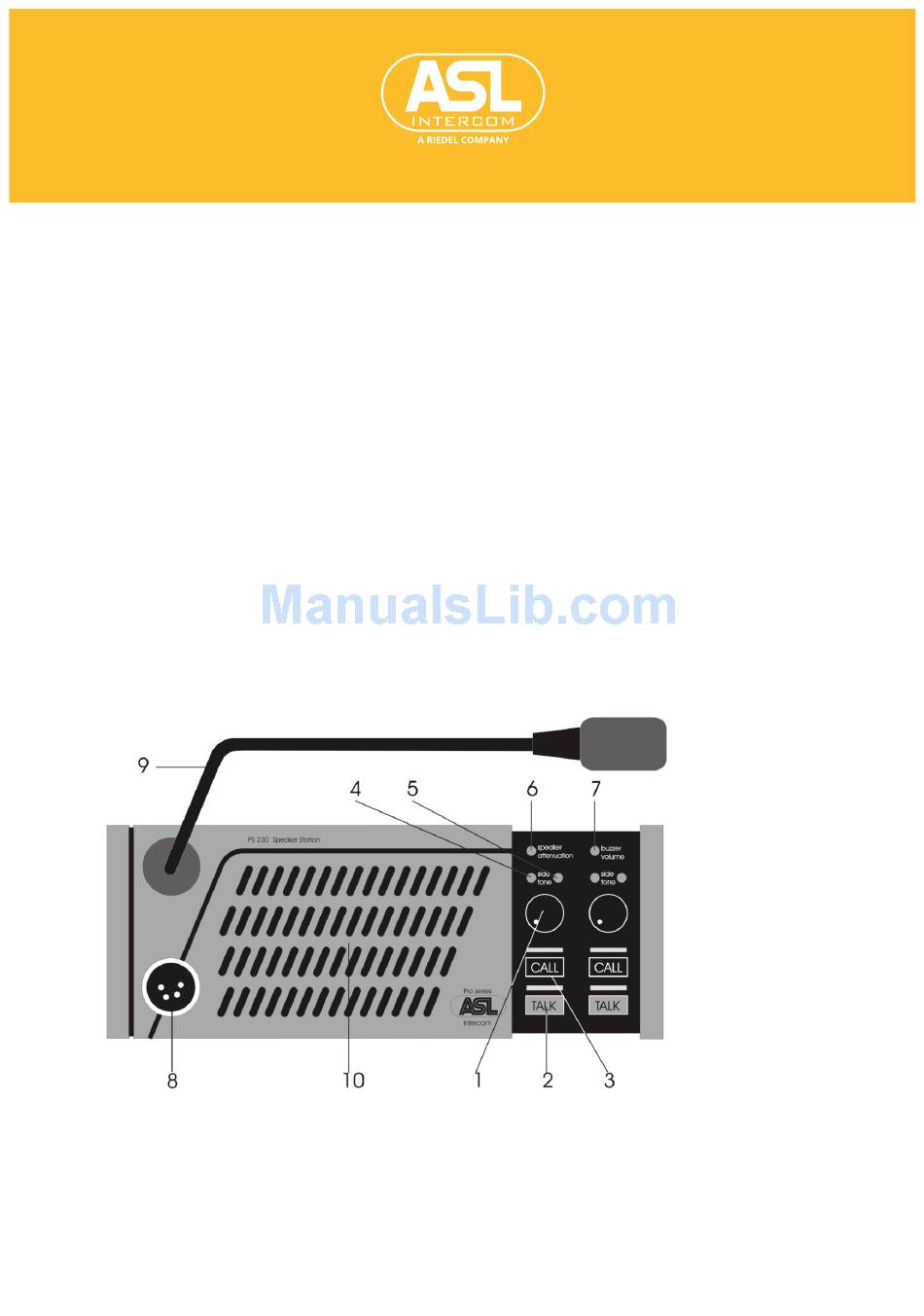

FRONTPANEL CONTROLS & CONNECTORS
1
VOLUME control knobs
To adjust the listen level for the headset and the loudspeaker.
