Page 1: User Manual

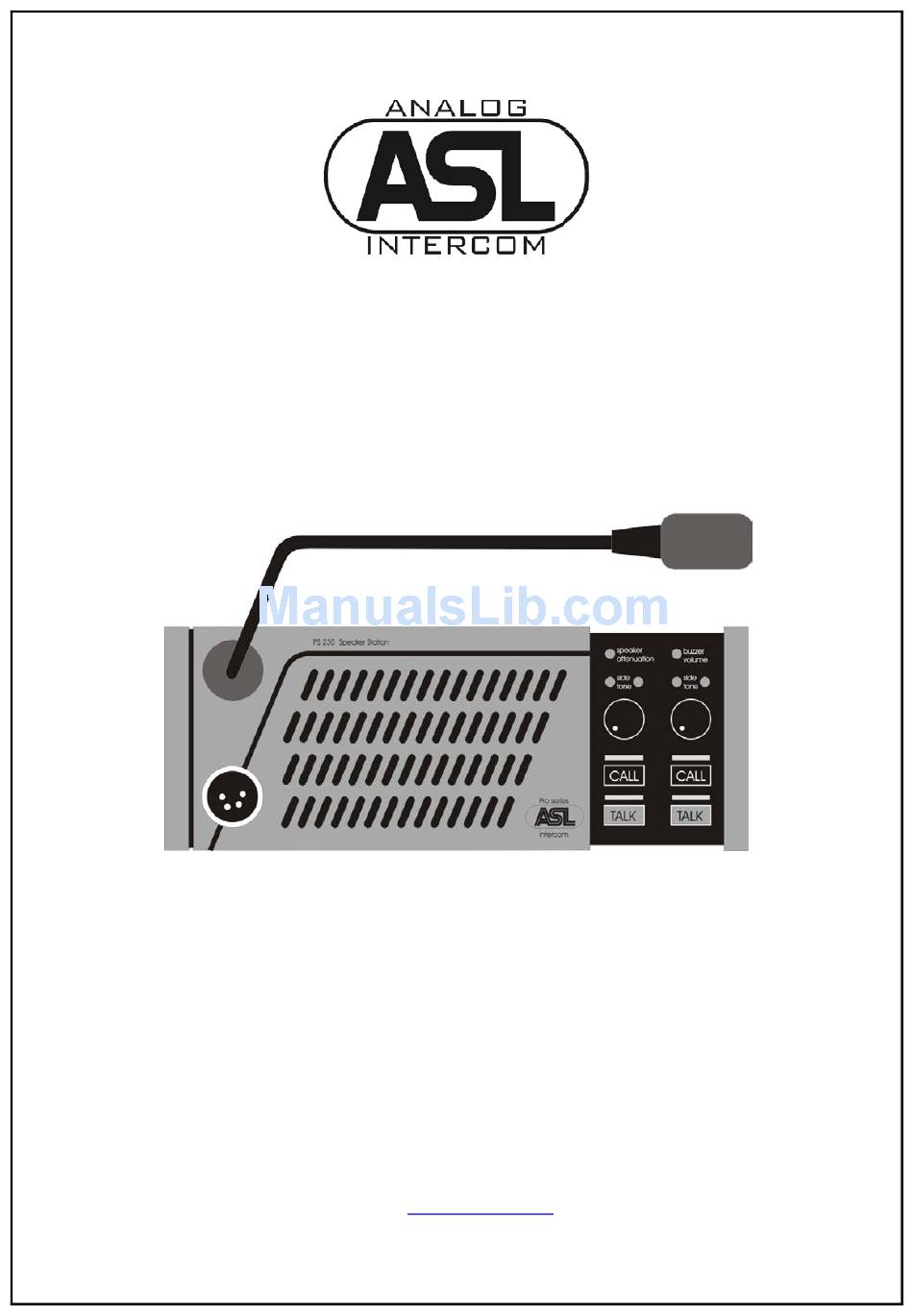

PS 230 DUAL CHANNEL REMOTE SPEAKER STATION USER MANUAL October 2013 This product is designed and manufactured by: ASL Intercom B.V. Zonnebaan 42 3542 EG Utrecht The Netherlands Phone: +31 (0)30 2411901 Fax: +31 (0)30 2667373 E-mail: info@asl-inter.com Web: www.asl-inter.com... -
Page 2: Table Of Contents
TECHNICAL SPECIFICATIONS .............. 6 PS 230 BLOCK DIAGRAM ............... 6 PARTY LINE, TECHNICAL CONCEPT ............ 7 CABLING....................7 10.0 EARTHING CONCEPT ................8 11.0 SYSTEM CONFIGURATION..............8 PAGE 2 User Manual PS 230 / October 2013 © ASL Intercom BV... -
Page 3: General Description
Use professional A kit is available for mounting the PS 230 in a 19" microphone cable with 2 wires and 1 shield only. rack, taking 2U of rack space. - Page 4 SIDE TONE LEVEL trimmers your voice as it is heard by other stations. These trimmers, one for each channel, are for minimizing the speaker feeding back into the PAGE 4 User Manual PS 230 / October 2013 © ASL Intercom BV...
-
Page 5: Internal Controls
BUZZER VOLUME trimmer into the microphone To adjust the volume of the internal buzzer. The buzzer is activated if a CALL button of the PS 230 LOUDSPEAKER is pushed (or a CALL button of any other station A high quality 16 Ω loudspeaker... -
Page 6: Technical Specifications
1.3 W rms @ 200 Ω ASL reserves the right to alter specifications binaural: 2x 0.27 W rms @ 400 Ω without prior notice. PS 230 BLOCK DIAGRAM PAGE 6 User Manual PS 230 / October 2013 © ASL Intercom BV... -
Page 7: Party Line, Technical Concept
Metal trunks or pipes for intercom cables and metal controlled lighting systems. connector boxes should be mounted in such a way that they are isolated from any other metal housing or construction part. PAGE 7 User Manual PS 230 / October 2013 © ASL Intercom BV... -
Page 8: 10.0 Earthing Concept
10.0 EARTHING CONCEPT 11.0 SYSTEM CONFIGURATION PAGE 8 User Manual PS 230 / October 2013 © ASL Intercom BV...
