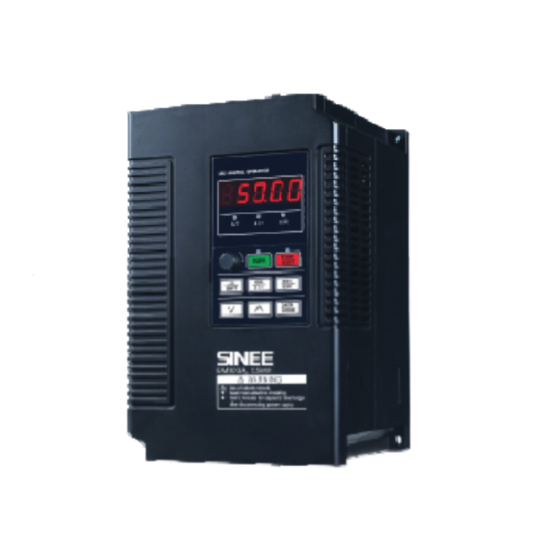

Em303a series general purpose inverter
Table of Contents

Advertisement

User Manual
Thank you for purchasing EM303A series inverter.
Document No.: 31010005
Issue Date: 06/06/2013
EM303A is a general purpose inverter (Speed Sensorless Vector Control). It helps an
induction motor to achieve not only the speed regulation standard of a DC motor, but also
the control ability of a torque motor, and the motion control system is optimized with
quick response, precise control and system stability.
The updates of EM303A:
1. Support Modbus RTU standard communication protocol.
2. Support RS485 master-slave communication control mode, numeric synchronized
control achieved.
3. Numeric input terminals support F/R logic control, delay input control, and etc.
4. Numeric output terminals support PWL/pulse output, F/R logic output and delay output,
and etc.
5. Analog input signals VS/IS/VF/IF can be programmed as numeric inputs, numeric
terminals expansion control achieved.
6. With filtering, analog input signals VP/VS/IS/VF/IF can actively avoid analog signals
interference and drift.
7. User can easily define the display of function code menus.
8. Run, stop and parameters setting status can program the displayed parameters
independently.
It is the duty of any user to perform the appropriate, correct installation or configuration
of the optional parameters of the devices. Neither SINEE nor its distributors shall be
responsible or liable for misuse of the information contained herein or mismatching the
inverter with the motor.
In the interests of commitment to a policy of continuous development and improvement,
SINEE reserves the right to update the specification of the product or its performance, or
the content herein without notice.

Preface
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EM303A-1R1-1CB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sinee EM303A-1R1-1CB

  • Page 1 In the interests of commitment to a policy of continuous development and improvement, SINEE reserves the right to update the specification of the product or its performance, or the content herein without notice.
  • Page 2: Safety Information

    User Manual EM303A General Purpose Inverter Safety Information The addition of this symbol to a Danger or Warning safety label indicates that an electrical hazard exists, which will result in personal injury if the instructions are not followed. This is the safety alert symbol. It is used to alert you to potential personal injury.
  • Page 3 User Manual EM303A General Purpose Inverter Wiring Danger 1. Always turn off the input power supply before wiring. Otherwise, an electric shock or fire may occur. 2. Wiring must be performed by authorized and qualified personnel. Otherwise, an electric shock or fire may occur. 3....
  • Page 4 User Manual EM303A General Purpose Inverter Trial Operation Danger Only after the front cover is installed, power can be turned on. Never take off the front cover when power is on. An electric shock may occur. Do not come close to the machine at power failure if fault reset function is active.
  • Page 5 User Manual EM303A General Purpose Inverter Caution CMOS ICs are installed on keypad, control circuit board and drive circuit board respectively. Handle those parts and CMOS ICs carefully. The CMOS IC can be destroyed by ESD if touched directly with bare hands. 2....
  • Page 6: Table Of Contents

    User Manual EM303A General Purpose Inverter CONTENTS SUPPLEMENT FOR EM303A-XXX-1C, EM303A-XXX-2C ... 8   1. OVERVIEW ..........9   1.1   EM303A M ..9   ODEL IST AND ECHNICAL PECIFICATIONS 1.2   EM303A ......11   ASIC UNCTIONS OF 1.3  ...
  • Page 7 User Manual EM303A General Purpose Inverter 7.2   F1: M ......88   ROUP OTOR ARAMETERS 7.3   F2: I .... 91   ROUP NPUT UTPUT ERMINAL ARAMETERS 7.4   F3: P ..... 99   ROUP RESET PEED ARAMETERS 7.5   F4: G PID ....
  • Page 8 Model and rated output current of EM303A-XXX-1C are shown in Table 0-1. Table 0-1 Model List of EM303A-XXX-1C Rated Output Rated Input Motor Overall Wire Size Model No. Current Voltage Power(kW) Dimensions EM303A-1R1-1CB The same as EM303A-1R5-1CB EM303A-2R2G /3R0P-3CB EM303A-2R2-1CB 10.0 1-Phase AC220V EM303A-3R0-1CB The same as EM303A-7R5G...
  • Page 9: Overview

    User Manual EM303A General Purpose Inverter 1. Overview 1.1 EM303A Model List and Technical Specifications Rated voltage: 3-phase, AC380V/415V Applicable motor: 3-phase induction motor, power range: 0.75~400kW. Rated voltage: AC380V/415V Output voltage: 3-phase, from 0 to U supply 1.1.1 EM303A Model and Rated Output Current Table 1-1 Model List of EM303A Rated Output Rated Voltage...
  • Page 10 User Manual EM303A General Purpose Inverter 1.1.2 EM303A Technical Specifications Table 1-2 EM303A Technical specifications Items Specifications Input Rated Voltage 3-phase AC380V~415V±20%, 50~60Hz±5%, voltage imbalance rate <3% Output Voltage 3-phase, from 0 to U supply Rated Output Current 100% rated current non-stop output Output Model G: 150% rated current for 1 minutes, 180% rated current for 2 seconds Max.
  • Page 11: Em303A

    User Manual EM303A General Purpose Inverter Basic Functions of EM303A 1.2.1 Process PID Control 2 process PID control modes: Speed process PID control and torque process PID control. When output of process PID control is taken as inverter’s speed input, it is speed process PID control.
  • Page 12 User Manual EM303A General Purpose Inverter 1.2.7 Low Noise Design Due to the high frequency harmonic wave with the output of inverter, the motor generates the electromagnetic noise inevitably. Usually, electromagnetic noise can be lowered by increasing carrier frequency, which, however, in turn makes the inverter overheat, and the rated output current is required to be decreased by 5% for every additional 1 kHz in carrier frequency.
  • Page 13 User Manual EM303A General Purpose Inverter interval. Meanwhile, if speed search is active, inverter will automatically detect motor speed and direction to make it return the setting input frequency smoothly. 1.2.15 Multi-function Numeric Input Terminals 7 multi-function numeric input terminals X1 ~ X7 of EM303A can be programmed based on real needs.
  • Page 14 User Manual EM303A General Purpose Inverter with the requirements of setting input. JOG running status: Set by keypad, external terminal or RS485 to make motor run per JOG input speed. JOG stop status: Refer to the process that the output frequency drops to zero in JOG deceleration time after JOG running command is not active.
  • Page 15 User Manual EM303A General Purpose Inverter Figure 1-1 Speed Setting Modes...
  • Page 16 User Manual EM303A General Purpose Inverter Figure 1-2 Torque Input Modes...
  • Page 17 User Manual EM303A General Purpose Inverter 1.3.4 Operation Control Mode of Inverter The operation control mode of inverter refers to the action conditions when inverter enters operation status, which includes 3 modes as controlled by keypad operation, terminal operation, and RS485 communication. Terminal operation mode is categorized as 2-wire sequence, and 3-wire sequence.
  • Page 18: Installation

    Check the devices reference marked on purchase order. the label. Any part damaged. Check the outlook if any damages. Any screw loosened. Check with a screwdriver if necessary. Contact the distributor or SINEE directly for quality issue. Nameplate Model Numbering Scheme...
  • Page 19 User Manual EM303A General Purpose Inverter 2.2 Overall and Installation Dimensions Classified to 10 sizes for total 30 models of EM303A, installation dimensions as shown in Figure 2-1 and Table 2-2. The keypad can be installed on the metal panel separately with a hole size of 116.5±0.1(L)*71.5±0.1 (W)mm, and applicable panel thickness:1.2~2.0mm 2-M3 (a)Keypad Dimensions for Installation...
  • Page 20 User Manual EM303A General Purpose Inverter Table 2-2 Overall and Installation Dimensions of EM303A Model No. d Frame EM303A-0R7G/1R1P-3CB EM303A-1R1G/1R5P-3CB EM303A-1R5G/2R2P-3CB EM303A-2R2G/3R0P-3CB EM303A-3R0G/4R0P-3CB EM303A-4R0G/5R5P-3CB EM303A-5R5G/7R5P-3CB EM303A-7R5G/9R0P-3CB EM303A-9R0G/011P-3CB EM303A-011G/015P-3CB EM303A-015G/018P-3CB EM303A-018G/022P-3C EM303A-022G/030P-3C EM303A-030G/037P-3C EM303A-037G/045P-3C EM303A-045G/055P-3C EM303A-055G/075P-3C EM303A-075G/090P-3C EM303A-090G/110P-3C EM303A-110G/132P-3C EM303A-132G/160P-3C EM303A-160G/185P-3C EM303A-185G/200P-3C 1060 1034...
  • Page 21 User Manual EM303A General Purpose Inverter 2.3 Considerations of Installation Site 2.3.1 Installation Site Considerations for installation site: Good ventilation indoor Ambient temperature: -10°C~+40°C No high temperature and high moisture, humidity:<90%RH, no water drops or any other condensation Never install on flammable materials No direct sunlight No flammable, corrosive gas or liquid No dust, floating fiber or metal particles...
  • Page 22 User Manual EM303A General Purpose Inverter 2.5 Disassembly and Assembly of Keypad Under general circumstances, it is unnecessary to disassemble the keypad, and just remove the cover to assemble and wire. On special occasions, disassemble the keypad by following steps. Remove the front cover: For EM303A-7R5 or below, push the cover vertically from the bottom with two hands, and then lift up outwards.
  • Page 23 User Manual EM303A General Purpose Inverter Figure 2-4 Disassemble the Keypad Figure 2-5 Assemble the Keypad...
  • Page 24: Wiring

    User Manual EM303A General Purpose Inverter 3 Wiring 3.1 Connections to Peripherals Connections between EM303A and its peripherals are shown in Figure 3-1 Figure 3-1 EM303A Peripherals Connections...
  • Page 25: Ain C Ircuit T Erminals

    User Manual EM303A General Purpose Inverter 3.2 Wiring Main Circuit Terminals 3.2.1 Main Circuit Terminal Block See Figure 3-2 for main circuit terminal block. (a) Main Circuit Terminal Block of EM303A-015 or below (b)Main Circuit Terminal Block of EM303A-018~075 POWER MOTOR (c) Main Circuit Terminals of EM303A-090 or above Figure3-2 Main Circuit Terminal Block...
  • Page 26 User Manual EM303A General Purpose Inverter 3.2.2 Main Circuit Terminal Functions The main circuit terminal functions of EM303A are listed in Table 3-1. Wire the terminals correctly as per corresponding function. Table 3-1 Main Circuit Terminal Functions Terminal Function R, S, T AC power input terminals for connecting to 3-phase AC power.
  • Page 27 User Manual EM303A General Purpose Inverter If single MCCB is shared by two or more inverters or other devices, the contact of fault output relay shall be connected to power contactor coil, so that the power supply will be turned off by the fault signals, as shown in Figure 3-4. EM303A MCCB Fault Relay...
  • Page 28 User Manual EM303A General Purpose Inverter Installing a Surge Absorber Install a surge absorber for inductive loads (electromagnetic contactors, solenoid valves, solenoid coils, or electromagnetic circuit breakers) nearby the inverter. Installing a Noise Filter on Power Supply Side To filter noise transmitted between power cable and the inverter, and the impact on power grid caused by the noise produced by the inverter.
  • Page 29 User Manual EM303A General Purpose Inverter Never Connecting Power Supply Cable to Output Terminals Never connect power supply cable to output terminals. If power is input to the output terminals, the inverter would be damaged. Never Short-Circuiting or Grounding Output Terminals Never touch output terminals directly with bare hands, or connect the output cable to the housing of inverter.
  • Page 30 User Manual EM303A General Purpose Inverter The distance between output cables and signal line should > 30cm, and the inductive interference will be reduced considerably, as shown in Figure 3-8. Figure 3-8 Countermeasures Against Inductive Interference Countermeasures Against Radio Frequency Interference (RFI) RFI will be generated from the inverter as well as the input cable and the output cable.
  • Page 31 User Manual EM303A General Purpose Inverter 3.2.6 Main Circuit Cable and Terminal Screw Size See Table 3-3 for the specifications of main circuit cable and terminal screw. Table 3-3 Main Circuit Cable and Terminal Screw Specifications Cable Tightening Model No. Terminal Cable Size...
  • Page 32 User M Manual EM30 3A General Purpose I Inverter 2.7 Ground Wiring Make sure the gro ound terminal ounded. Do not share the g grounding cable with welding machine or p power equipment. The size of grou unding cable should m meet the technical st tandard of electrical appliances, and th...
  • Page 33 User Manual EM303A General Purpose Inverter 3.3.2 Function and Wiring of Control Circuit Terminals Function of control circuit terminals as shown in Table 3-4 Table 3-4 Function of Control Circuit Terminals Mode Terminal Terminal Name Terminal Function 0/2~10V VS Analog voltage input (Configured as numeric input terminal) 0/2~10V VF Analog voltage input...
  • Page 34 User Manual EM303A General Purpose Inverter 3.3.2.1 Wiring the Analog Input Terminals Wiring terminals VS and VF through analog voltage signal: When analog voltage input signal is as the external power supply, wire terminals VS and VF as per the method shown in Figure 3-12-a. When analog voltage input signal is as the potentiometer, wire terminals VS and VF as per the method shown in Figure 3-12-b.
  • Page 35 User Manual EM303A General Purpose Inverter 3.3.2.3 Wiring Relay Output Terminal The surge voltage absorbing circuit should be installed for inductive load like relay or contactor. For instance: RC absorbing circuit (please note that the leakage current should be less than the working current of contactor or relay being controlled), VDR or fly-wheel diode and etc.
  • Page 36 User Manual EM303A General Purpose Inverter 3.3.2.6 Wiring Communication Terminal Terminals A+ and A- are the RS485 communication interfaces of the inverter. The control network between PC or PLC and inverter can be achieved through connecting communication with PC or PLC. See Figure 3-15 and Figure 3-16 for connection of RS485, RS485/RS232 converter and EM303A.
  • Page 37 User Manual EM303A General Purpose Inverter 3.3.5 Standard Control Circuit Wiring See Figure 3-17 for standard control circuit wiring of EM303A. Figure 3-17 Standard Control Circuit Wiring of EM303A Remarks: EM303A-055 or above: No PB terminal.
  • Page 38: Keypad Wire

    User Manual EM303A General Purpose Inverter 3.4 Extending Keypad Wire Disassemble the keypad of EM303A as per the method shown in Figure 2-3, connect to an extension wire, and then assemble the keypad in a proper place and take it as a control panel. Disassemble the keypad and connect extension keypad wire by following the method as shown in Figure 3-18.
  • Page 39: Keypad Operation

    User Manual EM303A General Purpose Inverter Keypad Operation 4.1 Type and Function of Keypad EM303A keypad consists of 5-bit LED display, operation buttons and analog potentiometer. As shown in Figure 4-1. User can perform function setting, status monitoring, fault monitoring, start/stop control, and jog operation for EM303A through keypad.
  • Page 40: O Peration M Ode

    User Manual EM303A General Purpose Inverter Select function parameter, menu or increase the value of setting parameters, and increase the present effective reference numeric input data. Select function parameter, menu or reduce the value of DOWN setting parameter, and reduce the present effective reference numeric input data.
  • Page 41: Trial Operation

    User Manual EM303A General Purpose Inverter 5 Trial Operation 5.1 Trial Operation Procedures Table 5-1 Procedures of Trial Operation Procedure Working Scope Check inverter’s rated power, and install the inverter as per the Installation requirements stated in Chapter 2. Wiring the Inverter Wiring as per the requirements stated in Chapter 3.
  • Page 42 User Manual EM303A General Purpose Inverter Set rotational direction, F/R control, acceleration/deceleration General Parameter time, control mode, star/stop mode, and input mode directly based Setting on driving system working conditions. Operation Set parameters of V/F curve scaling, torque boost, slip Control V/F Control compensation, and AVR function based on load needs.
  • Page 43: P Recautions

    User Manual EM303A General Purpose Inverter 5.2 Trial Operation Precautions 5.2.1 Turn off the Power Checks before power-off: Voltage of power supply:3-phase 380V/415V, 50Hz Connect the input power supply cable to the input terminals R,S, and T of inverter Connect the output terminals U, V, and W of inverter to the input terminals of motor All control circuit terminals are connected to correct control device, and terminals shall be off.
  • Page 44 User Manual EM303A General Purpose Inverter Operation Status Monitoring 1. Change input frequency or rotation direction, and monitor if there is vibration or unexpected noise with the motor or not. 2. Check if inverter runs stably. 5.2.4 On-Load Operation After idling operation of motor is succeeded, connect motor to the mechanical load for a trial operation.
  • Page 45: Parameter Tables

    User Manual EM303A General Purpose Inverter 6 Parameter Tables 6.1 Format of Parameter Tables 17 groups of parameter of EM303A: F0, F1, F2, F3, F4, F5, F6, F7, F8, F9, FA, Fb, FC, Fd, FE, C0, and E0, 32 items in each group. F0~FE are function setting parameters which consist of two sections.
  • Page 46: P Arameters

    User Manual EM303A General Purpose Inverter 6.2 Parameters Section 1 General Parameters 6.2.1 Group F0: General Parameters Function Range Unit Default Type F0-00 Speed Reference Frequency: 0.00~Fmax/0.0~Fmax 0.00/0 Input Monitoring Speed: 0~F*Customer defined 0.0/0 Torque Reference scaling F0-01 0.00 Input Monitoring Torque input: 0.00~Limited torque 0: V/F open loop Control 1: Not used...
  • Page 47 User Manual EM303A General Purpose Inverter Time Jog Deceleration F0-13 0.00~600.00 S/min 15.00 ● Time F0-14 Carrier Frequency 1.000~16.000 2.000 ● 0: Automatic torque boost 1~10: Fixed torque boost curve 11~20: Oil pump motor boost curve 21~30: Synchronous motor boost F0-15 Torque Boost curve...
  • Page 48 User Manual EM303A General Purpose Inverter 6.2.2 Group F1: Motor Parameters Function Range Unit Default Type 0: AC induction motor F1-00 Motor Type 〇 1: Not used F1-01 Motor Rated Power 0.40~480.00 XXXX 〇 F1-02 Motor Rated Voltage 60~660 〇 F1-03 Motor Rated Current 0.1~1500.0...
  • Page 49 User Manual EM303A General Purpose Inverter 6.2.3 Group F2: Input/Output Terminal Parameters Function Range Unit Default Type Multi-function Input Terminal F2-00 〇 X1-RUN Multi-function Input Terminal F2-01 〇 X2-F/R Multi-function Input Terminal F2-02 〇 X3-D1 Multi-function Input Terminal F2-03 〇 X4-D2 See Table 6-1 Multi-function Input Terminal...
  • Page 50 User Manual EM303A General Purpose Inverter Table 6-1 Functions of Numeric Multi-function Input Terminals Function Function Switching Speed Input Setting to Auxiliary Disabled Speed Setting Switching Primary Speed Setting to Regular Speed Setting Switching Regular Speed Input Setting to F/R Forward/Reverse Command Numeric Speed Input Switching Jog Input Setting to Jog Numeric Preset Speed Terminal 1...
  • Page 51 User Manual EM303A General Purpose Inverter Table 6-2 Functions of Numeric Multi-function Output Terminals Function Function Inverter Runs(Enabled at running) Overload Alarming Output Frequency Reach Signal FAR Overvoltage Stall (Enabled at running) Output Frequency Detection Range Current Limit FDT1(Enabled at running) Output Frequency Detection Range Frequency Zero Speed Detection FDT2(Enabled at running)
  • Page 52 User Manual EM303A General Purpose Inverter Table 6-3 Analog Outputs Full Scales Full Scale Full Scale Signal Signal (100.0%) (100.0%) Output Frequency Fmax 20mA Fmax Input Frequency 20mA Synchronous Fmax Not Used Frequency PG Feedback Fmax +10V +10V Frequency Estimated Feedback Fmax 10.00V Frequency...
  • Page 53 User Manual EM303A General Purpose Inverter 6.2.4 Group F3: Preset Speed Operation Parameters Function Range Unit Default Type F3-00 Preset Speed 1 0.00~Fmax/0.0~Fmax 0.00 ● F3-01 Preset Speed 2 0.00~Fmax/0.0~Fmax 5.00 ● F3-02 Preset Speed 3 0.00~Fmax/0.0~Fmax 10.00 ● F3-03 Preset Speed 4 0.00~Fmax/0.0~Fmax 15.00...
  • Page 54 User Manual EM303A General Purpose Inverter 6.2.5 Group F4: General Parameters of PID Function Range Unit Default Type 0: Numeric PID Setting 1: VS PID Regular 2: IS F4-00 〇 Setting Mode 3: VF 4: IF 5: VP PID Numeric F4-01 0.00~10.00 ●...
  • Page 55 User Manual EM303A General Purpose Inverter LCD Language F4-16 0: Chinese, 1: English 〇 Options F4-17 Not Used If Parameters Change with 0: Unchanged F4-18 〇 inverter’s 1: Changed working status Parameter F4-19 0~831 ● Setting Display Parameters displayed in F4-20 0~831 ●...
  • Page 56 User Manual EM303A General Purpose Inverter 6.2.6 Group F5: General Parameters of Vector Control Function Range Unit Default Type F5-00 Speed Proportion Gain ASR_P1 0.00~100.00 15.00 ● Speed Integration Time 0.000~30.000 F5-01 0.200 ● ASR_Ti1 0.000: No Integration Speed Differentiation Time F5-02 0.000~10.000 0.000...
  • Page 57 User Manual EM303A General Purpose Inverter 0: Positive Torque F5-13 Torque Direction ● 1:Negative Torque 0: Upper Limit Frequency 1: VS* Upper Limit Frequency Upper Limit Frequency Limiting F5-14 2: IS*Upper Limit Frequency 〇 of Torque Control 3: VF*Upper Limit Frequency 4: IF*Upper Limit Frequency F5-15 Preset Torque Current 1...
  • Page 58 User Manual EM303A General Purpose Inverter 6.2.7 Group C0: Monitoring Parameters Function Range Unit Default Type C0-00 Output Frequency 0.00~Fup/0.0~Fup × C0-01 C0-02 Output Frequency Torque Upper Limit 0.00~Fmax/0.0~Fmax × C0-03 Frequency C0-04 Synchronous 0.00~Fup/0.0~Fup × Frequency C0-05 C0-06~ C0-07 Not Used C0-08 Estimated Feedback 0.00~Fup/0.0~Fup...
  • Page 59 User Manual EM303A General Purpose Inverter 6.2.8 Group E0: Fault Parameters Trip and Parameter Function Unit Default Type Description 00: No fault SC: Short circuit HOC: Instantaneous overcurrent HOU: Instantaneous overvoltage SOC: Stable overcurrent SOU: Stable overvoltage SLU: Stable undervoltage ILP: Input phase loss OL: Overload OH: Heatsink overheating...
  • Page 60 User Manual EM303A General Purpose Inverter DC Bus Voltage at E0-11 XXXX ◇ Fault Running Direction at E0-12 FOr:Forward, rEV:Reverse ◇ Fault ACC:Acceleration Running Status at E0-13 CON:Constant speed ◇ Fault dEC:Deceleration 0:Normal E0-14 Stalling Status at Fault UL:Overvoltage stall ◇...
  • Page 61 User Manual EM303A General Purpose Inverter Section 2 Advanced Parameters 6.2.9 Group F6: Program Operation Control (PLC) Function Range Unit Default Type Ones place: Options of speed program operation mode 0: Monocycle 1: Operate as per Preset Speed 7 after monocycle 2: Limited times of continuous cycle 3: Continuous cycle...
  • Page 62 User Manual EM303A General Purpose Inverter F6-08 Operation Time T1 0.0~6000.0 S/min 30.0 ● F6-09 Operation Time T2 0.0~6000.0 S/min 30.0 ● F6-10 Operation Time T3 0.0~6000.0 S/min 30.0 ● F6-11 Operation Time T4 0.0~6000.0 S/min 30.0 ● F6-12 Operation Time T5 0.0~6000.0 S/min 30.0...
  • Page 63 User Manual EM303A General Purpose Inverter 6.2.10 Group F7: Advanced Parameters of Operation Function Range Unit Default Type Ones place: Overload alarm detection 0: Detect all the time F7-00 Overload Alarm Control 1: Detect at constant speed 〇 Tens place: Stop if alarming 0: No alarm, run continuously 1: Delayed stop after alarm Overload Alarm Detection...
  • Page 64 User Manual EM303A General Purpose Inverter 6.2.11 Group F8: Input/Output Bias Function Range Unit Default Type Ones place: VS voltage options 0: 0~10V 1: 2~10V Tens place: VF voltage options 0: 0~10V Voltage /Current 1: 2~10V F8-00 0000 〇 Input Options Hundreds place: IS current options 0: 4~20mA...
  • Page 65 User Manual EM303A General Purpose Inverter 0: Input / output bias 0 F8-02 VP Bias Options 1: Input / output bias 1 〇 2: Input / output bias 2 F8-03 VP Filter Time 0.00~60.00 0.10 ● F8-04 VS Filter Time 0.00~60.00 0.10 ●...
  • Page 66 User Manual EM303A General Purpose Inverter 6.2.12 Group F9: Speed Setting Options Function Range Unit Default Type 0: Stop in keypad start/stop mode Function of STOP 1: Stop in all start/stop modes 〇 F9-00 Button 2: Stop in keypad start/stop mode, external fault trips in other modes 0:Editable through keypad and RS485 Parameter Editing...
  • Page 67 User Manual EM303A General Purpose Inverter 1: Jog numeric speed setting mode + primary speed setting mode 2:Jog numeric speed setting mode + auxiliary speed setting mode Hundreds place: Auxiliary speed setting direction 0: Primary speed + auxiliary speed 1: Primary speed - auxiliary speed 0: Program Operation 1: Wobbulation Mode 2: Stepping Mode 0...
  • Page 68 User Manual EM303A General Purpose Inverter Thousands place: Process PID Output mode options 0: PID output 1: VS* PID output 2: VF* PID output 3: IS* PID output 4: IF* PID output 5: Auxiliary frequency* PID output Detecting Frequency 0.00~50.00/0.0~50.0 0.00 〇...
  • Page 69 User Manual EM303A General Purpose Inverter 6.2.13 Group FA: Advanced Parameters of Vector Control Function Range Unit Default Type Ones place: Primary torque setting mode 0: Regular torque setting mode 1: Special torque setting mode 2: Process PID torque setting mode Tens place: Integrated torque setting mode 0: Primary torque setting mode...
  • Page 70 User Manual EM303A General Purpose Inverter Ones place: Regular torque options 0: Regular torque input 1: VS* Regular torque input 2: VF* Regular torque input 3: IS* Regular torque input 4: IF* Regular torque input Tens place: Special torque options 0: Special torque input 1: VS* Special torque input 2: VF* Special torque input...
  • Page 71 User Manual EM303A General Purpose Inverter 6.2.14 Group Fb: Advanced Parameters of PID Function Range Unit Default Type Fb-00 PID Setting Mode 0: General mode 1: Special mode 〇 0: Program operation 1: Stepping mode 0 2: Stepping mode 1 Fb-01 Special Mode 〇...
  • Page 72 User Manual EM303A General Purpose Inverter 6.2.15 Group FC: Operation Control Parameters Function Range Unit Default Type Acceleration/ 0:Linear Mode FC-00 Deceleration 〇 1:Not Used Mode FC-01~FC-02 Not Used 0: Run at power-on FC-03 Fan Control 〇 1: Run at start-up FC-04 Fan Delay Time 0.00~600.00...
  • Page 73 User Manual EM303A General Purpose Inverter Stall Control 0:Dynamic brake+Stall protection 1:Dynamic brake Tens place: Dynamic brake options 0:Enabled at power-on 1:Enabled at running 2:Enabled at deceleration Hundreds place:Overvoltage stall mode 0:Always enabled 1:Disabled at acceleration, enabled at deceleration Thousands place:Overvoltage stall mode 0: Fixed overvoltage thresholds enabled 1: Auto-overvoltage thresholds enabled Stall Voltage at...
  • Page 74 User Manual EM303A General Purpose Inverter 6.2.16 Group Fd: Auxiliary Parameters Function Range Unit Default Type Fd-00 Frequency Base Fbase:20.00~600.00/20.0~6000.0 50.00 〇 Fd-01 Voltage 1 0.00~100.00 1.00 ● Fd-02 Voltage 2 0.00~100.00 4.00 ● Fd-03 Voltage 3 0.00~100.00 10.00 ● 0.00~100.00 Fd-04 Voltage 4...
  • Page 75 User Manual EM303A General Purpose Inverter 6.2.17 Group FE: Terminal Function User Defined Parameters Function Range Unit Default Type Numeric Input 0~100; 1=0.50mS 〇 FE-00 Filter Times Terminal Input Positive/Negative 00000000 〇 FE-01 0:Positive Logic On at 0V/Off at 24V Logic 1: Negative Logic Off at 0V/ On at 24V X1 Input Delay...
  • Page 76 User Manual EM303A General Purpose Inverter Hundreds place: R1 output type 0: Level signal 1: Pulse signal Ones place: Y1 output logic control 0: Y1 is on in positive logic 1: Y1 is off at negative logic Tens place: Y2 output logic control Terminal Output 0: Y2 is on in positive logic FE-07...
  • Page 77: Parameter Description

    User Manual EM303A General Purpose Inverter 7 Parameter Description 7.1 Group F0: General Parameters Function Range Unit Default Type Speed Reference F0-00 Frequency:0.00~Fmax/0.0~Fmax 0.00 Input Monitoring Speed: 0~F*Customer defined scaling × Torque Reference F0-01 Torque input:0.00~Limited Torque 0.00 Input Monitoring F0 - 00 and F0 - 01 are optional, and only for reference.
  • Page 78 User Manual EM303A General Purpose Inverter Remarks: This mode is only applied to speed control mode, not for torque control. ▲ F0-02=3 SVC1 : Vector control mode 1 without speed feedback (torque control). It not only estimates speed in real-time, but also controls feedback. Speed and current are under real-time close-loop control all the time.
  • Page 79 User Manual EM303A General Purpose Inverter Function Range Unit Default Type 0: Keypad 〇 F0-04 Start/Stop Control Options 1: Terminal 2: RS485 0:RUN-Run, F/R-Forward/Reverse 1: RUN- Forward,F/R- Reverse Terminal Start/Stop 〇 F0-05 2: RUN-NO forward, Control Options Xi-NC stop, F/R-NO reverse 3: RUN-NO run, Xi-NC stop,...
  • Page 80 User Manual EM303A General Purpose Inverter Two terminal control modes: 2-wire sequence and 3-wire sequence 2-wire sequence: F0-05=0 ON/OFF of terminal RUN controls start/stop of inverter, and OFF/ON of terminal F/R controls forward/reverse. If F0-24=1, when reverse is prohibited, terminal F/R is off. When stop mode is selected as ramp-to-stop, the sequence diagram is as shown in Figure 7-2 (b).
  • Page 81 User Manual EM303A General Purpose Inverter 3-wire sequence: F0-05=2 RUN is NO forward running button, F/R is NO reverse running button, Xi is NC stop button, all of them will be on at pulse edge. In running status, press Xi button, the inverter stops. When stop mode is selected as ramp-to-stop (F0 - 20=0), the sequence diagram refers to Figure 7-3 (b).
  • Page 82 User Manual EM303A General Purpose Inverter Use the buttons and switches correctly by following the mode illustrated in the above diagrams of EM303A 3-wire sequences, otherwise, malfunctions may occur. Function Range Unit Default Type 0:Primary numeric frequency 1:VP 2:VS 3:IS 4:Not used Regular Speed 5:K3*VS+K4*IS...
  • Page 83 User Manual EM303A General Purpose Inverter Function Range Unit Default Type F0-07 Primary Numeric Frequency Setting 0.00~Fmax/0.0~Fmax 0.00 ● F0-08 Motor Running Direction 0:Forward 1:Reverse ● F0-07 The primary numeric frequency setting value is set by F0-07, and its range: 0.00 ~ Fmax/0.0 ~...
  • Page 84 User Manual EM303A General Purpose Inverter In JOG running mode, inverter runs at the frequency set by F0-11, the acceleration/deceleration time taken for running to Fmax is set by F0-12/F0-13. Jog acceleration time is the time taken for the output frequency to rise from ★...
  • Page 85 User Manual EM303A General Purpose Inverter Function Unit Default Range Type F0-16 Maximum Frequency Fmax: 20.00~600.00/20.0~6000.0 50.00 〇 F0-17 Upper Limit Frequency Fup: Fdown ~Fmax 50.00 〇 F0-18 Lower Limit Frequency Fdown:0.00~Fmax/0.0~Fmax 0.00 〇 F0-16 Fmax indicates the maximum setting frequency permitted by inverter. Range of Fmax: 20.00 ~...
  • Page 86 User Manual EM303A General Purpose Inverter Before inverter starts, the motor may be running at low speed or in opposite rotation status. If inverter starts immediately at mean time, overcurrent may occur. In order to avoid such fault, before inverter starts, please start DC brake to stop motor, and then the inverter runs to setting frequency as per setting direction.
  • Page 87 User Manual EM303A General Purpose Inverter Function Unit Default Range Type 0: Forward/Reverse Permitted F0-24 Forward/Reverse Control 〇 1: Forward/Reverse Prohibited F0-25 F/R Deadband 0.00~600.00 0.00 ● Permission of Motor Forward/Reverse F0-24=0 Reverse permitted: Motor’s running direction is set by F0-08, or controlled by terminal F/R.
  • Page 88 User Manual EM303A General Purpose Inverter Function Default Range Unit Type 0: Disabled F0-28 Default Control 〇 1: Defaults Reset 0: Parameter setting permitted F0-29 Parameter Setting Control 1: Parameter lock 0 ● 2: Parameter lock 1 Reset Default F0-28=1 Reset Default: Except motor parameters in Group F1 and FA, inverter parameter in Group Fd, and F4-28 application macros, the parameters will reset to default.
  • Page 89 User Manual EM303A General Purpose Inverter F1-03 Motor Rated Current 0.1~1500.0 XXXX 〇 F1-04 Motor Rated Frequency 20.00~600.00 XXXX 〇 F1-05 Motor Rated Speed 1~30000 XXXX 〇 F1-06 Motor Wiring Mode 0:Y Wiring 1:Δ Wiring 〇 F1-07 Motor Rated Power Factor 0.50~0.99 F1-14 Motor Efficiency...
  • Page 90 User Manual EM303A General Purpose Inverter After parameters autotuning completed, F9-15=0 will be set automatically. When slip compensation is active, autotune motor parameter first, so that the motor will obtain the optimum performance. EM303A supports ModBus protocol, RTU format, and single-master and multi-slave communication network with RS485 bus.
  • Page 91 User Manual EM303A General Purpose Inverter sent by master inverter received through F0-07 or F9-06 will be the setting numeric frequency of slave inverter. Remarks: See the Appendix for EM303A ModBus communication protocol and examples. Function Range Unit Default Type F1-22 Analog Input Gain K1 0.00~600.00...
  • Page 92 User Manual EM303A General Purpose Inverter control mode is in terminal control mode, when terminal X1 is on, inverter runs. Xi=0 No function This function can be used to block the terminal when its hardware breaks down. Xi=1 RUN When start/stop control mode is terminal control (F0-04=1), if the function terminal is on, the inverter will run as per the setting value of F0-05.
  • Page 93 User Manual EM303A General Purpose Inverter Xi=15 UP/DOWN clearing If taking stepping mode in operation, UP or DOWN is enabled and UP/DOWN clearing is active, input frequency returns the value of F0-07. Xi=16 Acceleration/Deceleration prohibited When acceleration/deceleration prohibiting terminal is on, acceleration/ deceleration command is prohibited, and the output frequency of inverter remains unchanged and is beyond control of input frequency, and output frequency = input frequency.
  • Page 94 User Manual EM303A General Purpose Inverter selection. Xi=24 Switch input control mode to speed control mode When the terminal is on, the present input control mode is switched to the speed control mode, and its function is equivalent to F0-03=0. After it is off, it returns the previous input control mode automatically.
  • Page 95 User Manual EM303A General Purpose Inverter In torque control mode, if the function terminal is on, then the special torque setting is switched to auxiliary torque setting mode. Its function is equivalent to setting the one’s placeof FA-00=1. After the terminal is off, it returns the previous setting mode automatically.
  • Page 96 User Manual EM303A General Purpose Inverter Preset PID Setting 6 Fb-25 Preset PID Setting 7 Fb-26 Xi=41 Preset torque current terminal 1 Xi=42 Preset torque current terminal 2 Xi=43 Preset torque current terminal 3 In preset torque current control mode, 3 function input terminals need to be defined as the preset torque current terminal.
  • Page 97 User Manual EM303A General Purpose Inverter Wobbulation operation mode starts. Xi=48 Not used Xi=49 Program operation reset When program operation (PLC) is active, if the input signal of this terminal is on, and then program operation time is cleared, and program operation starts from Section 1.
  • Page 98 User Manual EM303A General Purpose Inverter Relay output is provided by the internal relay of inverter. Relay has 1 set of NO contacts and 1 set of NC contacts. When selected program code is disabled, EB-EC is NC, and EA-EC is NO. When selected Figure7-9 Relay Contacts program code is enabled, the coil of internal relay is power-on, EB-EC is off, and EA-EC is on, as shown in Figure 7-9.
  • Page 99 User Manual EM303A General Purpose Inverter 7.4 Group F3: Preset Speed Parameters Function Range Unit Default Type F3-00 Preset Speed 1 0.00~Fmax/0.0~Fmax 0.00 ● F3-01 Preset Speed 2 0.00~Fmax/0.0~Fmax 5.00 ● F3-02 Preset Speed 3 0.00~Fmax/0.0~Fmax 10.00 ● F3-03 Preset Speed 4 0.00~Fmax/0.0~Fmax 15.00 ●...
  • Page 100 User Manual EM303A General Purpose Inverter Preset Speed 8 F3-07 Preset Speed 9 F3-08 Preset Speed 10 F3-09 Preset Speed 11 F3-10 Preset Speed 12 F3-11 Preset Speed 13 F3-12 Preset Speed 14 F3-13 Preset Speed 15 F3-14 Precautions for setting: ★...
  • Page 101 User Manual EM303A General Purpose Inverter acceleration/deceleration terminal). Function Unit Default Range Type F3-21 Acceleration/Deceleration Time Unit 0: S 1: min 〇 F3-21=0 The unit acceleration/deceleration time second. acceleration/deceleration time can be set continuously in the range of 0.00 ~ 600.00 seconds.
  • Page 102 User Manual EM303A General Purpose Inverter DC brake time ≠ 0, then DC brake enabled. F3-25 Different setting values can define different DC brake torques at stop. ★ When the parameter ≤ 30.00, the percentage base is the rated output voltage of inverter.
  • Page 103 User Manual EM303A General Purpose Inverter Control 1: Run at zero speed after lower limit frequency running time is up Lower Limit Frequency F3-29 0.00~600.00 60.00 〇 Running Time F3-28=0 When the output frequency is lower than the lower limit frequency, the inverter will always run as per lower limit frequency.
  • Page 104 User Manual EM303A General Purpose Inverter keypad. Upon the completion of uploading, F3-31=0 is set automatically. F3-31=2 Download the parameters from the EEPROM on keypad to the control panel of inverter. Upon the completion of downloading, F3-31=0 is set automatically. The function may be applied to the setting parameter copy between different inverters, and to save the initial parameters defined by user.
  • Page 105 User Manual EM303A General Purpose Inverter Figure 7-13 Function of PID Control EM303A PID Control Logic Control logic of internal process PID of EM303A is as shown in Figure 7-14. Through PID close-loop control, an inverse feedback control system is formed between EM303A and control object.
  • Page 106 User Manual EM303A General Purpose Inverter Figure 7-14 Internal Process PID Control Logic of EM303A...
  • Page 107 User Manual EM303A General Purpose Inverter Process PID control can form speed PID close-loop control (taking speed as control object) and torque PID close-loop control system (taking torque current as control object). Set F0-03=0, and F0-26=2, i.e. the inverter can be set as speed process PID control mode.
  • Page 108 User Manual EM303A General Purpose Inverter PID feedback signal is input by the analog input terminal. The feedback value can be operated mathematically based on real needs. F4-02=0 VF input voltage is PID feedback. F4-02=1 IF input current is PID feedback. F4-02=2 VS input voltage is PID feedback.
  • Page 109 User Manual EM303A General Purpose Inverter Function Unit Default Range Type F4-06 PID Output Gain 0.00~100.00 ● F4-06 Output gain is to regulate the PID output function range. The unit is %. Function Unit Default Range Type F4-07 Proportion Gain GP 0.00~100.00 0.40 ●...
  • Page 110 User Manual EM303A General Purpose Inverter Output Before Adjustment After Adjustment Time Figure 7-15 Figure7-16 Output overshoot Suppression Output periodic oscillation suppression Function Unit Default Type Range F4-11 PID Positive Output Limit 0.00~100.00 100.00 ● F4-12 PID Negative Output Limit 0.00~100.00 0.00 ●...
  • Page 111 User Manual EM303A General Purpose Inverter Function Unit Default Range Type 0: Unchanged parameters change with F4-18 〇 inverter’s working status 1: Changed F4-19 Parameters Setting Display 0~831 ● F4-18=0 When setting parameters, press RUN/JOG button on keypad, the one which remains unchanged is the monitoring parameter.
  • Page 112 User Manual EM303A General Purpose Inverter 7.6 Group F5: General Parameters of Vector Control Function Range Unit Default Type F5-00 Speed Proportion Gain ASR_P1 0.00~100.00 15.00 ● 0.000~30.000 F5-01 Speed Integration Time ASR_Ti1 0.200 ● 0.000: No Integration Speed Differentiation Time F5-02 0.000~10.000 0.000...
  • Page 113 User Manual EM303A General Purpose Inverter Torque control (SVC1) EM303A could be under torque control in SVC1. In SVC1, torque control function refers to the occasions when the excitation current of motor is in close-loop, the actual motor speed can be estimated in real time through the internal motor magnetic flux and the speed estimation function of inverter, thus motor torque current can be actively controlled.
  • Page 114 User Manual EM303A General Purpose Inverter ★ Customer can set the current limit based on actual needs to protect motor or meet the working requirements. F5-09 and F5-10 limit the torque limiting current in power-driven and brake status respectively. See Figure 7-18.
  • Page 115 User Manual EM303A General Purpose Inverter F5-11=5 Input current of analog input terminal IF is the setting value of torque current. F5-11=7 Combine all analog values as the setting value of torque current, and then adjust corresponding proportion according to each coefficient. F5-12 Input as the setting value of torque current by keypad directly.
  • Page 116 User Manual EM303A General Purpose Inverter Function Range Unit Default Type Positive/Negative 0: Positive/Negative Torque Permitted F5-22 〇 Torque Control 1: Negative Torque prohibited Positive/Negative F5-23 0.00~600.00 0.00 ● Torque Deadband F5-22=1 Negative torque prohibited. F5-13 and F5-23 will be blocked. F5-22=0 Negative torque permitted.
  • Page 117 User Manual EM303A General Purpose Inverter 7.7 Group C0: Monitoring Parameters When EM303A is running, operation parameters can be acquired by checking monitoring parameters in Group C0. All monitoring parameters are read only. When inverter is running, F4-20 defines the default of displayed monitoring parameter. Serial Function Unit...
  • Page 118 User Manual EM303A General Purpose Inverter Running Time of In program operation, the unit of running time at C0-20 Present Section of present operation section is up to the ten S/min Program Operation thousand’s place of F6-00. C0-21 Output Power Output power calculated by inverter Present PID setting voltage value(Controlled by C0-22...
  • Page 119 User Manual EM303A General Purpose Inverter 8 Autotuning Motor Parameters 8.1 Autotuning Motor Parameters Autotuning motor parameter is required when the inverter is in vector control mode. However, if the inverter is not in vector control mode, autotuning is also suggested for acquiring higher control precision at initial operation.
  • Page 120: Autotuning Procedure

    User Manual EM303A General Purpose Inverter Make sure that the motor stops before autotuning, otherwise, autotuning cannot be performed. Autotuning is only enabled when the inverter is in keypad control mode. (F0-04=0) If overcurrent or overvoltage trips in the process of autotuning, acceleration/deceleration time 1 can be adjusted (F0-09 and F0-10) appropriately.
  • Page 121 User Manual EM303A General Purpose Inverter Set F1-15=1, inverter performs stationary autotuning. Set F1-15=2, inverter performs rotational autotuning. It takes about 2 minutes to finish autotuning motor parameters, and the keypad displays returns the initial power-on status. In autotuning, press STOP/RESET button to cancel autotuning, and inverter will return parameter setting status.
  • Page 122 User Manual EM303A General Purpose Inverter Motor rated slippage is related to the idling current and pole numbers of motor, and it can be calculated by the following formula: ★ Motor rated slippage [Hz] = Motor rated frequency [Hz] – Rated rotational speed [rpm] *Motor pole numbers/120.
  • Page 123: Troubleshooting

    User Manual EM303A General Purpose Inverter 9 Troubleshooting 9.1 Faults When anything unexpected happens, the corresponding trip code and parameters will be displayed on the keypad, fault relay acts, fault output terminal is on, and inverter output stops. When fault occurs, if the motor is running, it will coast to stop. See Table 9-1 for EM303A fault trips and troubleshootings.
  • Page 124 User Manual EM303A General Purpose Inverter 1. Prolong acceleration/deceleration 1. Acceleration/deceleration time is too time. short. 2. Reduce setting value of torque Overload 2. In V/F control mode, the setting value boost. of torque boost is too big. 3. Replace with the inverter which 3.
  • Page 125 User Manual EM303A General Purpose Inverter 9.2 Fault Analysis After power is on, due to improper function setting and incorrect wiring between inverter and external control terminals, motor cannot meet the expected working requirement. Fault analysis as described in this chapter can be taken as the reference to take as the corrective actions.
  • Page 126 User Manual EM303A General Purpose Inverter acceleration time of motor is longer than the setting time. Check if the setting current limit of inverter is excessively low. If the setting acceleration time is too long, confirm its parameters. 9.2.4 Excessively Long Deceleration Time When dynamic brake enabled The brake resistance is too big.
  • Page 127 User Manual EM303A General Purpose Inverter 9.2.7 Leakage Current Circuit Breaker for Leakage Protection When inverter runs, the leakage current circuit breaker is triggered for leakage protection. Since inverter outputs high frequency PWM signal, it will generate high frequency leakage current. Select a special leakage circuit breaker with a trigger current ≥...
  • Page 128 User Manual EM303A General Purpose Inverter 10 Maintenance and Inspection 10.1 Maintenance and Inspection Due to the service environmental changes such as temperature, humidity, smoke, frost, dust, or the factors as aging of inverter’s internal components, various failures of inverter may occur. Therefore, it is required to have daily check and keep regular maintenance on inverter during use and storage.
  • Page 129 SINEE will provide warranty service under following circumstances: 1 . Warranty is only for inverter. 2 . Authorized distributors of SINEE will take responsibilities for local services within 12 months warranty period. 3 . There is a maintenance charge for any following damage occurred in 12 months.
  • Page 130 User Manual EM303A General Purpose Inverter 11 Accessories 11.1 Keypad Extension Wire Optional keypad extension wires available in the table below, select based on real needs. Remarks Parameter Name Specifications Keypad Extension Wire EM303A-3 m Keypad Extension Wire EM303A-4 m Keypad Extension Wire EM303A-5 m Keypad Extension Wire...
  • Page 131: Braking Resistor

    User Manual EM303A General Purpose Inverter See Figure 11-1 for the overall and installation dimensions of remote operation case. Figure 11-1 Outlook and Installation Dimensions of Remote Operation Case 11.3 Braking Resistor EM303A (0.75 ~ 15KW) with an integrated braking unit can be connected to braking resistor directly for quick stop.
  • Page 132 11.4 Braking Unit Separate BR100 braking unit is available for EM303A-018 or above which are without an integrated braking unit, power rang of BR100: 18.5 ~ 315kW. SINEE-make BR100 models are as shown in the following table. Average Inverter Minimum...
  • Page 133 User Manual EM303A General Purpose Inverter 12 Communication Protocol of EM303A 12.1 Application Scope 1. Applicable series: EM303A 2. Applicable network: Support ModBus protocol, RTU format, with single-master and multiple-slaves communication network of RS485 bus. The typical RTU message frame format: Data Start Bit Device Address...
  • Page 134 User Manual EM303A General Purpose Inverter Frame Structure of Receiving Message Receive Sequence Bytes Received ≥ Idle periods of 4 bits Address code Function code Byte Length High byte 2*Register number Low byte CRC parity ( L ) CRC parity ( H ) ≥Idle periods of 4 bits Command code 0x06: Write single function code or control parameter of inverter Frame Structure of Sending Message...
  • Page 135 User Manual EM303A General Purpose Inverter Command Code 0x10: Edit function codes or control parameters of inverter Frame Structure of Sending Message Transmit Sequence Bytes Sent ≥Idle periods of 4 bits Address code Function code Register start address ( H ) Register start address (...
  • Page 136 User Manual EM303A General Purpose Inverter Frame Structure of Receiving Message Receive Sequence Bytes Received ≥Idle periods of 4 bits Address code Function code Sub-function code ( H ) Sub-function code ( L ) Data ( H ) Data ( L ) CRC parity (...
  • Page 137 User Manual EM303A General Purpose Inverter 12.4.4 CRC Parity Sending equipment calculates CRC parity value first, and then attaches it to the sending message. Upon receipt of the message, receiving equipment will calculate CRC parity value again, and compare the operating result with received CRC parity value.
  • Page 138 User Manual EM303A General Purpose Inverter 12.5.2 Write F0-07=30.00Hz (The setting value of primary numeric frequency of inverter No.1) Transmit Sequence Data Receive Sequence Data 12.5.3 Start Inverter Operation Transmit Sequence Data Receive Sequence Data 12.5.4 Inverter Stops Transmit Sequence Data Receive Sequence...
  • Page 139 User Manual EM303A General Purpose Inverter Appendix 1 Control Command 1(4000H) Data Meaning Data Meaning 0000H Inactive Command 0006H Ramp to Stop 0001H Forward Running 0007H Coast to Stop 0002H Reverse Running 0008H Fault Reset 0003H JOG Forward 0009H +/- Input Switch 0004H JOG Reverse 000AH...
