Summary of Contents for Beko DN161220DX

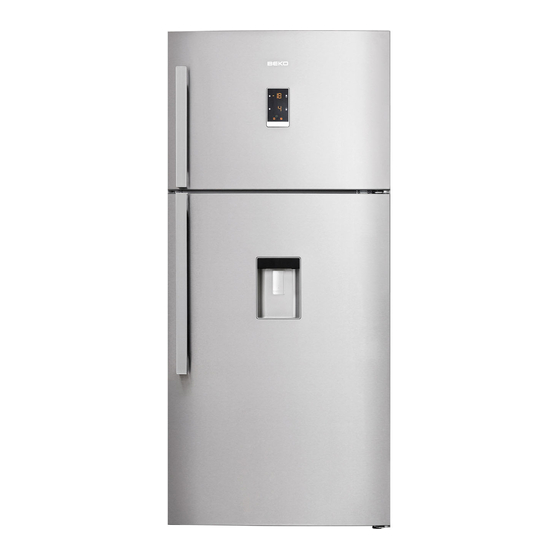

- Page 1 DN161220DX Refrigerator...
- Page 2 Please read this manual first! Dear Customer, We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service. For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.
-
Page 3: Table Of Contents
CONTENTS 1 Your refrigerator 4 Preparation 2 Important Safety 5 Using your refrigerator 13 Warnings Instrument Panel ......13 Freezing fresh food ......22 Intended use ........4 Temperature setting button ....22 For products with a water dispenser; .6 Setting the temperature of your Child safety ........6 refrigerator ........22 Compliance with WEEE Directive and... -
Page 4: Your Refrigerator
Your refrigerator Door shelves of the freezer compartment Odor filter Temperature setting indicator Glass shelves of fridge compartment Egg section Illumination glass Water dispenser filling tank Impeller Water dispenser reservoir Automatic Icematic water tank Door shelves of fridge compartment Icebox Sliding and Rotating storage containers Ice storage container (with the models having Icematic) -
Page 5: Important Safety Warnings
Important Safety Warnings Please review the following information. • For products with a freezer compartment; Failure to observe this information may cause Do not put bottled and canned liquid injuries or material damage. Otherwise, all beverages in the freezer compartment. warranty and reliability commitments will Otherwise, these may burst. - Page 6 • Never connect your refrigerator to • Do not pull by the cable when pulling off the plug. electricity-saving systems; they may damage the refrigerator. • Place the beverage with higher proofs tightly closed and vertically. • If there is a blue light on the refrigerator, do not look at the blue light with optical tools.
-
Page 7: For Products With A Water Dispenser
Child safety • Do not overload your refrigerator with excessive amounts of food. If overloaded, • If the door has a lock, the key should be the food items may fall down and hurt you kept away from reach of children. and damage refrigerator when you open • Children must be supervised to prevent the door. -
Page 8: Hca Warning
HCA Warning Things to be done for energy saving If your product's cooling system contains R600a: • Do not leave the doors of your refrigerator This gas is flammable. Therefore, pay open for a long time. attention to not damaging the cooling • Do not put hot food or drinks in your system and piping during usage and refrigerator. -
Page 9: Recommendations For Freshfood Compartment
Recommendations for freshfood compartment * OPTIONAL • Please do not let any foodstuff to come to contact with the temperature sensor in freshfood compartment.In order to maintain freshfood compartment at ideal storage temperature, the sensor must not be blocked by fodstuffs. • Do not place hot foodstuff in your appliance. -
Page 10: Installation
Installation In case the information which are given in the user manual are not taken into account, manufacturer will not assume any liability for this. Points to be paid attention to when the relocation of the refrigerator Before transportation of your refrigerator, it should be emptied and cleaned. -
Page 11: Electrical Connection
Electrical connection Disposing of your old refrigerator Connect your product to a grounded socket which is being protected by a fuse Dispose of your old refrigerator without with the appropriate capacity. giving any harm to the environment. Important: • You may consult your authorized dealer or waste collection center of your • The connection must be in compliance municipality about the disposal of your... -
Page 12: Adjusting The Legs
Adjusting the legs Changing the illumination lamp If your refrigerator is unbalanced; You can balance your refrigerator by To change the Bulb/LED used for turning its front legs as illustrated in the illumination of your refrigerator, please call figure. The corner where the leg exists is your Authorized Service. -
Page 13: Preparation
Preparation Your refrigerator should be installed at This appliance is designed to operate at least 30 cm away from heat sources such temperatures specified in the table below as hobs, ovens, central heater and stoves is equipped with Advanced Electronic and at least 5 cm away from electrical Temperature Control System [AETCS] ovens and should not be located under... -
Page 14: Using Your Refrigerator
Using your refrigerator Instrument Panel Indicator panels may vary depending on your product's model. Indicator panel aids in using your refrigerator with its audio and visual functions. (in some models) Freezer Compartment Temperature Indicator Error Status Indicator Fridge Compartment Temperature Indicator Fridge Compartment Temperature Setting Button Economy Mode Indicator Ionizer Indicator... - Page 15 1. Freezer Compartment Temperature Indicator Indicates the temperature set for freezer compartment. 2. Error Status Indicator your refrigerator does cool adequately or if there is a sensor failure, this indicator will be activated. When this indicator is active, Freezer Compartment Temperature indicator will display "e"...
- Page 16 (in some models) Freezer compartment setting button Quick fridge function indicator Fridge compartment setting button Quick fridge function button Error status indicator Fridge compartment temperature setting indicator Key lock indicator Quick Freeze function / Icematic on-off Eco Extra Function indicator button Eco Extra / Vacation Button Freezer compartment temperature setting...
- Page 17 1. Setting the freezer compartment 6. Eco Extra/Vacation Button This function allows you to set the Press this button briefly to activate the Eco temperature of freezer compartment. Press Extra function. Press and hold this button this button to set the temperature of the for 3 sec.
- Page 18 Quick Fridge indicator turns on when the If you press the Fast Freeze button Quick Fridge function is on. To cancel this repeatedly with short intervals, the electronic function, press Quick Fridge button again. circuit protection will be activated and the If you do not cancel it, Quick Fridge will compressor will not start up immediately.
- Page 19 *Optional 3.Quick Freeze Function 1. Freezer Compartment Temperature Quick Freeze indicator is illuminated Indicator when the Quick Freeze function is active. Indicates the temperature set for Freezer To cancel this function, press Quick Freeze Compartment. button again. Quick Freeze indicator will turn off and return to its normal settings.
- Page 20 Quick Freeze button repeatedly with short 8. Ice Off Indicator intervals, the electronic circuit protection will Icematic will not run when the indicator of be activated and the compressor will not this function is active. start up immediately. This function is not To activate the ice off function, you need to recalled when power restores after a power press and hold the quick freeze and quick...
- Page 21 12. Vacation Function Indicator 18.High Temperature/Error Warning This indicator illuminates when Vacation Indicator Function is active. This light illuminates during high temperature failures and error warnings. 13.Energy Saving Function When you press Energy Efficiency button, 19.Freezing Mode Selection Function Energy Efficiency Function will be activated When the Freezing button is pressed for 3 and Energy Efficiency Indicator will illuminate.
- Page 22 When the Freezing Function is active, if a power cut occurs and then power is resumed again, freezing process will be maintained from where it is interrupted. When the freezing function is tried to activated when the freezer compartment is at a temperature higher than -10 °C, ‘E’ and the warning icon on the display will flash for 30 seconds.
-
Page 23: Freezing Fresh Food
(in some models) Dual cooling system Your refrigerator is equipped with two separate cooling systems to cool the fresh food compartment freezer compartment. Thus, air in the fresh food compartment and freezer compartment do not get mixed. Thanks to these two separate cooling systems, cooling speed is much higher then other refrigerators. -
Page 24: Recommendations For Preservation Of Frozen Food
Recommendations for • Moreover, they must be well closed and made from easy-to-use and deep preservation of frozen food materials. • Pre-packed commercially frozen food • Frozen food must be used immediately should be stored in accordance with the after they are thawed and they should frozen food manufacturer's instructions never be re-frozen. for a (4 star) frozen food storage • Please observe the following instructions compartment. -
Page 25: Placing The Food
It is possible to preserve the food for a long Defrosting time only at -18°C or lower temperatures. freezer compartment defrosts You can keep the freshness of food automatically. for many months (at -18°C or lower Placing the food temperatures in the deep freeze). WARNING! • Foodstuff must be divided into portions Various frozen food... -
Page 26: Description And Cleaning Of Odor Filter
Description and cleaning of Snack compartments odor filter: Use these compartments for your food which you want to store at a temperature a Odor filter prevents unpleasant odor build- few degrees below the fridge compartment. up in your refrigerator. You can increase the inner volume of your Pull the cover, into which the odor filter refrigerator by removing any of the snack is installed, downwards and remove as... -
Page 27: Water Dispenser
Water Dispenser Filling the water dispenser's tank Water tank filling reservoir is located inside (in some models) the door rack. Open the reservoir cover and Water dispenser is a very useful feature fill in clean potable water. And then, close based on reaching cold water without the lid. - Page 28 Cleaning the water tank • Remove the water filling reservoir inside the door rack. • Remove the door rack by holding from both sides. • Grab the water tank from both sides and remove it with an angle of 45°C. • Clean the water tank by removing its lid. Important: Components of the water tank and water dispenser should not be washed in dishwasher.
-
Page 29: Sliding Storage Container
Water tray Sliding storage container Water that dripped while using the water (in some models) dispenser accumulates in the spillage tray. This accessory is designed to increase the Take out the plastic strainer as shown in usage volume of the door shelves. It allows the figure. -
Page 30: Auto Icematic
Auto Icematic Ice making (in some models) (in some models) Auto Icematic system allows you to obtain ice from the refrigerator easily. Remove the Fill the ice container with water and water tank in the fridge compartment, fill it place it into its seat. Your ice will be ready wilt water and install it back to obtain ice approximately in two hours. - Page 31 Do not place together the pear, apricot, When the crisper is overloaded with leafy peach, etc. and apple in particular which vegetables with large surfaces or vegetables have a high level of generation of ethylene such as cucumber that loses its humidity gas in the same crisper with the other quickly, if condensation is observed on the vegetables and fruit.
-
Page 32: Icematic And Ice Storage Container
Icematic and ice storage container (in some models) Using the Icematic Fill the Icematic with water and place it into its seat. Your ice will be ready approximately in two hours. Do not remove the Icematic from its seating to take ice. Turn the knobs on it clockwise by 90 degrees. -
Page 33: Ice-Cream Making Machine
Ice-cream making machine • Place the fresh freeze tray inside the base cover and slide it into the highest shelf (in some models) inside the compartment, • Push and release open the cover of the ice-cream making compartment in the freezer compartment, • Place the container into the housing at the bottom of the compartment towards the left side. • Take the ice-cream mix which is cooled • Turn the container to right side and lock it to room temperature to the ice-cream into its place,... -
Page 34: Maintenance And Cleaning
Maintenance and cleaning Protection of plastic Never use gasoline, benzene or similar surfaces substances for cleaning purposes. We recommend that you unplug the Do not put the liquid oils or oil-cooked appliance before cleaning. meals in your refrigerator in unsealed containers as they damage the plastic Never use any sharp abrasive instrument, surfaces of your refrigerator. -
Page 35: Recommended Solutions For The Problems
Recommended solutions for the problems Please review this list before calling the service. It might save you time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product. The refrigerator does not operate. - Page 36 The fridge is running frequently or for a long time. • Your new product may be wider than the previous one. This is quite normal. Large refrigerators operate for a longer period of time. • The ambient room temperature may be high. This is quite normal. • The refrigerator might have been plugged in recently or might have been loaded with food. Cooling down of the refrigerator completely may last for a couple of hours longer. • Large amounts of hot food might have been put in the refrigerator recently. Hot food causes longer running of the refrigerator until they reach the safe storage temperature.
- Page 37 Vibrations or noise. • The floor is not even or it is weak. The refrigerator rocks when moved slowly. Make sure that the floor is strong enough to carry the refrigerator, and level. • The noise may be caused by the items put onto the refrigerator. Items on top of the refrigerator should be removed. There are noises coming from the refrigerator like liquid spilling or spraying. • Liquid and gas flows happen in accordance with the operating principles of your refrigerator. It is normal and not a fault. There is a noise like wind blowing.
- Page 38 57 3021 0000/AB...
