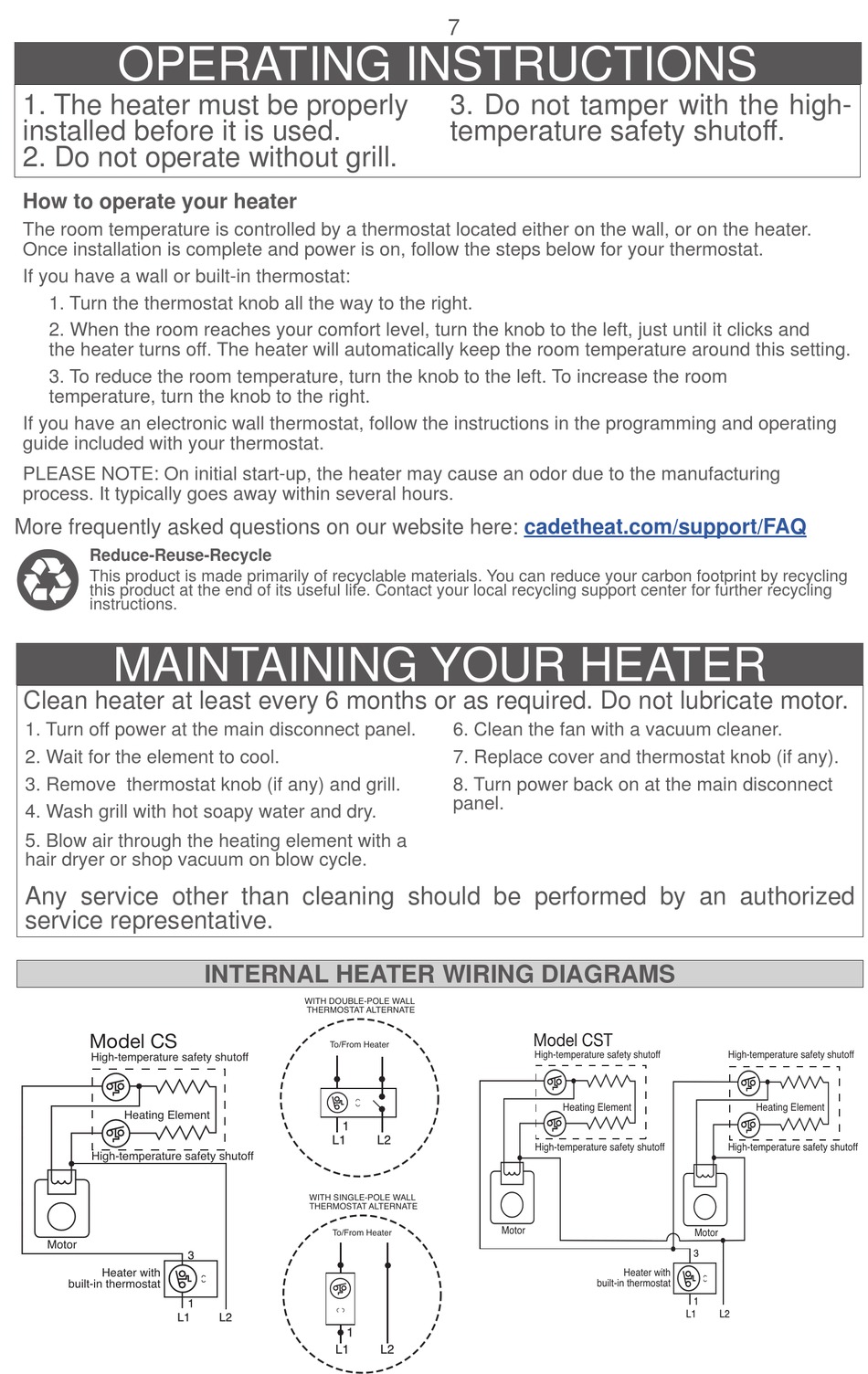

OPERATING INSTRUCTIONS
1. The heater must be properly
installed before it is used.
2. Do not operate without grill.
How to operate your heater
The room temperature is controlled by a thermostat located either on the wall, or on the heater.
Once installation is complete and power is on, follow the steps below for your thermostat.
If you have a wall or built-in thermostat:
1. Turn the thermostat knob all the way to the right.
2. When the room reaches your comfort level, turn the knob to the left, just until it clicks and
the heater turns off. The heater will automatically keep the room temperature around this setting.
3. To reduce the room temperature, turn the knob to the left. To increase the room
temperature, turn the knob to the right.
If you have an electronic wall thermostat, follow the instructions in the programming and operating
guide included with your thermostat.
PLEASE NOTE: On initial start-up, the heater may cause an odor due to the manufacturing
process. It typically goes away within several hours.
More frequently asked questions on our website here:
Reduce-Reuse-Recycle
This product is made primarily of recyclable materials. You can reduce your carbon footprint by recycling
this product at the end of its useful life. Contact your local recycling support center for further recycling
instructions.

MAINTAINING YOUR HEATER

Clean heater at least every 6 months or as required. Do not lubricate motor.
1. Turn off power at the main disconnect panel.
2. Wait for the element to cool.
3. Remove thermostat knob (if any) and grill.
4. Wash grill with hot soapy water and dry.
5. Blow air through the heating element with a
hair dryer or shop vacuum on blow cycle.
Any service other than cleaning should be performed by an authorized
service representative.
Model CS
High-temperature safety shutoff
Heating Element
High-temperature safety shutoff
Model CS
Model CS
High-temperature safety shutoff
High-temperature safety shutoff
Motor
Heater with
Heating Element
Heating Element
built-in thermostat
High-temperature safety shutoff
High-temperature safety shutoff
Motor
Motor
Heater with
built-in thermostat
Heater with
built-in thermostat
Model CS
High-temperature safety shutoff
Heating Element
WITH SINGLE-POLE WALL
THERMOSTAT ALTERNATE
To/From Heater
WITH SINGLE-POLE WALL
THERMOSTAT ALTERNATE
WITH SINGLE-POLE WALL
THERMOSTAT ALTERNATE
To/From Heater
To/From Heater
INTERNAL HEATER WIRING DIAGRAMS
WITH DOUBLE-POLE WALL
THERMOSTAT ALTERNATE
To/From Heater
WITH DOUBLE-POLE WALL
WITH DOUBLE-POLE WALL
THERMOSTAT ALTERNATE
THERMOSTAT ALTERNATE
To/From Heater
To/From Heater
WITH SINGLE-POLE WALL
THERMOSTAT ALTERNATE
To/From Heater
WITH DOUBLE-POLE WALL
THERMOSTAT ALTERNATE
7
3. Do not tamper with the high-
temperature safety shutoff.
cadetheat.com/support/FAQ
6. Clean the fan with a vacuum cleaner.
7. Replace cover and thermostat knob (if any).
8. Turn power back on at the main disconnect
panel.
Model CST
High-temperature safety shutoff
Heating Element
High-temperature safety shutoff
Model CST
High-temperature safety shutoff
Motor
Heating Element
built-in thermostat
High-temperature safety shutoff
Motor
built-in thermostat
Model CST
High-temperature safety shutoff
Heating Element
High-temperature safety shutoff
Heating Element
High-temperature safety shutoff
Model CST
High-temperature safety shutoff
High-temperature safety shutoff
Motor
Heating Element
Heating Element
Heater with
High-temperature safety shutoff High-temperature safety shutoff
Motor
Motor
Heater with
Heater with
built-in thermostat
High-temperature safety shutoff
Heating Element
H
H
Motor
