Cadet COM-PAK Owner's Manual page 5

INSTALLATION INSTRUCTIONS
INSERT THE HEATER ASSEMBLY IN THE WALL CAN
STEP 4
Wire connections
Your heater has two connection wires on the
back. Your supply wire has two connection wires
and a supply ground wire.

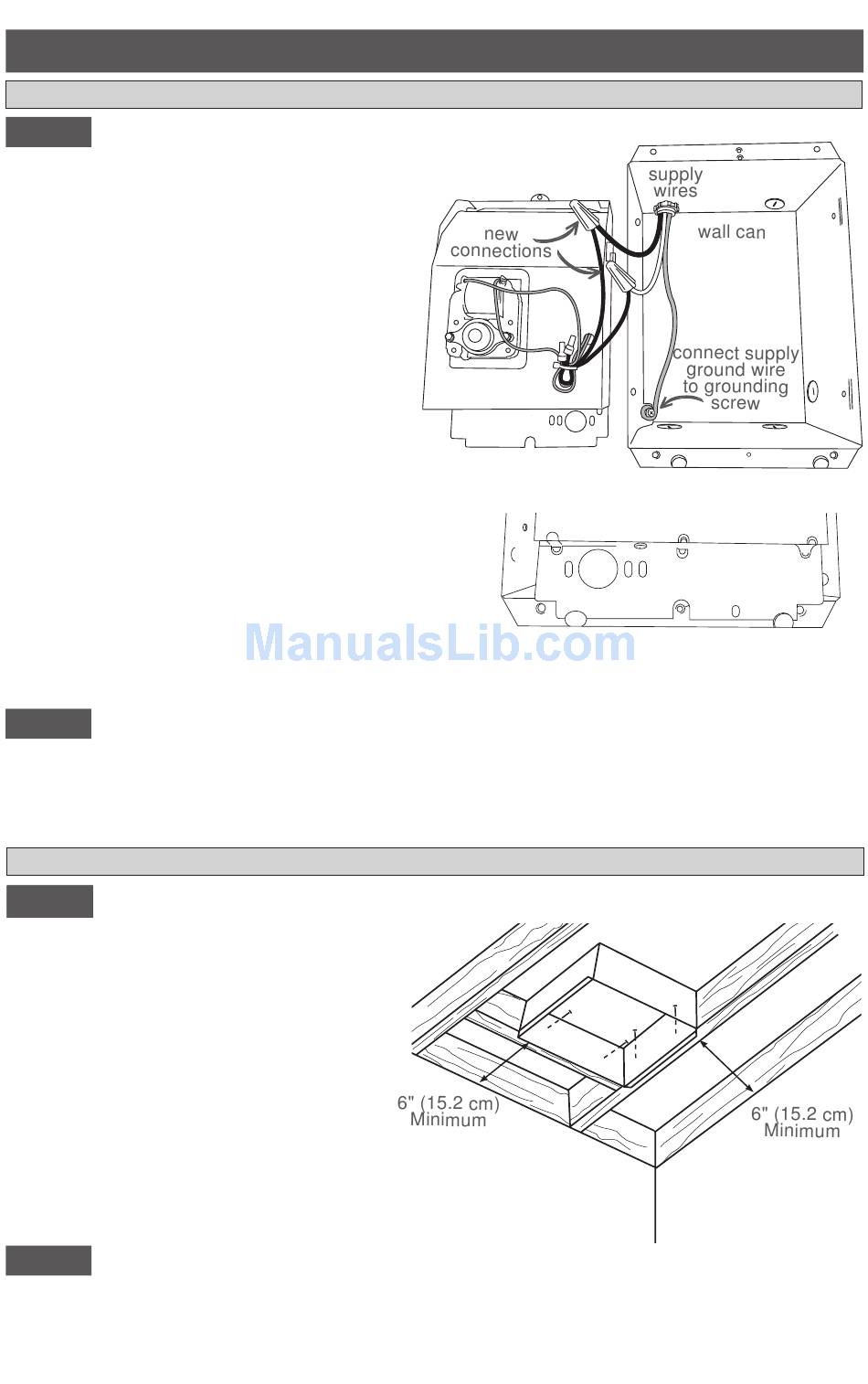

1. Connect supply ground wire to grounding
screw in wall can (See Figure 4).
2. Connect one supply wire to one heater wire
with a wire connector (not included):
A. for 240 volts, it doesn't matter which heater
wire;
B. for 120 volts, connect the neutral (white)
supply wire to the white heater wire.
3. Connect the remaining supply wire to the
remaining heater wire with a wire connector
(not included) (See Figure 4).
4. Turn the heater back around and insert the
bottom edge of the heater assembly into the
D-shaped tabs at the bottom of the wall can
(See Figure 5).
5. Push all wires back into the bottom of the wall
can. Make sure connections are tight and that
none of the wires are caught between the
motor and the wall can.
6. Attach the heater assembly at top of the wall
can with screw provided.
STEP 5
Install Grill
Attach grill with screws provided. If you have a built-in thermostat, slide thermo stat knob onto shaft. If
you have a model without a thermostat, snap in the grill plug provided.
Turn power on at the main disconnect panel.
Proceed to OPERATING INSTRUCTIONS.
STEP 1 STEP 1
STEP 1
Mount The Wall Can
Important:
1. Only for Model CS up to 1,500 Watts –
MAXIMUM.
2. Do not mount the heater in low
density fiberboard or false ceilings.
3. Models with a built-in thermostat are
not recommended.
Fasten the wall can to ceiling rafters on any
two sides (See Figure 6) with a minimum of
4 screws (not included). You may need to
install an additional rafter perpendicular to
your ceiling rafters. The front edge of the wall
can must extend beyond the front edge of the
ceiling rafter(s) to match the drywall depth.
STEP 2
Route Supply Wires
Important: Supply connections must use wires suitable for at least 167˚F (75˚C) in the ceiling.
Route the electrical supply wire from the circuit breaker to the wall thermostat, and then to the wall
can. Remove a knockout from the wall can and attach the supply wire with a cable clamp connector
(not included) leaving a minimum of 6 inches wire lead (See Figure 3).
Continue to STEPS 4 and 5 above.
CEILING MOUNT (MODEL CS ONLY)
5
back of heater
assembly
D-tab
6" Minimum
(15.2cm)
Figure 4
front of heater
assembly
D-tab
Figure 5
View from front
6" Minimum
(15.2 cm)
Figure 6
(Model CS only)
