Benefits You Can Depend On
• Dual safety features
Primary: "power reset" thermal switch
Secondary: over temperature thermal fuse
• Heating element warms your room with easy
operation—simply flip a switch
• Common sense components designed with
you in mind
No sharp edges
Corrosion resistant
Easy to install wall can
• Convenient ON/OFF switch control
• Retrofits into model RBC wall can, or use with
model RBFC wall can sold separately
• Your Cadet heater has been thoroughly tested
and is guaranteed with a limited 2 year
warranty
Grill
Grill Frame
Grill Front
¼"
1"
.6 cm
2.5 cm
30.5 cm
Wall Can Bottom
10
25.7 cm
1½"
3.8 cm
2¾"
7 cm
cadetheat.com
Wall Can Side
7
19"
17
/
"
8
48.3 cm
45.4 cm
12"
10.2 cm
1
/
"
8
SAVE THESE INSTRUCTIONS
Tel: 855.CADET.US
Information is also available on our website:
http://cadetheat.com/products/wall-heaters/RBF
Line Voltage
120
Rating Label
17"
43.2 cm
TOOLS REQUIRED:
4"
• Phillips Screwdriver
• Straight Screwdriver
• Wire Strippers
PO Box 1675 Vancouver, WA

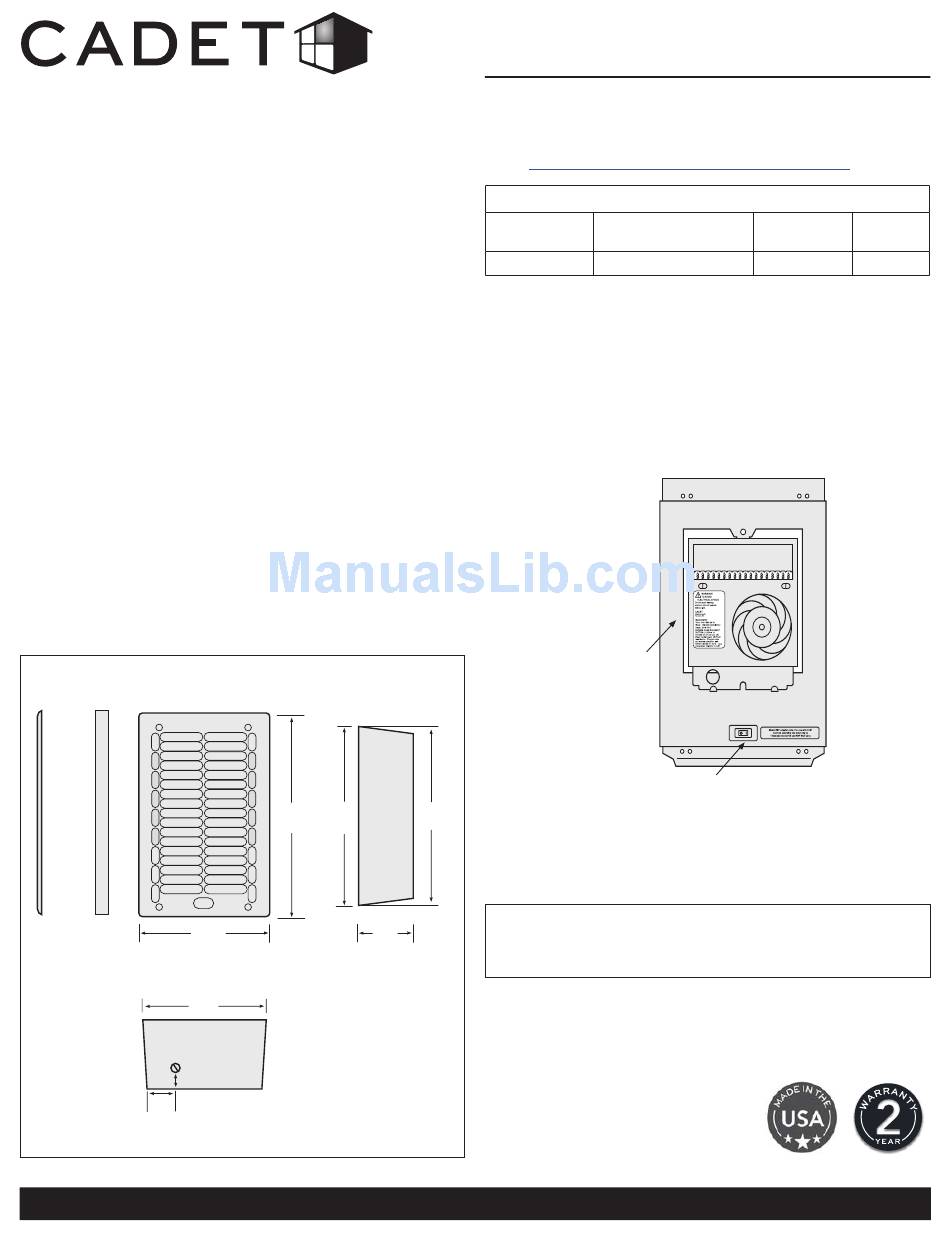

RBF Heater
Owner's Guide
RBF Model
Model with On/Off
Switch
RBF101

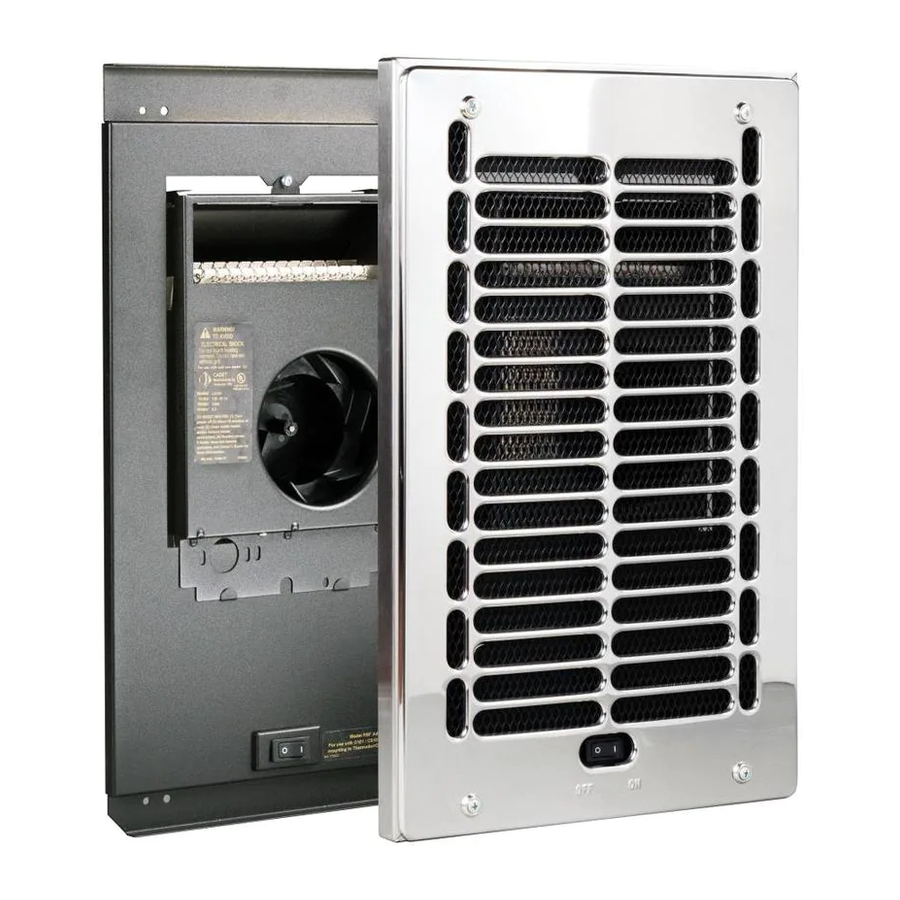

RBF with Built-in On/Off Switch
*Wall Thermostat Not Required
Built-in On/Off Switch
• Utility Knife
• (2) 1½" Wood Screws
• (2) Insulated Wire Connectors
• (1) Strain Relief Connector
98668-1675
Watts
Amps
1000
8.3
tested to UL standards
Page 1
Advertisement
Table of Contents
Related Manuals for Cadet RBF101
Summary of Contents for Cadet RBF101
- Page 1 • Convenient ON/OFF switch control • Retrofits into model RBC wall can, or use with model RBFC wall can sold separately • Your Cadet heater has been thoroughly tested and is guaranteed with a limited 2 year warranty Rating Label...
-
Page 2: Important Instructions
13. Save these instructions. panel. Wiring Diagram Manual power reset high temperature limit Heating Element Over-Temperature Fuse Motor Black White Double pole On/Off switch SAVE THESE INSTRUCTIONS cadetheat.com Tel: 855.CADET.US PO Box 1675 Vancouver, WA 98668-1675 Page 2... -
Page 3: Installation Instructions
4½ inches from the floor (See Figure 3). However, Cadet recommends 12 inches from adjacent surfaces and floor Cadet recommends 12 inches from adjacent surfaces and floor for for longer and cleaner performance. Heaters must be spaced at longer and cleaner performance. - Page 4 INSTALLATION INSTRUCTIONS (continued) _________ _________ Retrofitting RBF101 as Replacement for RB Heaters Remove Existing Heater STEP 1 STEP 1 STEP 1 A. WARNING! Before removing grill, turn the electrical power off at the main disconnect panel (circuit breaker or fuse box). Lock or tag the main disconnect panel door to prevent someone from accidentally turning the power on while you are working on the heater.
-
Page 5: Warranty
4. If the date of manufacture of the product cannot be determined; ranty claims made after the warranty period has expired will be denied. 5. If the product is damaged during shipping through no fault of Cadet. Products returned without authorization will be refused. -
Page 6: Maintaining Your Heater
5. The entire heater, or any of its components may be checked for continuity to de- 5. Defective rocker switch control. termine the cause of any problems. Repair or replace the heater or rocker switch. ©2016 Cadet Printed in USA Rev 03/16 #720196... - Page 7 • Calza en la cámara de pared del modelo RBC o bien puede usarlo con la cámara de pared del RBFC se vende por separado • Su calentador Cadet ha sido completamente probado y cuenta con una garantía limitada de 2 años Etiqueta calificación...
-
Page 8: Instrucciones Importantes
Diagramas de cableado Reglaje manual limitador eléctrico de alta temperatura Elemento calentador Fusible de sobretemperatura Motor Negro Blanco Interruptor de encendido/apagado CONSERVE ESTAS INSTRUCCIONES cadetheat.com Tel: 855.CADET.US PO Box 1675 Vancouver, WA 98668-1675 Página 8... -
Page 9: Instrucciones Para La Instalación
4½ pulgadas desde el piso (vea la superficies adyacentes y 4½ pulgadas desde el piso (vea la figura 3). Sin embargo, Cadet recomienda 12 pulgadas desde las figura 3). Sin embargo, Cadet recomienda 12 pulgadas desde las superficies adyacentes y el piso para lograr un rendimiento más... - Page 10 INSTRUCCIONES PARA LA INSTALACIÓN (continuación) _______ _______ Calce del RBF101 como reemplazo para los calentadores RB Retire el calentador actual PASO 1 A. ¡ADVERTENCIA! Antes de quitar la rejilla, desconecte la electricidad en el panel de desconexión principal (caja de cortacircuitos o fusibles) y trabe o coloque un cartel en la puerta del panel de desconexión principal para evitar que alguien conecte accidentalmente...
- Page 11 RBF que se determine esté averiado en un plazo de dos años a partir de la fecha de compra. que usted tenga otros derechos que varíen de un estado a otro. Cadet no asume ni autoriza a nadie que lo haga en su nombre, ninguna otra Estas garantías no son pertinentes para:...
- Page 12 5. Se debe revisar la continuidad de todo el calentador, o bien de sus componen- 5. Control de interruptor bascu- tes a fin de determinar la causa de cualquier problema. Repare o reemplace el lante averiado. calentador o control de interruptor basculante. ©2016 Cadet Impreso en EE UU Rev 03/16 #720196 Página 12...
