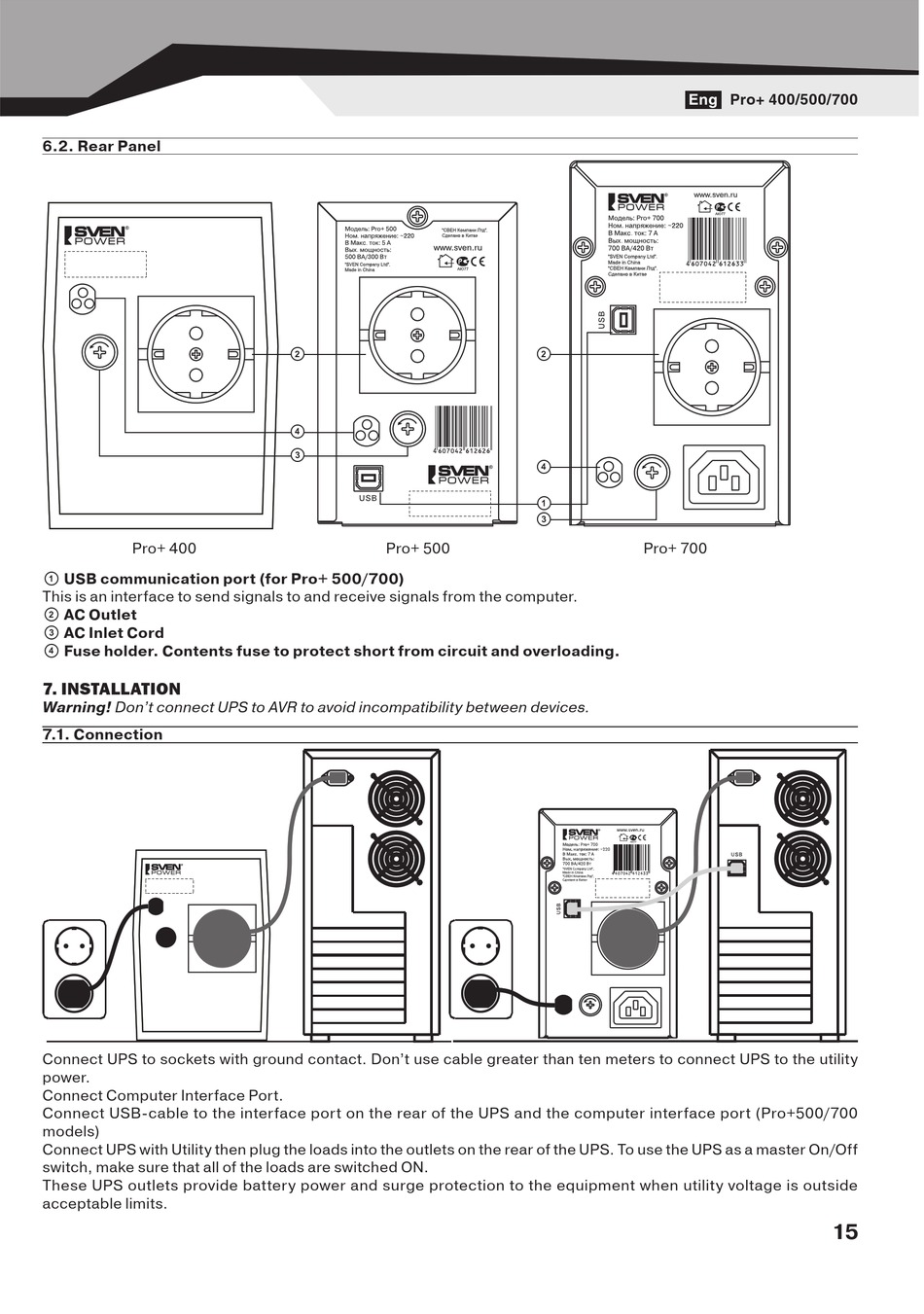

6.. Rear Panel

Pro+ 400
a USB communication port (for Pro+ 500/700)
This is an interface to send signals to and receive signals from the computer.
b AC Outlet
c AC Inlet Cord
d Fuse holder. Contents fuse to protect short from circuit and overloading.

7. InsTallaTIOn

Warning! Don't connect UPS to AVR to avoid incompatibility between devices.
7.1. Connection
Connect UPS to sockets with ground contact. Don't use cable greater than ten meters to connect UPS to the utility
power.
Connect Computer Interface Port.
Connect USB-cable to the interface port on the rear of the UPS and the computer interface port (Pro+500/700
models)
Connect UPS with Utility then plug the loads into the outlets on the rear of the UPS. To use the UPS as a master On/Off
switch, make sure that all of the loads are switched ON.
These UPS outlets provide battery power and surge protection to the equipment when utility voltage is outside
acceptable limits.
b
d
c
Pro+ 500
Eng
b
d
a
c
Pro+ 700
Pro+ 400/500/700
