Summary of Contents for Sven SMART 1000

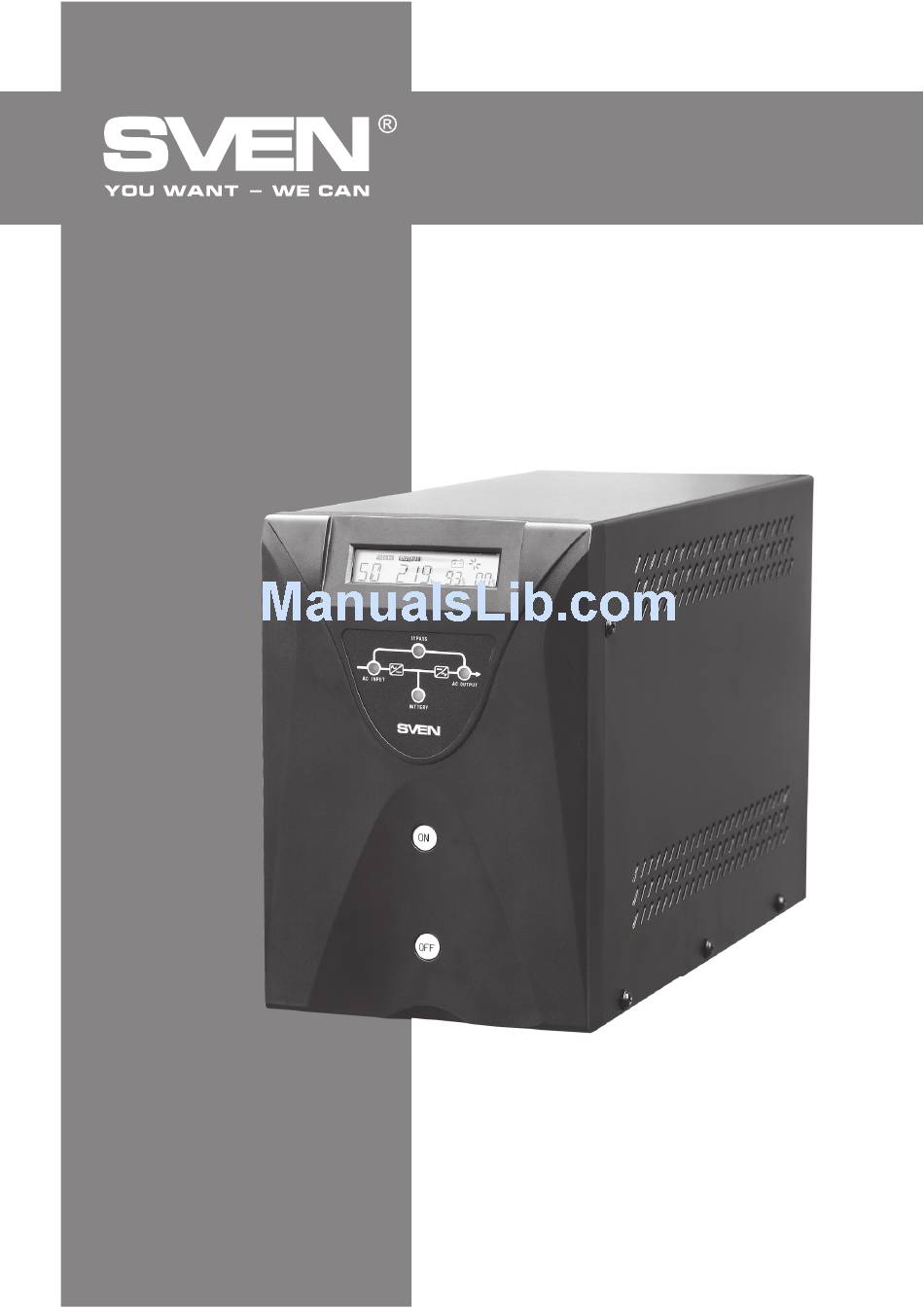

- Page 1 Uninterruptible Power Supply OPERATION MANUAL SMART 1000 SMART 1500 www.sven.fi...
-
Page 2: Table Of Contents
Please read the following instructions carefully before connecting, operating or adjusting this product. Besides, please keep this manual in a safe place for future reference. COPYRIGHT © 2012. SVEN Company Ltd. Version 1.0 (V 1.0). This manual and informa- tion contained in it are copyrighted. All rights reserved. TRADEMARKS All trademarks are the property of their legal holders. -
Page 3: Eng
Uninterruptible Power Supply 1. DESCRIPTION Smart 1000/1500 line-interactive UPS is a perfect device for protection of computers and peripherals, such as monitors, modems, etc. In case of failure in the electric mains, the UPS continues supplying power to your equipment using energy of its storage batteries. The built-in automatic voltage regulator allows to provide correct power supply of the load in case of over- or undervoltage without entering the battery operation mode. -
Page 4: Operation And Storage Conditions
SMART 1000 Operation Manual SMART 1500 • USB and RJ-11/RJ-45 communication ports • Cold Start function in off-line mode • Automatic electricity delivery at power supply renewal BYPASS • Short circuit and overload protection AC INPUT AC OUTPUT • Modem/telephone circuit protection BATTERY 5. -
Page 5: Connection And Operation
Uninterruptible Power Supply 7. CONNECTION AND OPERATION Connection of Cables • Place the UPS into a suitable well-ventilated position (there should be at least 150 mm free space around the fan). Monitor FUSE OUTPUT INPUT ~220 V/50 Hz Fig. 3. UPS connection diagram •... - Page 6 SMART 1000 Operation Manual SMART 1500 • When the power supply is renewed, the UPS will automatically turn on and will charge its batteries. UPS Switch-off • Press the OFF button g on the front panel and hold it down for three seconds (daily switch-off), and the UPS will enter bypass mode (if it’s plugged in), and Bypass mode LED b will light up.
- Page 7 Uninterruptible Power Supply Overloads and Short Circuit at the Output • If the total input power of your equipment is more than the UPS load capacity or there is short circuit, the fuse j on the rear panel can activate, and the UPS will enter the off-line mode using battery power until the batteries are completely discharged.
-
Page 8: Troubleshooting
SMART 1000 Operation Manual SMART 1500 8. TROUBLESHOOTING Problem Cause Solution 1. Power switch m is off. 1. Turn on the switch m. The UPS is plugged in, input voltage LED c is 2. The fuse is in disrepair. 2. Replace the fuse. -
Page 9: Technical Specifications
Uninterruptible Power Supply 9. TECHNICAL SPECIFICATIONS Parameters Smart 1000 Smart 1500 Apparent power, VA 1000 1500 Active power, W Controlled variables input/output voltage, frequency, battery charge level, load condition Protection from short circuit and overload; modem/telephone line protection Input socket... - Page 10 Виробник для України: GREENWAVE INDUSTRIAL GROUP LTD, Unit 2509, 25/F, 113 Argyle Street, Mongkok, Kowloon, Hong Kong. Produced under the control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie, KOTKA, Finland, 48310. Made in China. SMART 1000 ® Registered Trademark of Oy SVEN SMART 1500 Scandinavia Ltd.
