FASCIA
FASCIA
SECURING
SCREW (3)
CONTROL
HOUSING
SECURING
SCREW (2)
HINGE PIN
TRANSFORMER
MULTI-PIN
CONNECTORS
USER CONTROL
BOARD
WIRING AS
DIAGRAM 4.12
B
Y Y
Y1 Y2 N L
*
Y Y B BR
221474C
Supplied By www.heating spares.co Tel. 0161 620 6677
4 Replacement of Parts
TEMPERATURE
CONTROL KNOB
CONTROL
HOUSING
COVER
SECURING
SCREW
CONTROL
HOUSING
COVER
SUPPORT POSTS

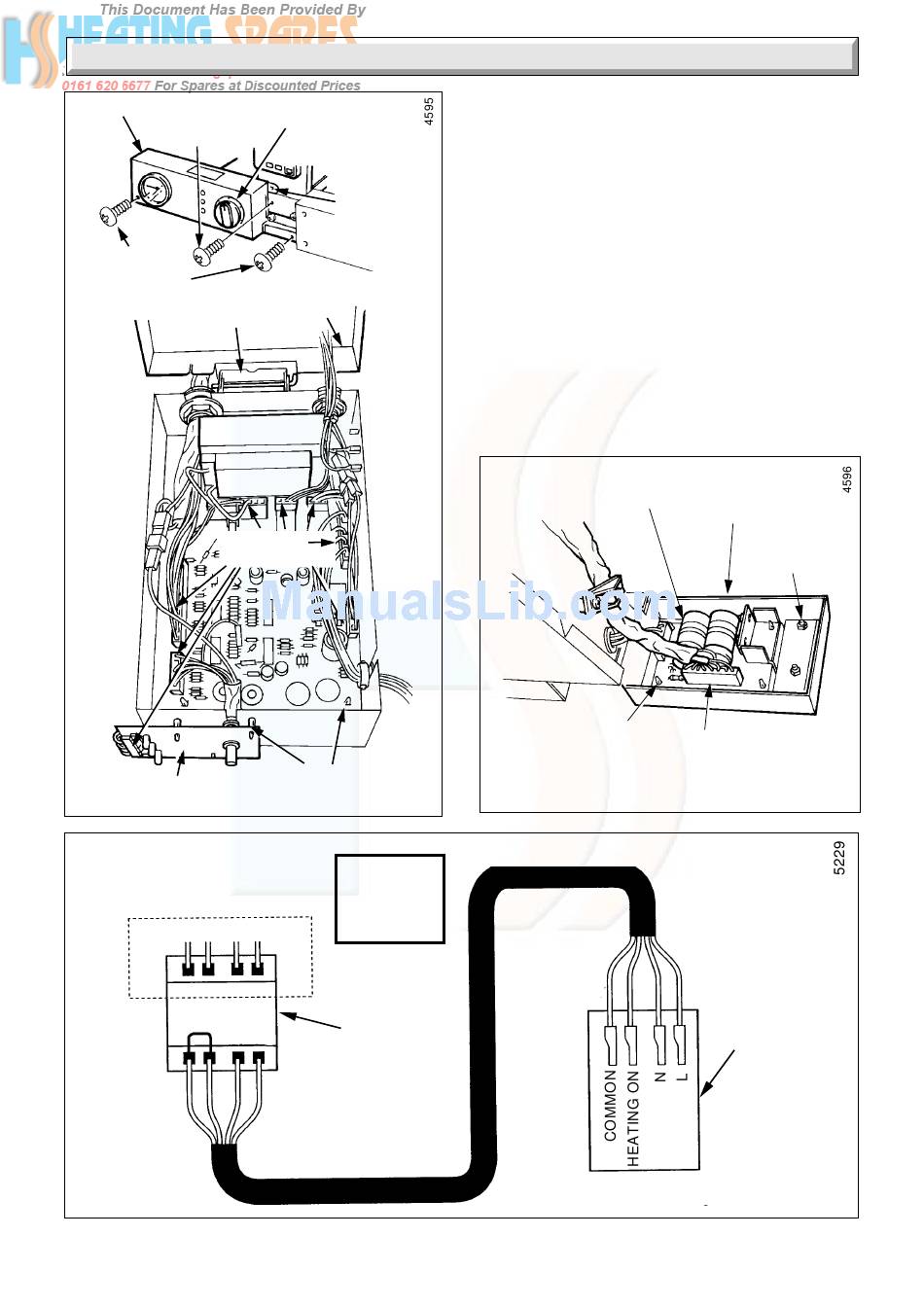

Diagram 4.8
*
Note:
Remove
'Yellow Link'
before fitting
Clock/Timer
BR
4 WAY
TERMINAL
BLOCK
4.15 Transformer
Note. Timer/clock may be removed to improve access, see Section
4.32 or the control housing bottom half can be removed.
Remove the control housing cover screw, see diagram 4.8.
Remove control housing assembly, see diagram 4.1.
Remove the control housing cover and disconnect the electrical
connectors from the transformer, see diagram 4.8.
Remove the transformer securing screws (2 off) from beneath the
control housing, remove the transformer and insulation.
To connect the transformer cables correctly, refer to diagram 4.11.
FAN DRIVER
BOARD
SUPPORT
POSTS
Y Y
40
FAN DRIVER
CONTROL
HOUSING
SECURING
SCREW NUT
MULTI-PIN
CONNECTORS
Diagram 4.9
B BR
CLOCK /
TIMER
Diagram 4.10
