Introduction

Please read these instructions and follow them carefully for the safe
and economical use of your Combination boiler.
This boiler must have been installed by a competent person in
accordance with the rules in force in the countries of destination.
Once the pilot has been lit and the controls set, the boiler is
automatic in operation.
The Swift-flow combination boiler is able to provide room heating as
part of a central heating system and domestic hot water direct from
the cold water supply, without the need for secondary storage.

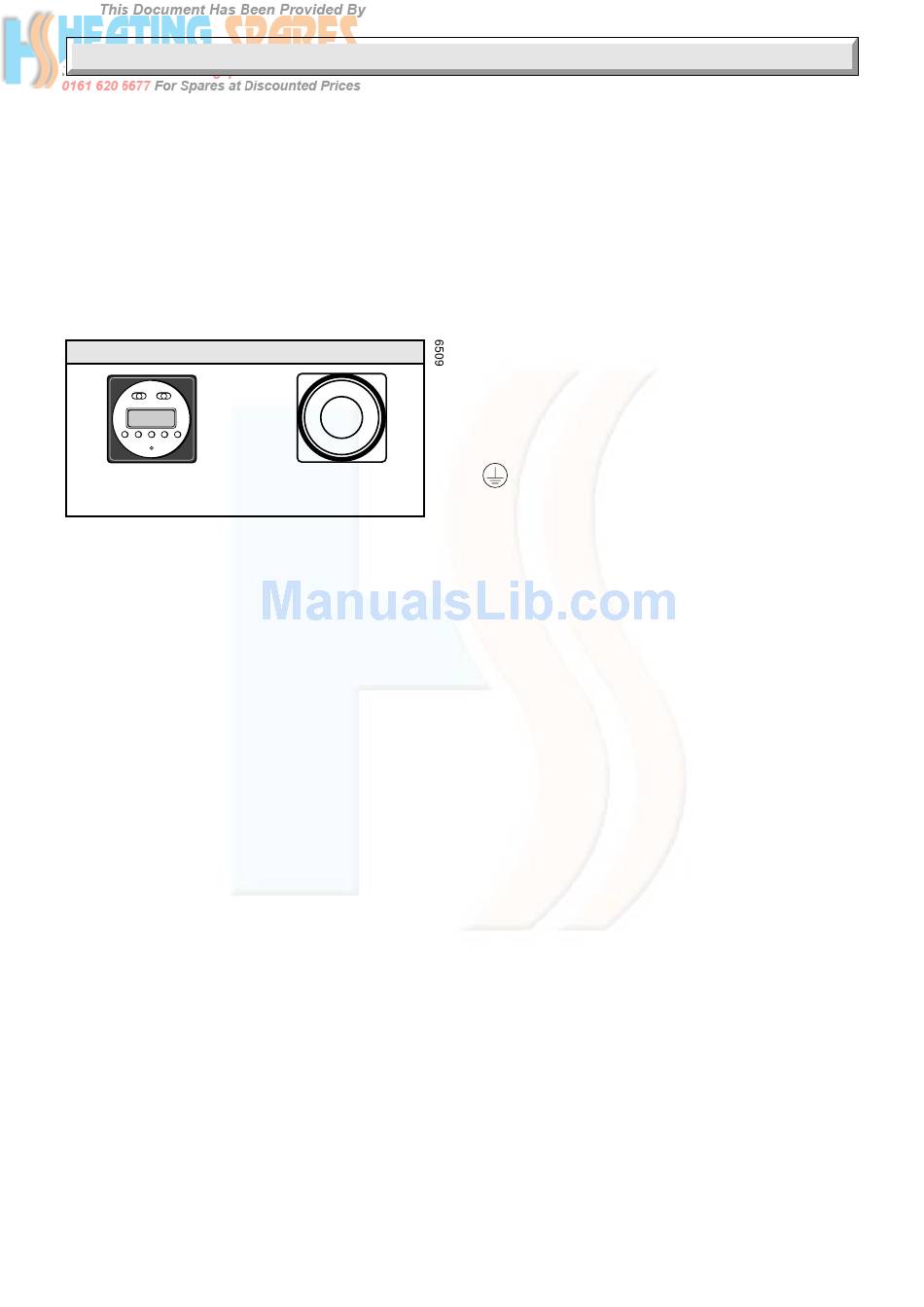

The boiler can be fitted with one of two makes of clock, which look
like this:-
Clock / Timer
Digital
timer
IMPORTANT NOTICE:
This boiler is for use only on G20 gas.
Gas Leak or Fault
If a gas leak or fault exists or is suspected, turn the boiler off and
consult your local gas company or your local installation/servicing
company.
Domestic Hot Water Temperature
NOTE. The mains water temperature in the winter is lower than in
the summer.
The nominal temperature setting for the Domestic Hot Water is
0 0
60 C (140 F) at a flow rate of 5litre per minute (1.1gal/min)
The specific water rate is 16.8litre per minute based on a 30
temperature rise.
The water temperature can be increased or reduced by adjusting
the flow rate at the hot water draw off tap.
Boilers Installed in Compartments
If the boiler has been fitted into a compartment or cupboard, do not
obstruct the compartment air supply vents.
Do not use the compartment for storage.
Electrical Supply
WARNING. The boiler must be earthed.
The boiler must be connected to a 230V~50Hz permanent supply.
Connection of the whole electrical system of the boiler and any
heating system controls to the electrical supply, must be through
one common isolator.
Isolation should preferably be by a double pole switched fused spur
box. The fused spur box should be readily accessible and preferably
Supplied By www.heating spares.co Tel. 0161 620 6677
Instructions for Use
Electro /
mechanical
clock / timer
0
C
3
adjacent to the appliance.
It should be identified as to its use.
A fused three pin plug and shuttered socket outlet may be used
instead of the fused spur box.
PVC flexible cable must be used within the boiler casing to
connect to the boiler.
The colours of three core flexible cable are,
Brown - Live, Blue - Neutral,
Green and Yellow - Earth.
As the markings on your plug may not correspond with these
colours, continue as follows:
The cable coloured blue must be connected to the plug terminal
marked "N" or "Black".
The cable coloured brown must be connected to the plug
terminal marked "L" or "Red".
The cable coloured green and yellow must be connected to the
plug terminal marked "E" or "Green" or the
.
Electrical Supply Failure
The boiler will not work without an electrical supply.
Normal operation of the boiler should resume when the electrical
supply is restored.
Note. The boiler safety cutoff may have operated, please refer
to the following section to reset.
Reset any external controls, to resume normal operation of the
central heating.
The digital timer, has a lithium battery back up and will not need
resetting.
Boiler Safety Cutoff Reset Button
The boiler is fitted with a safety cutoff device to prevent damage
through overheating.
Should the main burner go out during a demand the red neon
on the Reset Button will light.
In certain circumstances the red neon light may not come on,
due to no system demand. It is suggested that a hot water draw
off tap be opened to create a demand, the neon should then
come on.
Allow the boiler and system to cool down waiting at least a
minimum of four minutes before pressing the Reset button.
If the problem persists, turn the boiler off and consult the local
gas company or your installation/servicing company.
earth symbol
221474C
