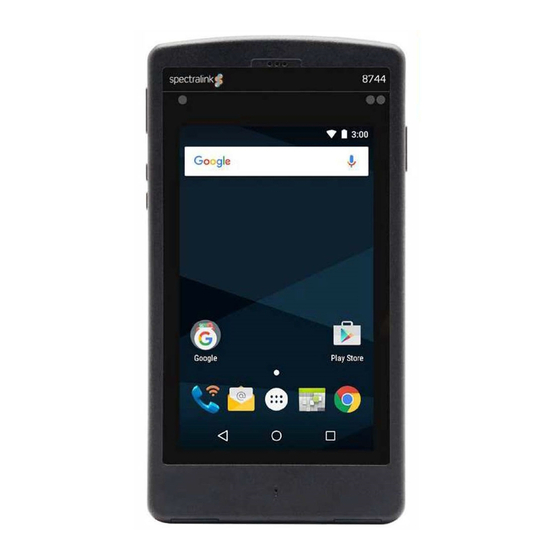

Spectralink PIVOT 8744 Smartphone
Barcode Administration Guide
721-0044-000 Rev: B
February 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIVOT 8744 and is the answer not in the manual?

Questions and answers

Related Manuals for SpectraLink PIVOT 8744

Summary of Contents for SpectraLink PIVOT 8744

  • Page 1 Spectralink PIVOT 8744 Smartphone Barcode Administration Guide 721-0044-000 Rev: B February 2017...
  • Page 2 The drawings and specifications contained herein are the property of Spectralink and shall be neither reproduced in whole or in part without the prior written approval of Spectralink, nor be implied to grant any license to make, use, or sell equipment manufactured in accordance herewith.

  • Page 3: Table Of Contents

    Contents Introduction ..............5 Product Support ....................... 5 Spectralink References ....................5 Specific Documents ......................5 Barcode Reference ......................6 Conventions Used In This Document ................7 Icons ..........................7 Typography ........................7 Chapter 1: Understanding Barcode Technology ......9 1D vs.
  • Page 4 Spectralink 8744 Smartphones Barcode Administration Guide Matrix 2 of 5 ........................16 Micro PDF417 ........................16 Micro QR ........................16 MSI Plessy ........................17 NEC 2 of 5 ........................17 PDF 417 .........................17 Plessey ..........................17 QR..........................17 Straight 2 of 5 .........................18 Telepen ..........................18 UPC-A ..........................19 UPC-E ..........................19...

  • Page 5: Introduction

    Information about how to use the PIVOT:SC smartphone as a barcode scanner is contained in the PIVOT by Spectralink User Guide. Be aware that this is a living document. Barcode technology changes rapidly and this document makes every effort to keep up. If you have questions, please contact your Spectralink service provider. Product Support Spectralink wants you to have a successful installation.

  • Page 6: Barcode Reference

    PIVOT by Spectralink Web Developer’s Guide The Web Developer’s Guide provides Web application creators with information for developing and deploying Web applications that interface with Spectralink smartphones. For information on IP PBX and softswitch vendors, see PIVOT by Spectralink Call Server Interoperability Guide. Barcode Reference The Bar Code Book: A Comprehensive Guide to Reading, Printing, Specifying, Evaluating, and Using Bar Code and Other Machine-Readable Symbols by Roger C.

  • Page 7: Conventions Used In This Document

    Italics Used to emphasize text, to show example values or inputs, and to show titles of reference documents available from the Spectralink Support Web site and other reference sites. Underlined blue Used for URL links to external Web pages or documents. If you click on text in this style, you will be linked to an external document or Web page.
  • Page 8 Spectralink 8744 Smartphones Barcode Administration Guide Convention Description Bright orange text Used for cross references to other sections within this document. If you click on text in this style, you will be taken to another part of this document. Fixed-width-font Used for code fragments and parameter names.

  • Page 9: Chapter 1: Understanding Barcode Technology

    1D vs. 2D Formats PIVOT:SC and 1D Barcode Patterns Barcode patterns can store a variety of data. Currently, your Spectralink PIVOT:SC smartphone supports a wide range of one-dimensional (1D) and stacked ID barcode types, including the Code 128 barcode symbology, which can contain up to 70 numerals and/or characters.
  • Page 10 Spectralink 8744 Smartphones Barcode Administration Guide 2D examples 721-0044-000_B.docx February 2017...

  • Page 11: Chapter 2: Barcode Applications

    PIVOT:SC smartphone via QBC. Information about how to use the PIVOT:SC smartphone as a barcode scanner is contained in the PIVOT by Spectralink User Guide. Using On-board Applications You can enter information into a web application running on the web browser on the smartphone.

  • Page 12: Chapter 3: Barcode Symbologies

    Chapter 3: Barcode Symbologies Barcode parameters must be set correctly so the information is decoded as needed. For QBC, the barcode symbology configured in the Admin menu must match the parameters configured in the QBC Application on the PC. Barcode parameter groups are listed here in alphabetical order. All higher level symbologies are enabled by default.

  • Page 13: Code 11

    Spectralink 8744 Smartphones Barcode Administration Guide Code 11 Code 32 Enable/Disable Code 39 Code 49 Enable/Disable Code 93 Enable/Disable Code 128 Enable/Disable 721-0044-000_B.docx February 2017...

  • Page 14: Data Matrix

    Spectralink 8744 Smartphones Barcode Administration Guide Data Matrix EAN 13 Enable/Disable EAN 8 Grid Matrix 721-0044-000_B.docx February 2017...

  • Page 15: Gs1 Databar 14

    Spectralink 8744 Smartphones Barcode Administration Guide GS1 Databar 14 Admin Tip: GS1 Composite A composite code is comprised of a 1D and a 2D code. In order to properly decode a composite code these two actions need to be taken: Enable Composite type of choice: CC-A, CC-B OR CC-C in the GS1 DataBar 14 menu.

  • Page 16: Iata 2 Of 5

    Spectralink 8744 Smartphones Barcode Administration Guide IATA 2 of 5 Interleaved 2 of 5 Matrix 2 of 5 Micro PDF417 Enable/Disable Micro QR Enable/Disable 721-0044-000_B.docx February 2017...

  • Page 17: Msi Plessy

    Spectralink 8744 Smartphones Barcode Administration Guide MSI Plessy NEC 2 of 5 PDF 417 Enable/Disable Plessey Enable/Disable Caution: Model 1 Decoding error correction Model 1 Decoding Negative and Model 1 Decoding Negative Mirrored barcodes are not read in the current implementation.

  • Page 18: Straight 2 Of 5

    In Spectralink tests of UPC symbologies, the PIVOT 8744 scanner is very fast and may pick up just the base code unless the supplemental code is required.

  • Page 19: Upc-A

    Spectralink 8744 Smartphones Barcode Administration Guide UPC-A UPC-E 721-0044-000_B.docx February 2017...

  • Page 20: Appendix A: Open Source Information

    A complete list of all open source software included in the Spectralink PIVOT smartphone, as well as related license and copyright information, is available at http://support.spectralink.com. You may also obtain the same information by contacting Spectralink by regular mail or email at the addresses listed at the bottom of this notice.
