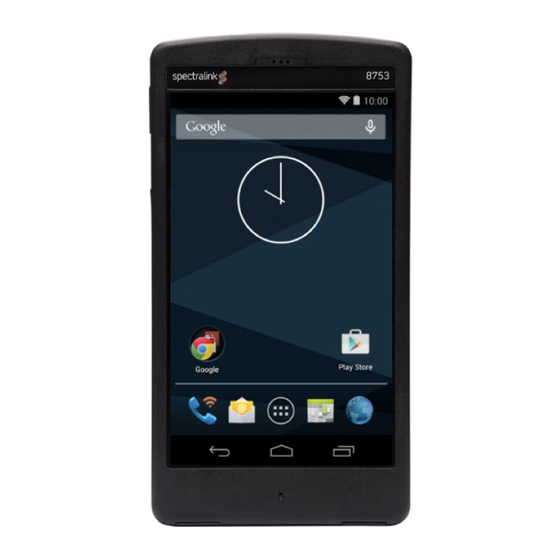

  • Page 1 Spectralink PIVOT Smartphone PIVOT 8753 Barcode Administration Guide 720-0046-000 Rev: A February 2017...
  • Page 2 The drawings and specifications contained herein are the property of Spectralink and shall be neither reproduced in whole or in part without the prior written approval of Spectralink, nor be implied to grant any license to make, use, or sell equipment manufactured in accordance herewith.

  • Page 3: Table Of Contents

    Typography ........................7 Chapter 1: Understanding Barcode Technology ......9 1D vs. 2D Formats......................9 PIVOT 8753 and 1D Barcode Patterns ................9 PIVOT 8753 and 2D Barcode Patterns ................9 Chapter 2: Barcode Applications .......... 11 Using On-board Applications..................11 Using the Quick Barcode Connector (QBC) ..............11...

  • Page 4: A.docx February 2017

    PIVOT 8753 Smartphone Barcode Administration Guide Telepen ..........................18 Appendix A: Open Source Information ........19 OFFER for Source for GPL and LGPL Software ............19 Contact Information for Requesting Source Code ............19 720-0046-000_A.docx February 2017...

  • Page 5: Introduction

    Be aware that this is a living document. Barcode technology changes rapidly and this document makes every effort to keep up. If you have questions, please contact your Spectralink service provider. Product Support Spectralink wants you to have a successful installation.
  • Page 6 PIVOT by Spectralink Web Developer’s Guide The Web Developer’s Guide provides Web application creators with information for developing and deploying Web applications that interface with Spectralink smartphones. For information on IP PBX and softswitch vendors, see PIVOT by Spectralink Call Server Interoperability Guide. 720-0046-000_A.docx...

  • Page 7: Barcode Reference

    PIVOT 8753 Smartphone Barcode Administration Guide Barcode Reference The Bar Code Book: A Comprehensive Guide to Reading, Printing, Specifying, Evaluating, and Using Bar Code and Other Machine-Readable Symbols by Roger C. Palmer, Fifth Edition The book describes the many different forms of 1-D and 2-D bar code symbols, explains how they work, compares their attributes, and provides detailed reference information.
  • Page 8 Description Italics Used to emphasize text, to show example values or inputs, and to show titles of reference documents available from the Spectralink Support Web site and other reference sites. Underlined blue Used for URL links to external Web pages or documents. If you click on text in this style, you will be linked to an external document or Web page.

  • Page 9: Chapter 1: Understanding Barcode Technology

    1D barcode symbologies. PIVOT 8753 can decode both 1D and 2D barcode label formats. PIVOT 8753 can also decode composite barcodes that contain both a 1D and a 2D barcode component, such as symbologies often found on drug packaging.
  • Page 10 PIVOT 8753 Smartphone Barcode Administration Guide 2D examples 720-0046-000_A.docx February 2017...

  • Page 11: Chapter 2: Barcode Applications

     in the web browser on the smartphone  on a computer that is linked to a PIVOT 8753 smartphone via QBC. Information about how to use the PIVOT 8753 smartphone as a barcode scanner is contained in the PIVOT by Spectralink User Guide.
  • Page 12 PIVOT 8753 Smartphone Barcode Administration Guide Symbology EAN / UPC UPC-A UPC-E EAN-8 EAN-13 GS1 Composite GS1 DataBar Omni-directional Limited Expanded Interleaved 2 of 5 Matrix 2 of 5 Micro PDF 417 MSI Code PDF 417 Plessey Code QR Code...

  • Page 13: Chapter 3: Barcode Parameters

    Chapter 3: Barcode Parameters Symbologies use the settings as described below. Symbology Parameters Aztec  Aztec is a two-dimensional matrix style symbology which can encode around 3000 character using entire 256-byte ASCII character sets.  The Aztec structured append header is not used. ECI is used. ...

  • Page 14: Code 93

    PIVOT 8753 Smartphone Barcode Administration Guide  Code 39 start/stop transmission is transmitted. Code 93  Code 93 is an alphanumeric full ASCII symbology using combinations of 2 characters. Unlike Code 39, Code 93 is a continuous symbology which produces denser code. Code 93i encompasses and extends Code 93: alphanumeric, full and extended ASCII, and all Unicode characters.

  • Page 15: Ean / Upc

    PIVOT 8753 Smartphone Barcode Administration Guide EAN / UPC  Universal Product Code (UPC) symbology is the most commonly used bar code on consumer products in the USA and Canada. It is a fixed-length, numeric, continuous symbology that uses four element widths.

  • Page 16: Gs1 Databar

    PIVOT 8753 Smartphone Barcode Administration Guide  The barcode reader will automatically determine if the barcode is composite or not GS1 DataBar  GS1 DataBar is a high density 1D bar code designed to encode standard GS1 Composite/EAN item numbers - up to 14 digits - in a very small footprint.

  • Page 17: Micro Pdf 417

    PIVOT 8753 Smartphone Barcode Administration Guide  The Interleaved 2 of 5 symbology reading range normal.  The Interleaved 2 of 5 symbology reading tolerance is high. Micro PDF 417 (2D only)  Micro PDF417 is closely based on PDF417 but is more space efficient. It is used for applications that do not require the full data capacity of PDF417.

  • Page 18: Qr Code

    PIVOT 8753 Smartphone Barcode Administration Guide  Minimum length for Plessey Code is 3 characters. QR Code (2D only)  QR Code is a matrix symbology consisting of a square array of modules with a finder pattern located at three corners. A wide range of symbol sizes is supported along with four levels of error correction, and the symbology is noted for its high data density.

  • Page 19: Appendix A: Open Source Information

    A complete list of all open source software included in the Spectralink PIVOT smartphone, as well as related license and copyright information, is available at http://support.spectralink.com. You may also obtain the same information by contacting Spectralink by regular mail or email at the addresses listed at the bottom of this notice.
