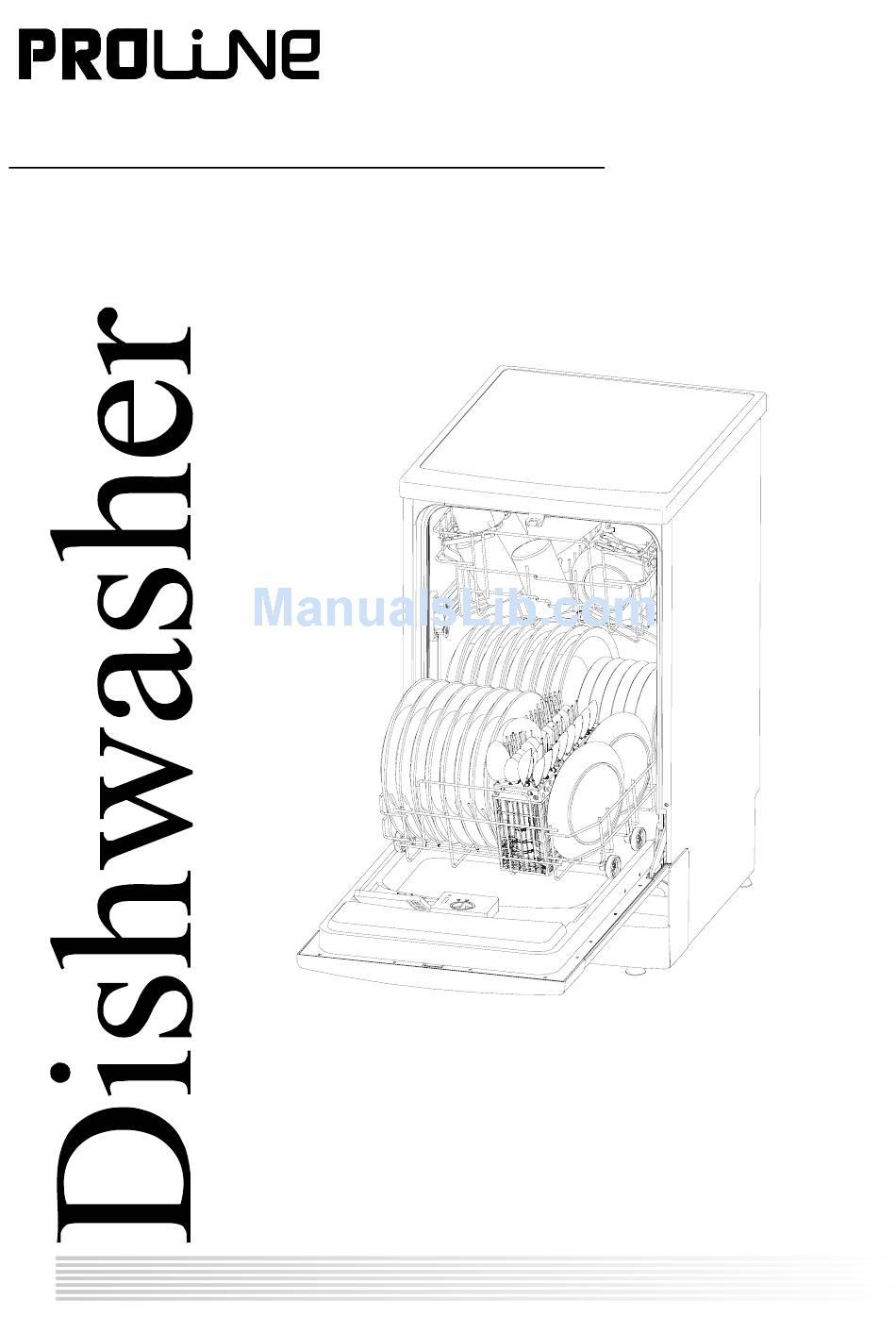

- Page 1 SDW800PW/S Instruction Manual 8 place settings...
-
Page 2: Table Of Contents
Dear C st mer, Control Panel...........3 Dishwasher Features........3 Read this User Informa tion carefully and keep it to refer to at a later date. A、 Water Softener..........4 B Loading the salt into the softener 、 ....5 ......5 C Fill the Rinse Aid Dispenser 、... - Page 3 • Do not sit on, or stand on the door or dish racks. • Do not touch the heating element immediately after use. • Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating.
- Page 4 Warning! Packaging material could be dangerous for children! For disposing of package and the appliance please go to a recycling centre. Therefore cut off the power supply cable . Cardboard packaging is manufactured from recycled paper and should be dis posed in the waste paper collection for recycling.
-
Page 5: Control Panel
For getting the best performance from your dishwasher,please read all operating instructions before using it for the first time. Start / Reset Rinse Aid Warning Light : Comes on when the ON/OFF Button: To turn on/off the power. rinse aid dispenser needs to be refilled . Power Light : Comes on when the ON/OFF Button Washing Program Selector : Turn the knob to is in the ON position. -
Page 6: A、 Water Softener
A. Set the water softener(See WATER SOFTENER below) B. Pour 1／2 litre of water inside the salt container and then fill with dishwasher salt C. Fill the rinse aid dispenser The water softener must be set manually, using the water hardness dial inside the softener container cover. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. -
Page 7: B Loading The Salt Into The Softener
The sal t container is locat ed beneath the lower rack and should be filled as foll ows: Atte ntion! Only use salt specifically designed for use in dishwa shers! All other t ypes of salt not spe ci fically designed for use in a dishwasher, e specially table salt, will damage the water softener. -
Page 8: Rinse Aid Dispenser
D (Rinse-Aid indicator) WHEN TO REFILL THE RINSE AID DISPENSER As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below. Full 3 / 4 full 1 / 2 full 1 / 4 full - Should refill to eliminate spotting Empty To open the dispenser, turn the cap to the "open"... -
Page 9: D Function Of Detergent
Concentrated Detergent Based on their chemical composition, dishwasher detergents can be split in two basic types: conventional, alkaline detergents wi th caustic components low alkaline concentrated detergents with natural enzymes The use of “normal” washing programmes in conjunction with concentrated detergents reduces pollution and is good for your dishes;... -
Page 10: How To Use The 3In1 Programme
FILLING THE DETERGENT DISPENSER. WHEN TO REFILL THE RINSE AID DISPENCER Fill the detergent dispenser with detergent. The marki ng indicates the amounts , as illustrated on right: The main wash cycle detergent placed , “MIN”means approximately 20g of detergent. The pre-wash cycle detergent placed , approximately 5g of detergent Please observe the manufacturers amounts and storage... - Page 11 Your dishwasher has a 3 in 1 program which needs no salt and rinse aid use only a THREE IN ONE tablet. This dishwasher comes with a 3 in 1 tablet container as an accessory. NOTE: Only the 3 in 1 program uses a 3 in 1 tablet. If using 3 in 1 tablet with other programs, the appliance will not give best performance.
-
Page 12: Atten Tion Befo Re O R After Loading The Dishwasher Rack
For best performance , follow these loading guidelines. Features and appearance of racks and cutlery baskets may vary from your model. Attention before or after Loading the Dishwasher Racks Scrape off any large amounts of leftover food. It is not necessary to rinse the dishes under running water. -
Page 13: Loading The Lower Rack
We recommend that you place large items which are most difficult to clean into the low er rack: pots, pans, lids, serving dishes and bowls, as shown in the diagram below. It is preferable to place serving dishes and lids on the side of the racks in order to avoi d blocking the rotation of the top spray arm. -
Page 14: Silverware Basket
Cutlery Basket Silverware should be placed in the cutlery basket with handles at the bottom: If the rack has side baskets, the spoon should be loaded individually into the appropriate slots, especially long utensils should be placed in the horizontal position at th e front of the upper rack. -
Page 15: Attention
shes and items of cutlery must not lie inside one another, or cover each othe r avoid damage to glasses, they must not touch Load large items which are most difficult to clean into the lower rack he upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups Attention! Long bladed knives stored in an upri ght position are a potential hazard! -
Page 16: Wash Cycle Table
Pre-wash(50℃) For the heaviest soiled loads, pre-wash such as pots,pans,casserole wash(70℃) dishes and dishes that have 4/20 g. rinse Intensive rinse been sitting with dried food rinse(55℃) on them for a while. drying For normally soiled loads, Pre-wash(50℃) wash(50℃) such as pots, plates,glasses Normal 4/20 g. -
Page 17: Change The Programme
PREMISE: You can modif the washing program, after the dishwasher has been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "... -
Page 18: Filtering System
The filter prevents larger remnants of food or other objects from getting inside the pump. This residue can occasionally clog up the filters. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter (Fine filter). Main filter Food and soil particles trapped by this filter are pulverized by a special jet on the lower spray arm and washed down the drain. -
Page 19: Cleaning The Spray Arms
Filter assembly For best performance and results, the filter assembly must be cleaned. The filter efficiently removes food particles from the wash water, allowing it to be reci rculated during the cycle. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. -
Page 20: Cleaning The Door
To clean the edge around the door, you should use only a soft warm, damp rag. To prevent penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind. Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will scratch the fini sh. - Page 21 ELECTRICAL CONNECTION (UK ONLY) For your safety please read the following information Warning: This appliance must be earthed. The appliance must be connected to a 220 -240 volts 50 cycle AC supply by means of a three pin socket, suitably earthed and should be protected by a 13 amp fuse in the plug.
-
Page 22: Water Connection
Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. -
Page 23: Water Outlet
Water Outlet Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water inlet hose is not kinked or squashed. Extension Hose If you need a drain hose extension, use a similar drain hose. It must be no longer than 4 metres;... -
Page 24: Before Calling For Service
Before Calling for Service Carefully read the charts on the following pages . Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Make sure the dishwasher is turned on and the door is Power supply is not turned on closed securely. -
Page 25: Error Indication
Combination of soft Use less detergent if you have soft water and select a water and too much shortest cycle to wash the glassware and to get them clean. detergent Tea or coffee stains using a solution of 1/2 cup of bleach and 3 cups warm water to remove the stains by hand. -
Page 26: Technical Information
Height : 850mm Width : 450mm Depth : 580mm Voltage connected Load : see rating label Water pressure: 0.04-1.0MPa Hot water connection : max 60 ℃ Power supply: see rating label Capacity: 8 Place settings... - Page 27 As such we urge you to follow the correct disposal procedure for your product and packaging materials. This will help conserve natural recourses and ensure that it is recycled in a manner that protects health and the environment. You must dispose of this product and its packaging according to local laws a nd regulations. Because this product contains electronic components, the product and its accessories must be disposed of separately from household waste when the product reaches its end of life.
